TSL3DInteractionCameraManager Class Reference

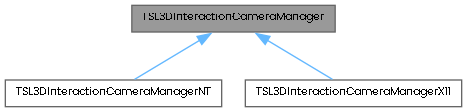

Inheritance diagram for TSL3DInteractionCameraManager:

Detailed Description

This helper class is used to allow the interaction modes to work in either in terms of lat/long/elevation of a look-at position or distance to a look-at position and elevation and rotation relative to the earth surface.

Typically, the mode sets the lat/long/elevation or elevation/rotation/range parameters and then calls the 'setCamera' method. This updates the camera orientation of the drawing surface. The 'getCamera' method may be called to force the camera manager to refresh its internal attributes based upon the current camera parameters of the drawing surface.

Deprecated

Deprecated as of MapLink 11.1. Advised to use MapLink Earth SDK instead.

Public Member Functions
virtual	~TSL3DInteractionCameraManager ()
void	setCamera ()
bool	zoom (double percent, bool zoom_in)
void	altitude (double alt)
double	altitude ()
void	getCamera ()
double	arcElevation () const
void	arcElevation (double value)
double	arcRotation () const
void	arcRotation (double value)
TSL3DDrawingSurface *	drawingSurface ()
double	latitude () const
void	latitude (double value)
double	longitude () const
void	longitude (double value)
double	range () const
void	range (double value)

Protected Member Functions
	TSL3DInteractionCameraManager (TSL3DDrawingSurface *ds, TSL3DInteractionModeManager *manager)
virtual bool	getDUExtent (int *x1, int *y1, int *x2, int *y2)=0

Protected Attributes
double	m_arcElevation
double	m_arcRotation
double	m_range
double	m_latitude
double	m_longitude
double	m_altitude
TSL3DInteractionModeManager *	m_manager

Constructor & Destructor Documentation

~TSL3DInteractionCameraManager()

virtual TSL3DInteractionCameraManager::~TSL3DInteractionCameraManager ( )

virtual

Destructor for camera manager

TSL3DInteractionCameraManager()

TSL3DInteractionCameraManager::TSL3DInteractionCameraManager ( TSL3DDrawingSurface * ds, TSL3DInteractionModeManager * manager )

protected

Internal only methods - provided by derive class

Member Function Documentation

altitude() [1/2]

double TSL3DInteractionCameraManager::altitude

(

)

Get the altitude of the look-at position.

altitude() [2/2]

void TSL3DInteractionCameraManager::altitude

(

double

alt

)

Set the altitude of the look-at position.

arcElevation() [1/2]

double TSL3DInteractionCameraManager::arcElevation ( ) const

inline

Query elevation of the camera in degrees, relative to the horizontal horizon, +ve is up.

arcElevation() [2/2]

void TSL3DInteractionCameraManager::arcElevation ( double value )

inline

Set elevation of the camera in degrees, relative to the horizontal horizon, +ve is up.

arcRotation() [1/2]

double TSL3DInteractionCameraManager::arcRotation ( ) const

inline

Query rotation of the camera in degrees, relative to north, +ve is clockwise.

arcRotation() [2/2]

void TSL3DInteractionCameraManager::arcRotation ( double value )

inline

Set rotation of the camera in degrees, relative to north, +ve is clockwise.

drawingSurface()

TSL3DDrawingSurface * TSL3DInteractionCameraManager::drawingSurface ( )

inline

Query the drawing surface associated with the camera manager.

getCamera()

void TSL3DInteractionCameraManager::getCamera

(

)

getDUExtent()

virtual bool TSL3DInteractionCameraManager::getDUExtent ( int * x1, int * y1, int * x2, int * y2 )

protectedpure virtual

Implemented in TSL3DInteractionCameraManagerNT, and TSL3DInteractionCameraManagerX11.

latitude() [1/2]

double TSL3DInteractionCameraManager::latitude ( ) const

inline

Query latitude of the look-at position in degrees.

latitude() [2/2]

void TSL3DInteractionCameraManager::latitude ( double value )

inline

Set latitude of the look-at position in degrees.

longitude() [1/2]

double TSL3DInteractionCameraManager::longitude ( ) const

inline

Query longitude of the look-at position in degrees.

longitude() [2/2]

void TSL3DInteractionCameraManager::longitude ( double value )

inline

Set longitude of the look-at position in degrees.

range() [1/2]

double TSL3DInteractionCameraManager::range ( ) const

inline

Query range to the look-at position in metres.

range() [2/2]

void TSL3DInteractionCameraManager::range ( double value )

inline

Query range to the look-at position in metres.

setCamera()

void TSL3DInteractionCameraManager::setCamera

(

)

Triggers the Camera Manager to apply the current properties to the associated drawing surface.

zoom()

bool TSL3DInteractionCameraManager::zoom	(	double	percent,
		bool	zoom_in )

Zoom the current view in or out, adjusting the range to the look-at position.

Parameters

percent	Percentage of current range to zoom
zoom_in	True if zoom in, false if zoom out.

Returns

true if range successfully changed.

Member Data Documentation

m_altitude

double TSL3DInteractionCameraManager::m_altitude

protected

m_arcElevation

double TSL3DInteractionCameraManager::m_arcElevation

protected

Internal storage for the elevation of the camera orientation. 0 is horizontal relative to the earth's surface at the camera position, +ve up.

m_arcRotation

double TSL3DInteractionCameraManager::m_arcRotation

protected

Internal storage for the rotation of the camera orientation. 0 is horizontal relative pointing North, +ve is clockwise. It is a bearing.

m_latitude

double TSL3DInteractionCameraManager::m_latitude

protected

Internal storage for the latitude of the look-at position.

m_longitude

double TSL3DInteractionCameraManager::m_longitude

protected

Internal storage for the latitude of the look-at position.

m_manager

TSL3DInteractionModeManager* TSL3DInteractionCameraManager::m_manager

protected

m_range

double TSL3DInteractionCameraManager::m_range

protected

Internal storage for the range to the look-at point, in metres.
