TSLEXGeographicExtent Class Reference

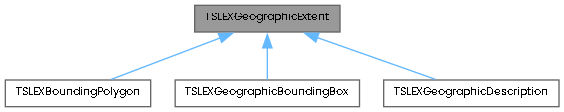

Inheritance diagram for TSLEXGeographicExtent:

Detailed Description

Geographic area of the dataset

Public Member Functions
	TSLEXGeographicExtent ()
	TSLEXGeographicExtent (const TSLEXGeographicExtent &right)
virtual	~TSLEXGeographicExtent ()=0
TSLEXGeographicExtent &	operator= (const TSLEXGeographicExtent &right)
void	extentTypeCode (TSLBoolean input)
virtual TSLEXGeographicExtent *	clone () const =0
virtual TSLMD_RTTI const *	classInfo () const
bool	isKindOf (char const *className) const
void	appendExtendedInformation (const char *key, const char *value)
virtual bool	serialize (void *outputStreamOfXML, int indentation=-1, bool isRootHandler=true) const
TSLBoolean	extentTypeCode () const
const TSLCharacterString *	objectIdentifier () const
TSLCharacterString *	objectIdentifier ()
const TSLCharacterString *	extendedInformation () const
TSLCharacterString *	extendedInformation ()

Static Public Member Functions
static TSLCharacterString *	getObjectIdentifier ()

Static Public Attributes
static TSLMD_RTTI	m_classInfo

Protected Attributes
TSLCharacterString *	m_extendedInformation
TSLCharacterString *	m_objectIdentifier

Constructor & Destructor Documentation

TSLEXGeographicExtent() [1/2]

TSLEXGeographicExtent::TSLEXGeographicExtent

(

)

The default constructor.

TSLEXGeographicExtent() [2/2]

TSLEXGeographicExtent::TSLEXGeographicExtent

(

const TSLEXGeographicExtent &

right

)

The copy constructor.

~TSLEXGeographicExtent()

virtual TSLEXGeographicExtent::~TSLEXGeographicExtent ( )

pure virtual

The destructor.

Member Function Documentation

appendExtendedInformation()

void TSLEXGeographicExtent::appendExtendedInformation	(	const char *	key,
		const char *	value )

classInfo()

virtual TSLMD_RTTI const * TSLEXGeographicExtent::classInfo ( ) const

virtual

Reimplemented in TSLEXBoundingPolygon, and TSLEXGeographicBoundingBox.

clone()

virtual TSLEXGeographicExtent * TSLEXGeographicExtent::clone ( ) const

pure virtual

Clone method for derived or derived from classes. Creates object on the heap, so the pointer must be deleted

Implemented in TSLEXBoundingPolygon, TSLEXGeographicBoundingBox, and TSLEXGeographicDescription.

extendedInformation() [1/2]

TSLCharacterString * TSLEXGeographicExtent::extendedInformation ( )

inline

extendedInformation() [2/2]

const TSLCharacterString * TSLEXGeographicExtent::extendedInformation ( ) const

inline

Accessors for the extendedInformation attribute.

extentTypeCode() [1/2]

TSLBoolean TSLEXGeographicExtent::extentTypeCode ( ) const

inline

Returns the extentTypeCode attribute.

extentTypeCode() [2/2]

void TSLEXGeographicExtent::extentTypeCode

(

TSLBoolean

input

)

Sets the extentTypeCode attribute. TSLBooleanNULL is valid.

getObjectIdentifier()

TSLCharacterString * TSLEXGeographicExtent::getObjectIdentifier ( )

static

isKindOf()

bool TSLEXGeographicExtent::isKindOf

(

char const *

className

)

const

Return true if this class is derived from the class named by className.

Parameters

className

the name of the class we are testing against.

objectIdentifier() [1/2]

TSLCharacterString * TSLEXGeographicExtent::objectIdentifier ( )

inline

objectIdentifier() [2/2]

const TSLCharacterString * TSLEXGeographicExtent::objectIdentifier ( ) const

inline

Accessors for the objectIdentifier attribute. Note that objectIdentifier has no setter

operator=()

TSLEXGeographicExtent & TSLEXGeographicExtent::operator=

(

const TSLEXGeographicExtent &

right

)

Assignment operator.

serialize()

virtual bool TSLEXGeographicExtent::serialize ( void * outputStreamOfXML, int indentation = -1, bool isRootHandler = true ) const

virtual

Reimplemented in TSLEXBoundingPolygon, TSLEXGeographicBoundingBox, and TSLEXGeographicDescription.

Member Data Documentation

m_classInfo

TSLMD_RTTI TSLEXGeographicExtent::m_classInfo

static

m_extendedInformation

TSLCharacterString* TSLEXGeographicExtent::m_extendedInformation

protected

m_objectIdentifier

TSLCharacterString* TSLEXGeographicExtent::m_objectIdentifier

protected
