TSLMDGridSpatialRepresentation Class Reference

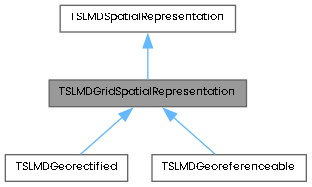

Inheritance diagram for TSLMDGridSpatialRepresentation:

Detailed Description

Types and numbers of raster spatial objects in the dataset

Public Member Functions
	TSLMDGridSpatialRepresentation ()
	TSLMDGridSpatialRepresentation (const TSLMDGridSpatialRepresentation &right)
virtual	~TSLMDGridSpatialRepresentation ()
TSLMDGridSpatialRepresentation &	operator= (const TSLMDGridSpatialRepresentation &right)
void	numberOfDimensions (int input)
bool	insertAxisDimensionProperties (const TSLMDDimension &obj, int position=-1)
bool	removeAxisDimensionProperties (int position=-1)
void	cellGeometry (TSLMDCellGeometryCode input)
void	transformationParameterAvailability (const TSLBoolean &input)
virtual TSLMDGridSpatialRepresentation *	clone () const
virtual bool	serialize (void *outputStreamOfXML, int indentation=-1, bool isRootHandler=true) const
int	numberOfDimensions () const
const TSLMDCollection< TSLMDDimension > &	axisDimensionProperties () const
TSLMDCollection< TSLMDDimension > &	axisDimensionProperties ()
const TSLMDDimension *	axisDimensionPropertiesAt (int position) const
TSLMDDimension *	axisDimensionPropertiesAt (int position)
TSLMDCellGeometryCode	cellGeometry () const
TSLBoolean	transformationParameterAvailability () const
Public Member Functions inherited from TSLMDSpatialRepresentation
	TSLMDSpatialRepresentation ()
	TSLMDSpatialRepresentation (const TSLMDSpatialRepresentation &right)
virtual	~TSLMDSpatialRepresentation ()=0
TSLMDSpatialRepresentation &	operator= (const TSLMDSpatialRepresentation &right)

Static Public Member Functions
static TSLMDGridSpatialRepresentation *	create ()

Constructor & Destructor Documentation

TSLMDGridSpatialRepresentation() [1/2]

TSLMDGridSpatialRepresentation::TSLMDGridSpatialRepresentation

(

)

The default constructor.

TSLMDGridSpatialRepresentation() [2/2]

TSLMDGridSpatialRepresentation::TSLMDGridSpatialRepresentation

(

const TSLMDGridSpatialRepresentation &

right

)

The copy constructor.

~TSLMDGridSpatialRepresentation()

virtual TSLMDGridSpatialRepresentation::~TSLMDGridSpatialRepresentation ( )

virtual

The destructor.

Member Function Documentation

axisDimensionProperties() [1/2]

TSLMDCollection< TSLMDDimension > & TSLMDGridSpatialRepresentation::axisDimensionProperties ( )

inline

Returns the axisDimensionProperties at the specified position.

axisDimensionProperties() [2/2]

const TSLMDCollection< TSLMDDimension > & TSLMDGridSpatialRepresentation::axisDimensionProperties ( ) const

inline

Returns the axisDimensionProperties at the specified position.

axisDimensionPropertiesAt() [1/2]

TSLMDDimension * TSLMDGridSpatialRepresentation::axisDimensionPropertiesAt ( int position )

inline

Sets the axisDimensionProperties attribute.

axisDimensionPropertiesAt() [2/2]

const TSLMDDimension * TSLMDGridSpatialRepresentation::axisDimensionPropertiesAt ( int position ) const

inline

Sets the axisDimensionProperties attribute.

cellGeometry() [1/2]

TSLMDCellGeometryCode TSLMDGridSpatialRepresentation::cellGeometry ( ) const

inline

Returns the cellGeometry attribute. Returns TSLMDCellGeometryCodeNULL if uninitialised.

cellGeometry() [2/2]

void TSLMDGridSpatialRepresentation::cellGeometry

(

TSLMDCellGeometryCode

input

)

Sets the cellGeometry attribute. TSLMDCellGeometryCodeNULL is not valid.

clone()

virtual TSLMDGridSpatialRepresentation * TSLMDGridSpatialRepresentation::clone ( ) const

virtual

Clone method for derived or derived from classes. Creates object on the heap, so the pointer must be deleted

Implements TSLMDSpatialRepresentation.

Reimplemented in TSLMDGeorectified, and TSLMDGeoreferenceable.

create()

static TSLMDGridSpatialRepresentation * TSLMDGridSpatialRepresentation::create ( )

static

insertAxisDimensionProperties()

bool TSLMDGridSpatialRepresentation::insertAxisDimensionProperties	(	const TSLMDDimension &	obj,
		int	position = -1 )

Inserts the given TSLCICitation at the given position. If the given position is not provided or is not in range, the TSLCICitation is appended.

numberOfDimensions() [1/2]

int TSLMDGridSpatialRepresentation::numberOfDimensions ( ) const

inline

Returns the numberOfDimensions attribute.

numberOfDimensions() [2/2]

void TSLMDGridSpatialRepresentation::numberOfDimensions

(

int

input

)

Sets the numberOfDimensions attribute.

operator=()

TSLMDGridSpatialRepresentation & TSLMDGridSpatialRepresentation::operator=

(

const TSLMDGridSpatialRepresentation &

right

)

Assignment operator.

removeAxisDimensionProperties()

bool TSLMDGridSpatialRepresentation::removeAxisDimensionProperties

(

int

position = -1

)

Removes a TSLCICitation from the given position. If the given position is not provided or is not in range, the last TSLCICitation is removed.

serialize()

virtual bool TSLMDGridSpatialRepresentation::serialize ( void * outputStreamOfXML, int indentation = -1, bool isRootHandler = true ) const

virtual

Reimplemented from TSLMDSpatialRepresentation.

Reimplemented in TSLMDGeorectified, and TSLMDGeoreferenceable.

transformationParameterAvailability() [1/2]

TSLBoolean TSLMDGridSpatialRepresentation::transformationParameterAvailability ( ) const

inline

Returns the transformationParameterAvailability attribute. Returns TSLBoolean NULL if uninitialised

transformationParameterAvailability() [2/2]

void TSLMDGridSpatialRepresentation::transformationParameterAvailability

(

const TSLBoolean &

input

)

Sets the transformationParameterAvailability attribute. TSLBooleanNULL is not valid
