TSLMeasure Class Reference

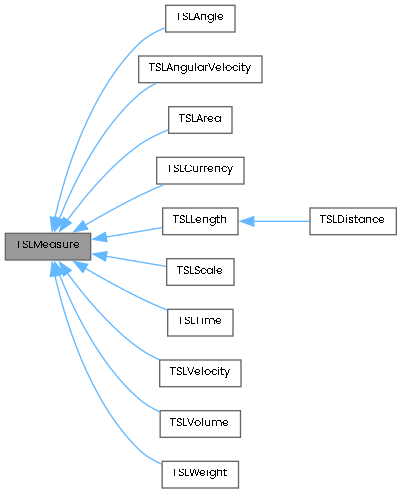

Inheritance diagram for TSLMeasure:

Detailed Description

The result from performing the act or process of ascertaining the extent, dimensions, or quantity of some entity. A measure is always associated to a unit of measure. Ratio measures where the two base measures are in the same units (often considered unit-less) should be associated to UnitOfMeasure (same meter/meter for map scale) so that conversions to non-unitless ratios can be accomplished (such as miles/inch).

Public Member Functions
	TSLMeasure ()
	TSLMeasure (const TSLMeasure &right)
virtual	~TSLMeasure ()
TSLMeasure &	operator= (const TSLMeasure &right)
void	Uom (TSLUnitOfMeasure *val, bool assumeOwnership=true)
virtual TSLMeasure *	clone () const
virtual bool	serialize (void *outputStreamOfXML, int indentation=-1, bool isRootHandler=true) const
double	value () const
void	value (double input)
const TSLUnitOfMeasure *	Uom () const
TSLUnitOfMeasure *	Uom ()

Static Public Member Functions
static TSLMeasure *	create ()

Constructor & Destructor Documentation

TSLMeasure() [1/2]

TSLMeasure::TSLMeasure

(

)

The default constructor.

TSLMeasure() [2/2]

TSLMeasure::TSLMeasure

(

const TSLMeasure &

right

)

The copy constructor.

~TSLMeasure()

virtual TSLMeasure::~TSLMeasure ( )

virtual

The destructor.

Member Function Documentation

clone()

virtual TSLMeasure * TSLMeasure::clone ( ) const

virtual

Clone method for derived or derived from classes. Creates object on the heap, so the pointer must be deleted

Reimplemented in TSLAngle, TSLAngularVelocity, TSLArea, TSLCurrency, TSLDistance, TSLLength, TSLScale, TSLTime, TSLVelocity, TSLVolume, and TSLWeight.

create()

static TSLMeasure * TSLMeasure::create ( )

static

operator=()

TSLMeasure & TSLMeasure::operator=

(

const TSLMeasure &

right

)

Assignment operator.

serialize()

virtual bool TSLMeasure::serialize ( void * outputStreamOfXML, int indentation = -1, bool isRootHandler = true ) const

virtual

Reimplemented in TSLAngle, TSLAngularVelocity, TSLArea, TSLCurrency, TSLDistance, TSLLength, TSLScale, TSLTime, TSLVelocity, TSLVolume, and TSLWeight.

Uom() [1/3]

TSLUnitOfMeasure * TSLMeasure::Uom ( )

inline

Uom() [2/3]

const TSLUnitOfMeasure * TSLMeasure::Uom ( ) const

inline

Uom() [3/3]

void TSLMeasure::Uom	(	TSLUnitOfMeasure *	val,
		bool	assumeOwnership = true )

value() [1/2]

double TSLMeasure::value ( ) const

inline

Returns the value attribute.

value() [2/2]

void TSLMeasure::value ( double input )

inline

Sets the value attribute.
