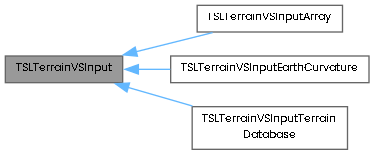

Inheritance diagram for TSLTerrainVSInput:

[legend]

Detailed Description

The interface to an input data object, for use by the TSLTerrainVSAlgorithm class.

An application may inherit from this object, in order to use application-specfic input data.

This object is reference counted. If the application is finished with it, the dec() method should be called.

Public Member Functions
virtual TSLMUExtent	queryExtent () const

virtual bool	getData (unsigned int x, unsigned int y, double &value, const TSLTerrainVSAlgorithm::Parameters &params)=0

virtual unsigned int	width () const

virtual unsigned int	height () const

void	inc ()

void	dec ()

virtual const TSLCoordinateSystem *	coordinateSystem ()

virtual bool	offsetToLatLong (unsigned int x, unsigned int y, double &lat, double &lon)

virtual bool	offsetToMU (unsigned int x, unsigned int y, double &muX, double &muY)

virtual bool	MUToOffset (double muX, double muY, unsigned int &x, unsigned int &y)

virtual bool	LatLongToOffset (double lat, double lon, unsigned int &x, unsigned int &y)

virtual double	postDistanceX ()

virtual double	postDistanceY ()

virtual bool	valid (const TSLTerrainVSAlgorithm::Parameters &params) const =0

virtual void	processFinished ()=0

Protected Member Functions
	TSLTerrainVSInput (unsigned int width, unsigned int height, TSLMUExtent extent, TSLCoordinateSystem *coordinateSystem)

	TSLTerrainVSInput ()

	TSLTerrainVSInput (const TSLTerrainVSInput &other)

virtual	~TSLTerrainVSInput ()

Protected Attributes
unsigned int	m_width

unsigned int	m_height

TSLCoordinateSystem *	m_coordinateSystem

double	m_postDistanceX

double	m_postDistanceY

TSLMUExtent	m_extent

Constructor & Destructor Documentation

◆ TSLTerrainVSInput() [1/3]

TSLTerrainVSInput::TSLTerrainVSInput	(	unsigned int	width,
		unsigned int	height,
		TSLMUExtent	extent,
		TSLCoordinateSystem *	coordinateSystem )

protected

Constructor.

Initialises the base parameters of the input object.

Parameters

width	The number of horizontal elements in the input data array.
height	The number of vertical elements in the input data array.
extent	The data extent, in map units.
coordinateSystem	The coordinate system of the data.

◆ TSLTerrainVSInput() [2/3]

TSLTerrainVSInput::TSLTerrainVSInput ( )

protected

◆ TSLTerrainVSInput() [3/3]

TSLTerrainVSInput::TSLTerrainVSInput ( const TSLTerrainVSInput & other )

protected

◆ ~TSLTerrainVSInput()

virtual TSLTerrainVSInput::~TSLTerrainVSInput ( )

protectedvirtual

Member Function Documentation

◆ coordinateSystem()

virtual const TSLCoordinateSystem * TSLTerrainVSInput::coordinateSystem ( )

virtual

Query the coordinate system of the input data.

This object must provide a coordinate system in order for viewshed operations, and any height adjustment calculations to be valid.

Reimplemented in TSLTerrainVSInputEarthCurvature, and TSLTerrainVSInputTerrainDatabase.

◆ dec()

void TSLTerrainVSInput::dec ( )

Decrement this object's reference count.

◆ getData()

virtual bool TSLTerrainVSInput::getData	(	unsigned int	x,
		unsigned int	y,
		double &	value,
		const TSLTerrainVSAlgorithm::Parameters &	params )

pure virtual

Query a height value from the input data.

If the valid() method has returned false, this method will never be called by the viewshed algorithm.

The location given to this method is specified as an offset, from the bottom-left of the data.

This method should set the value parameter to the requested height value, and return true. If there is no height data available for the requested location this method should return false.

Parameters

x	The x offset to query
y	The y offset to query
value	Storage for the height value
params	The parameters of the viewshed operation

Implemented in TSLTerrainVSInputArray, TSLTerrainVSInputEarthCurvature, and TSLTerrainVSInputTerrainDatabase.

◆ height()

virtual unsigned int TSLTerrainVSInput::height ( ) const

virtual

Query the height of the input data

Reimplemented in TSLTerrainVSInputEarthCurvature.

◆ inc()

void TSLTerrainVSInput::inc ( )

Increment this object's reference count.

◆ LatLongToOffset()

virtual bool TSLTerrainVSInput::LatLongToOffset	(	double	lat,
		double	lon,
		unsigned int &	x,
		unsigned int &	y )

virtual

Query the X/Y offset which corresponds to the provided Latitude/Longitude.

The base-class implementation of this method will call LatLongToMU on the input object's coordinate system.

Parameters

lat	The latitude of the point to convert
lon	The logitude of the point to convert
x	Storage for the returned x offset
y	Storage for the returned y offset

Returns: true if the point was converted, or false if an error occurred. false will be returned if the calculated offset is outside the input objects extent.

Reimplemented in TSLTerrainVSInputEarthCurvature.

◆ MUToOffset()

virtual bool TSLTerrainVSInput::MUToOffset	(	double	muX,
		double	muY,
		unsigned int &	x,
		unsigned int &	y )

virtual

Query the X/Y offset which corresponds to the provided map unit location

Parameters

muX	The MU X coordinate of the point to convert
muY	The MU Y coordinate of the point to convert
x	Storage for the returned x offset
y	Storage for the returned y offset

Returns: true if the point was converted, or false if an error occurred. false will be returned if the calculated offset is outside the input objects extent.

Reimplemented in TSLTerrainVSInputEarthCurvature.

◆ offsetToLatLong()

virtual bool TSLTerrainVSInput::offsetToLatLong	(	unsigned int	x,
		unsigned int	y,
		double &	lat,
		double &	lon )

virtual

Query the geographic location of the provided X/Y offset, in Latitude/Longitude.

The base-class implementation of this method will call MUToLatLong on the input object's coordinate system.

Parameters

x	The X coordinate of the point to convert
y	The Y coordinate of the point to convert
lat	Storage for the returned latitude
lon	Storage for the returned longitude

Returns: true if the point was converted, or false if an error occurred.

Reimplemented in TSLTerrainVSInputEarthCurvature.

◆ offsetToMU()

virtual bool TSLTerrainVSInput::offsetToMU	(	unsigned int	x,
		unsigned int	y,
		double &	muX,
		double &	muY )

virtual

Query the geographic location of the provided X/Y offset, in map units.

Parameters

x	The X coordinate of the point to convert
y	The Y coordinate of the point to convert
muX	Storage for the returned MU X value
muY	Storage for the returned MU Y value

Reimplemented in TSLTerrainVSInputEarthCurvature.

◆ postDistanceX()

virtual double TSLTerrainVSInput::postDistanceX ( )

virtual

Query the horizontal post-distance of the input data.

This is the distance between sample points, in map units

Reimplemented in TSLTerrainVSInputEarthCurvature.

◆ postDistanceY()

virtual double TSLTerrainVSInput::postDistanceY ( )

virtual

Query the vertical post-distance of the input data.

This is the distance between sample points, in map units

Reimplemented in TSLTerrainVSInputEarthCurvature.

◆ processFinished()

virtual void TSLTerrainVSInput::processFinished ( )

pure virtual

This method will be called by the viewshed algorithm when the viewshed calculation has finished.

If the viewshed algorithm is multithreaded, this method will be called for each of the calculation threads.

This method is provided as an opportunity for the input object to release any per-thread or per-calculation resources, and to reset any internal state required for another viewshed calculation.

Implemented in TSLTerrainVSInputArray, TSLTerrainVSInputEarthCurvature, and TSLTerrainVSInputTerrainDatabase.

◆ queryExtent()

virtual TSLMUExtent TSLTerrainVSInput::queryExtent ( ) const

virtual

Query the extent of the input data.

The units of this extent are defined by this object's coordinate system.

Returns the input object's extent.

Reimplemented in TSLTerrainVSInputEarthCurvature.

◆ valid()

virtual bool TSLTerrainVSInput::valid ( const TSLTerrainVSAlgorithm::Parameters & params ) const

pure virtual

This method will be called by the viewshed algorithm, to provide the input object with a mechanism for initialisation, and an opportunity to terminate the viewshed calculation if required.

The extent provided by params.m_viewShedMUExtent should not be considered valid during this call, as it will not have been fully calculated.

Parameters

params The parameters of the viewshed operation.

Returns: If this method true, the viewshed calculation will proceed. If false the viewshed calculation will terminate, and an error will be logged on the error stack.

Implemented in TSLTerrainVSInputArray, TSLTerrainVSInputEarthCurvature, and TSLTerrainVSInputTerrainDatabase.

◆ width()

virtual unsigned int TSLTerrainVSInput::width ( ) const

virtual

Query the width of the input data

Reimplemented in TSLTerrainVSInputEarthCurvature.

Member Data Documentation

◆ m_coordinateSystem

TSLCoordinateSystem* TSLTerrainVSInput::m_coordinateSystem

protected

◆ m_extent

TSLMUExtent TSLTerrainVSInput::m_extent

protected

The Map-Unit extent of the input object.

The units of this extent are defined by the source data coordinate system.

◆ m_height

unsigned int TSLTerrainVSInput::m_height

protected

The number of vertical elements in the input data.

◆ m_postDistanceX

double TSLTerrainVSInput::m_postDistanceX

protected

The horizontal distance between posts, in the units of the terrain data.

◆ m_postDistanceY

double TSLTerrainVSInput::m_postDistanceY

protected

The horizontal distance between posts, in the units of the terrain data.

◆ m_width

unsigned int TSLTerrainVSInput::m_width

protected

Data Members for Class Attributes The number of horizontal elements in the input data.
