TSLWMSGetMapRequestBase Class Reference

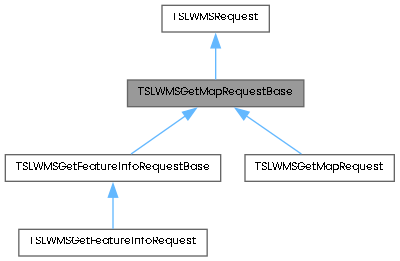

Inheritance diagram for TSLWMSGetMapRequestBase:

Detailed Description

Abstract base class of GetMap requests.

Public Member Functions
const TSLWMSBoundingBox &	boundingBox () const
int	height () const
int	width () const
int	version () const
	Queries the requested version of the WMS response. Examples: (TSLWMSVersionUnsupported, TSLWMSVersion_1_0_0, TSLWMSVersion_1_1_0, TSLWMSVersion_1_1_1, TSLWMSVersion_1_3_0 ).
bool	transparent () const
Public Member Functions inherited from TSLWMSRequest
const char *	address () const
const TSLWMSRequestDimension *	getDimensionAt (int index) const
int	noOfDimensions () const

Protected Member Functions
	TSLWMSGetMapRequestBase ()
	~TSLWMSGetMapRequestBase ()
Protected Member Functions inherited from TSLWMSRequest
	TSLWMSRequest ()
	~TSLWMSRequest ()

Constructor & Destructor Documentation

TSLWMSGetMapRequestBase()

TSLWMSGetMapRequestBase::TSLWMSGetMapRequestBase ( )

protected

~TSLWMSGetMapRequestBase()

TSLWMSGetMapRequestBase::~TSLWMSGetMapRequestBase ( )

protected

Member Function Documentation

boundingBox()

const TSLWMSBoundingBox & TSLWMSGetMapRequestBase::boundingBox

(

)

const

Queries the bounding box of the request.

height()

int TSLWMSGetMapRequestBase::height

(

)

const

Queries the requested height of the response.

transparent()

bool TSLWMSGetMapRequestBase::transparent

(

)

const

Queries the requested transparent of the response.

version()

int TSLWMSGetMapRequestBase::version

(

)

const

Queries the requested version of the WMS response. Examples: (TSLWMSVersionUnsupported, TSLWMSVersion_1_0_0, TSLWMSVersion_1_1_0, TSLWMSVersion_1_1_1, TSLWMSVersion_1_3_0 ).

width()

int TSLWMSGetMapRequestBase::width

(

)

const

Queries the requested width of the response.
