envitia::maplink::earth::Vec3 Class Reference

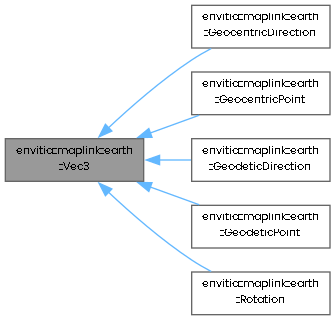

Inheritance diagram for envitia::maplink::earth::Vec3:

Detailed Description

A vector in 3D space

This class is used to specify positions and directions within the MapLink 3D SDK

This class does not define a particular unit itself, please refer to the documentation of classes which use Vec3.

Public Member Functions
virtual	~Vec3 ()
	Destructor.
double	x () const
	Get the x component of the vector.
double	y () const
	Get the y component of the vector.
double	z () const
	Get the z component of the vector.
void	x (double v)
	Set the x component of the vector.
void	y (double v)
	Set the y component of the vector.
void	z (double v)
	Set the z component of the vector.
double	length () const
	Get the length of the vector.
void	normalise ()

Protected Member Functions
	Vec3 ()
	Constructor.
	Vec3 (double x, double y, double z)
	Constructor.
	Vec3 (const Vec3 &other)
	Copy Constructor.
bool	operator== (const Vec3 &v) const
	Equality operator.
bool	operator!= (const Vec3 &v) const
	Inequality operator.
bool	operator< (const Vec3 &v) const
	Less than operator.
const Vec3	operator* (const double &v) const
	Multiply the vector by a scalar value.
Vec3	operator*= (const double &v)
	Multiply the vector by a scalar value.
const Vec3	operator/ (const double &v) const
	Divide the vector by a scalar value.
Vec3	operator/= (const double &v)
	Divide the vector by a scalar value.
const Vec3	operator+ (const Vec3 &v) const
	Addition operator.
Vec3	operator+= (const Vec3 &v)
	Addition operator.
const Vec3	operator- (const Vec3 &v) const
	Subtraction operator.
Vec3	operator-= (const Vec3 &v)
	Subtraction operator.
double	operator* (const Vec3 &v) const
const Vec3	operator^ (const Vec3 &v) const

Protected Attributes
double	m_v [3]

Constructor & Destructor Documentation

~Vec3()

virtual envitia::maplink::earth::Vec3::~Vec3 ( )

virtual

Destructor.

Vec3() [1/3]

envitia::maplink::earth::Vec3::Vec3 ( )

protected

Constructor.

Vec3() [2/3]

envitia::maplink::earth::Vec3::Vec3 ( double x, double y, double z )

protected

Constructor.

Vec3() [3/3]

envitia::maplink::earth::Vec3::Vec3 ( const Vec3 & other )

protected

Copy Constructor.

Member Function Documentation

length()

double envitia::maplink::earth::Vec3::length

(

)

const

Get the length of the vector.

normalise()

void envitia::maplink::earth::Vec3::normalise

(

)

Normalise the vector

The vector will be modified in order to set the length to 1.0.

operator!=()

bool envitia::maplink::earth::Vec3::operator!= ( const Vec3 & v ) const

protected

Inequality operator.

operator*() [1/2]

const Vec3 envitia::maplink::earth::Vec3::operator* ( const double & v ) const

protected

Multiply the vector by a scalar value.

operator*() [2/2]

double envitia::maplink::earth::Vec3::operator* ( const Vec3 & v ) const

protected

Calculate the dot product with another vector

Parameters

v	The vector to perform a dot product against

Returns

The dot product (this . v)

operator*=()

Vec3 envitia::maplink::earth::Vec3::operator*= ( const double & v )

protected

Multiply the vector by a scalar value.

operator+()

const Vec3 envitia::maplink::earth::Vec3::operator+ ( const Vec3 & v ) const

protected

Addition operator.

operator+=()

Vec3 envitia::maplink::earth::Vec3::operator+= ( const Vec3 & v )

protected

Addition operator.

operator-()

const Vec3 envitia::maplink::earth::Vec3::operator- ( const Vec3 & v ) const

protected

Subtraction operator.

operator-=()

Vec3 envitia::maplink::earth::Vec3::operator-= ( const Vec3 & v )

protected

Subtraction operator.

operator/()

const Vec3 envitia::maplink::earth::Vec3::operator/ ( const double & v ) const

protected

Divide the vector by a scalar value.

operator/=()

Vec3 envitia::maplink::earth::Vec3::operator/= ( const double & v )

protected

Divide the vector by a scalar value.

operator<()

bool envitia::maplink::earth::Vec3::operator< ( const Vec3 & v ) const

protected

Less than operator.

operator==()

bool envitia::maplink::earth::Vec3::operator== ( const Vec3 & v ) const

protected

Equality operator.

operator^()

const Vec3 envitia::maplink::earth::Vec3::operator^ ( const Vec3 & v ) const

protected

Calculate the cross product with another vector

Parameters

v	The vector to perform a cross product against

Returns

The cross product (this x v)

x() [1/2]

double envitia::maplink::earth::Vec3::x

(

)

const

Get the x component of the vector.

x() [2/2]

void envitia::maplink::earth::Vec3::x

(

double

v

)

Set the x component of the vector.

y() [1/2]

double envitia::maplink::earth::Vec3::y

(

)

const

Get the y component of the vector.

y() [2/2]

void envitia::maplink::earth::Vec3::y

(

double

v

)

Set the y component of the vector.

z() [1/2]

double envitia::maplink::earth::Vec3::z

(

)

const

Get the z component of the vector.

z() [2/2]

void envitia::maplink::earth::Vec3::z

(

double

v

)

Set the z component of the vector.

Member Data Documentation

m_v

double envitia::maplink::earth::Vec3::m_v[3]

protected
