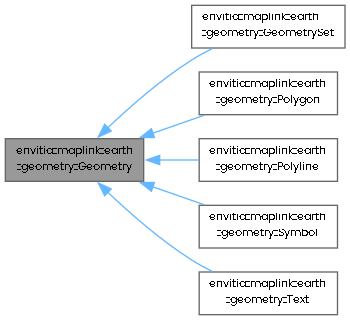

Inheritance diagram for envitia::maplink::earth::geometry::Geometry:

[legend]

Detailed Description

The base class of the Geometry hierarchy

Each instance of the Geometry class represents a primitive, which may be displayed within the surface. Geometry will be displayed based on a Style, which is configured on the Surface3D.

Public Types
enum	GeometryType { GeometryTypePolyline , GeometryTypePolygon , GeometryTypeSymbol , GeometryTypeText , GeometryTypeSet }
	The type of a geometry instance. More...

enum	Interpolation { GreatCircle , RhumbLine }

Public Member Functions
virtual	~Geometry ()
	Destructor.

virtual GeometryType	type () const =0
	Query the type of the geometry instance.

virtual Geometry *	clone () const =0

const char *	styleName () const
	Query the style used when rendering the geometry.

void	styleName (const char *style)

Interpolation	interpolation () const

void	interpolation (Interpolation i)
	Set the type of interpolation applied to edges.

void	visibility (bool v)

void	visibilityOnSurface (bool v, const Surface3D *surface)

bool	visibilityOnSurface (const Surface3D *surface) const

bool	setAttribute (const char name, const char value)

const char *	getAttribute (const char *name) const

bool	removeAttribute (const char *name)

unsigned int	numAttributes () const

const char *	attributeName (unsigned int index) const

const char *	attributeValue (unsigned int index) const

bool	removeAttribute (unsigned int index)

GeodeticPoint	centroid () const
	Query the centroid of the geometry.

void	translate (const GeodeticPoint &t)

void	scale (const GeodeticPoint &s)

void	scale (const GeodeticPoint &s, const GeodeticPoint &origin)

void	rotate (const GeodeticDirection &axis, double angle)

Protected Member Functions
	Geometry ()

	Geometry (const char *style)

	Geometry (const Geometry &other)

Protected Attributes
void *	m_p

Member Enumeration Documentation

◆ GeometryType

enum envitia::maplink::earth::geometry::Geometry::GeometryType

The type of a geometry instance.

Enumerator
GeometryTypePolyline
GeometryTypePolygon
GeometryTypeSymbol
GeometryTypeText
GeometryTypeSet

◆ Interpolation

enum envitia::maplink::earth::geometry::Geometry::Interpolation

The type of interpolation applied to edges. Primarily this applies to Polylines and Polygons which cover a large distance.

Enumerator
GreatCircle	Lines will be interpolated following a great circle path.
RhumbLine	Lines will be interpolated following a rhumb line path.

Constructor & Destructor Documentation

◆ ~Geometry()

virtual envitia::maplink::earth::geometry::Geometry::~Geometry ( )

virtual

Destructor.

◆ Geometry() [1/3]

envitia::maplink::earth::geometry::Geometry::Geometry ( )

protected

◆ Geometry() [2/3]

envitia::maplink::earth::geometry::Geometry::Geometry ( const char * style )

protected

◆ Geometry() [3/3]

envitia::maplink::earth::geometry::Geometry::Geometry ( const Geometry & other )

protected

Member Function Documentation

◆ attributeName()

const char * envitia::maplink::earth::geometry::Geometry::attributeName ( unsigned int index ) const

Query the name of an attribute.

Parameters

index The index in the attribute array to query.

Returns: The name of the attribute, or null if index >= numAttributes().

◆ attributeValue()

const char * envitia::maplink::earth::geometry::Geometry::attributeValue ( unsigned int index ) const

Query the value of an attribute.

Parameters

index The index in the attribute array to query.

Returns: The value of the attribute, or null if index >= numAttributes().

◆ centroid()

GeodeticPoint envitia::maplink::earth::geometry::Geometry::centroid ( ) const

Query the centroid of the geometry.

◆ clone()

virtual Geometry * envitia::maplink::earth::geometry::Geometry::clone ( ) const

pure virtual

Create a clone of this geometry

If the geometry is a set this will perform a deep copy (All children of the set will be cloned).

Implemented in envitia::maplink::earth::geometry::GeometrySet, envitia::maplink::earth::geometry::Polygon, envitia::maplink::earth::geometry::Polyline, envitia::maplink::earth::geometry::Symbol, and envitia::maplink::earth::geometry::Text.

◆ getAttribute()

const char * envitia::maplink::earth::geometry::Geometry::getAttribute ( const char * name ) const

Get the value of an attribute.

Parameters

name	The name of the attribute to query.

Returns: The value of the attribute, or null if not set.

◆ interpolation() [1/2]

Interpolation envitia::maplink::earth::geometry::Geometry::interpolation ( ) const

Query the type of interpolation applied to edges.

By default edges interpolation is set to GreatCircle

◆ interpolation() [2/2]

void envitia::maplink::earth::geometry::Geometry::interpolation ( Interpolation i )

Set the type of interpolation applied to edges.

◆ numAttributes()

unsigned int envitia::maplink::earth::geometry::Geometry::numAttributes ( ) const

Query the number of attributes.

In most cases applications should refer to attributes by name. The following methods are provided to allow applications to iterate through the attribute set:

numAttributes
attributeName(unsigned int)
attributeValue(unsigned int)
removeAttribute(unsigned int)

Returns: The number of attributes configured on the Geometry instance.

◆ removeAttribute() [1/2]

bool envitia::maplink::earth::geometry::Geometry::removeAttribute ( const char * name )

Remove an attribute.

Parameters

name	The name of the attribute to remove.

Returns: true if the attribute was removed, false otherwise.

◆ removeAttribute() [2/2]

bool envitia::maplink::earth::geometry::Geometry::removeAttribute ( unsigned int index )

Remove an attribute.

Parameters

index The index in the attribute array to remove.

Returns: true if the attribute was removed, false otherwise.

◆ rotate()

void envitia::maplink::earth::geometry::Geometry::rotate	(	const GeodeticDirection &	axis,
		double	angle )

Rotate the geometry.

This method will rotate the coordinates of the geometry by the specified amount, around the specified axis.

The rotation will be applied relative to the centroid of the geometry.

As symbols and text are defined as a single point this method will have no apparent effect on them. The visualisation of these primitives may however be rotated on the display by calling Symbol::rotation or Text::rotation.

Parameters

axis	The axis of rotation.
angle	The angle to rotate by around the axis, in degrees, clockwise.

◆ scale() [1/2]

void envitia::maplink::earth::geometry::Geometry::scale ( const GeodeticPoint & s )

Scale the geometry relative to its centroid.

This method will scale the coordinates of the Geometry by the specified amount.

Parameters

s	The amount to scale the geometry by.

◆ scale() [2/2]

void envitia::maplink::earth::geometry::Geometry::scale	(	const GeodeticPoint &	s,
		const GeodeticPoint &	origin )

Scale the geometry.

This method will scale the coordinates of the Geometry by the specified amount.

Parameters

s	The amount to scale the geometry by.
origin	The origin for the scaling operation.

◆ setAttribute()

bool envitia::maplink::earth::geometry::Geometry::setAttribute	(	const char *	name,
		const char *	value )

Set the value of an attribute.

If the named attribute doesn't exist it will be added by calling this method.

Parameters

name	The name of the attribute to set.
value	The value to set.

Returns: true if the attribute was set, false otherwise.

◆ styleName() [1/2]

const char * envitia::maplink::earth::geometry::Geometry::styleName ( ) const

Query the style used when rendering the geometry.

◆ styleName() [2/2]

void envitia::maplink::earth::geometry::Geometry::styleName ( const char * style )

Set the style to use when rendering the geometry.

When added to a surface a lookup will be performed against the Surface3D's style list using this name.

If no style has been configured with this name then a default style will be used (Style::Style()).

See also: Surface3D::setStyle.

Parameters

style The name of the style to render this geometry as.

◆ translate()

void envitia::maplink::earth::geometry::Geometry::translate ( const GeodeticPoint & t )

Translate the geometry.

This method will translate the coordinates of the Geometry by the specified amount. If a translation is applied to a GeoemtrySet then all child Geometry within the set will be modified.

Parameters

t	The translation to apply.

◆ type()

virtual GeometryType envitia::maplink::earth::geometry::Geometry::type ( ) const

pure virtual

Query the type of the geometry instance.

Implemented in envitia::maplink::earth::geometry::GeometrySet, envitia::maplink::earth::geometry::Polygon, envitia::maplink::earth::geometry::Polyline, envitia::maplink::earth::geometry::Symbol, and envitia::maplink::earth::geometry::Text.

◆ visibility()

void envitia::maplink::earth::geometry::Geometry::visibility ( bool v )

Set the visibility of the geometry on all surfaces.

Calling this method will override any per-surface visibility settings.

Parameters

v	The visibility of the geometry.

◆ visibilityOnSurface() [1/2]

void envitia::maplink::earth::geometry::Geometry::visibilityOnSurface	(	bool	v,
		const Surface3D *	surface )

Set the visibility of the geometry on a specific surface.

Calling this method will set the visibility of the geometry on the specified surface. This method will not affect the geometry's visibility on other surfaces.

Parameters

v	The visibility of the geometry.
surface	The surface to set the visibility for.

◆ visibilityOnSurface() [2/2]

bool envitia::maplink::earth::geometry::Geometry::visibilityOnSurface ( const Surface3D * surface ) const

Query the visibility of the geometry.

Parameters

surface The surface to check the visibility for.

Returns: The visibility of the geometry on all surfaces.

Member Data Documentation

◆ m_p

void* envitia::maplink::earth::geometry::Geometry::m_p

protected
