TSL3DInteractionModeDisplay Class Reference

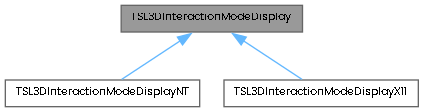

Inheritance diagram for TSL3DInteractionModeDisplay:

Detailed Description

This class provides useful utility functions for the modes. It should not be created by an application.

An instance of this class will be made available in the 'm_display' protected member attribute of the TSLInteractionMode class.

Deprecated

Deprecated as of MapLink 11.1. Advised to use MapLink Earth SDK instead.

Public Member Functions
virtual	~TSL3DInteractionModeDisplay ()
virtual void	captureMouse ()=0
void	clearEchoLine ()
void	clearEchoRectangle ()
virtual void	drawEchoLine ()=0
virtual void	drawEchoRectangle ()=0
virtual void	releaseMouse ()=0
void	resetMode (TSLButtonType button, TSLDeviceUnits xDU, TSLDeviceUnits yDU)
void	setEchoLine (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2)
void	setEchoRectangle (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2)
void	viewChanged (bool addToViewStack)
TSL3DDrawingSurface *	drawingSurface ()

Protected Member Functions
	TSL3DInteractionModeDisplay (TSL3DDrawingSurface *ds, TSL3DInteractionModeManager *manager)

Protected Attributes
TSLDeviceUnits	m_x1
TSLDeviceUnits	m_y1
TSLDeviceUnits	m_x2
TSLDeviceUnits	m_y2
bool	m_drawRect
bool	m_drawLine
TSL3DInteractionModeManager *	m_manager
TSL3DDrawingSurface *	m_drawingSurface

Constructor & Destructor Documentation

~TSL3DInteractionModeDisplay()

virtual TSL3DInteractionModeDisplay::~TSL3DInteractionModeDisplay ( )

virtual

TSL3DInteractionModeDisplay()

TSL3DInteractionModeDisplay::TSL3DInteractionModeDisplay ( TSL3DDrawingSurface * ds, TSL3DInteractionModeManager * manager )

protected

Member Function Documentation

captureMouse()

virtual void TSL3DInteractionModeDisplay::captureMouse ( )

pure virtual

Capture the mouse so that subsequent events are sent to the application window, even though the cursor may move outside. This must be cleared using the 'releaseMouse' method.

Implemented in TSL3DInteractionModeDisplayNT, and TSL3DInteractionModeDisplayX11.

clearEchoLine()

void TSL3DInteractionModeDisplay::clearEchoLine

(

)

Clears any echo line that may be drawn. Echo lines are drawn in XOR mode.

clearEchoRectangle()

void TSL3DInteractionModeDisplay::clearEchoRectangle

(

)

Clears any echo rectangle that may be drawn. Echo rectangles are drawn in XOR mode. If a mode is using echo styles, then this should be called in the onDraw method of the mode.

drawEchoLine()

virtual void TSL3DInteractionModeDisplay::drawEchoLine ( )

pure virtual

Draw any echo line that may be set. Echo lines are drawn in XOR mode.

Implemented in TSL3DInteractionModeDisplayNT, and TSL3DInteractionModeDisplayX11.

drawEchoRectangle()

virtual void TSL3DInteractionModeDisplay::drawEchoRectangle ( )

pure virtual

Draw any echo rectangle that may be set. Echo rectangles are drawn in XOR mode.

Implemented in TSL3DInteractionModeDisplayNT, and TSL3DInteractionModeDisplayX11.

drawingSurface()

TSL3DDrawingSurface * TSL3DInteractionModeDisplay::drawingSurface ( )

inline

Query the drawing surface that this display is attached to.

releaseMouse()

virtual void TSL3DInteractionModeDisplay::releaseMouse ( )

pure virtual

Release the mouse capture so that subsequent events are sent to the focus window.

Implemented in TSL3DInteractionModeDisplayNT, and TSL3DInteractionModeDisplayX11.

resetMode()

void TSL3DInteractionModeDisplay::resetMode	(	TSLButtonType	button,
		TSLDeviceUnits	xDU,
		TSLDeviceUnits	yDU )

The mode should call this to request a reset back to the default mode.

Parameters

button	If the reset was triggered by a button press, this should be the button type. Pass TSLButtonNone if the reset is occurring for some other reason.
(xDU,yDU)	Position of button press that triggered the reset. Pass 0,0 of the reset is occurring for some other reason.

setEchoLine()

void TSL3DInteractionModeDisplay::setEchoLine	(	TSLDeviceUnits	x1,
		TSLDeviceUnits	y1,
		TSLDeviceUnits	x2,
		TSLDeviceUnits	y2 )

Set a line to be drawn for echo. The line is drawn in XOR mode.

Parameters

(x1,y1)	Start of echo line in device units.
(x2,y2)	End of echo line in device units.

setEchoRectangle()

void TSL3DInteractionModeDisplay::setEchoRectangle	(	TSLDeviceUnits	x1,
		TSLDeviceUnits	y1,
		TSLDeviceUnits	x2,
		TSLDeviceUnits	y2 )

Set a line to be drawn for echo. The line is drawn in XOR mode.

Parameters

(x1,y1)	Bottom left of echo rectangle in device units.
(x2,y2)	Top right of echo rectangle in device units.

viewChanged()

void TSL3DInteractionModeDisplay::viewChanged

(

bool

addToViewStack

)

This method should be triggered when the view has changed. This triggers the Mode manager to return true to the application, thus forcing a redraw. If the change in view is to be added to the view stack, then this method should be passed true.

Parameters

addToViewStack

True if the new view should be added to the view stack, false otherwise.

Member Data Documentation

m_drawingSurface

TSL3DDrawingSurface* TSL3DInteractionModeDisplay::m_drawingSurface

protected

m_drawLine

bool TSL3DInteractionModeDisplay::m_drawLine

protected

m_drawRect

bool TSL3DInteractionModeDisplay::m_drawRect

protected

m_manager

TSL3DInteractionModeManager* TSL3DInteractionModeDisplay::m_manager

protected

m_x1

TSLDeviceUnits TSL3DInteractionModeDisplay::m_x1

protected

m_x2

TSLDeviceUnits TSL3DInteractionModeDisplay::m_x2

protected

m_y1

TSLDeviceUnits TSL3DInteractionModeDisplay::m_y1

protected

m_y2

TSLDeviceUnits TSL3DInteractionModeDisplay::m_y2

protected
