Core API

Detailed Description

This class category contains the main MapLink API classes.

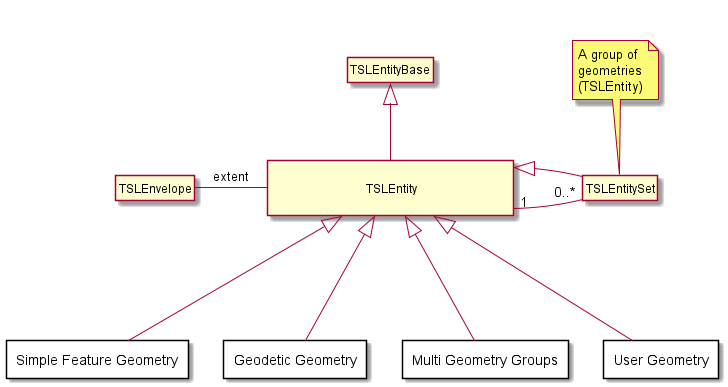

Geometry :

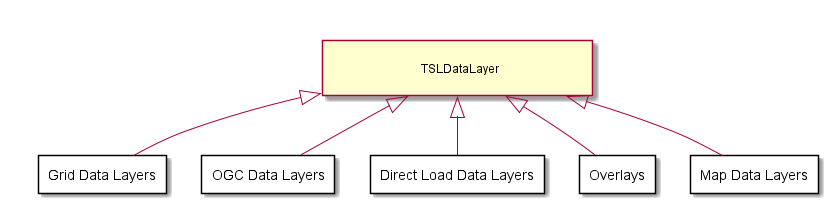

Data Layers:

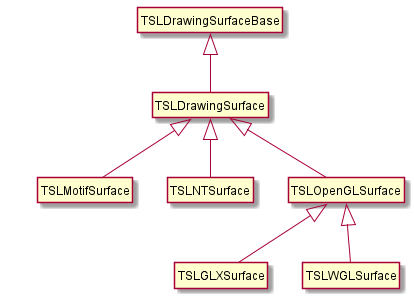

Drawing Surfaces:

Topics
	Data Layer Details
	Data layers provide containers for data that are displayed in a drawing surface.

Classes
class	TSLAttributeValueOperation
class	TSLAttributeValueOperationAnd
class	TSLAttributeValueOperationElse
class	TSLAttributeValueOperationNot
class	TSLAttributeValueOperationEqualTo
class	TSLAttributeValueOperationLessThan
class	TSLAttributeValueOperationGreaterThan
class	TSLAttributeValueOperationNotEqualTo
class	TSLAttributeValueOperationGreaterThanOrEqualTo
class	TSLAttributeValueOperationLessThanOrEqualTo
class	TSLAttributeValues
class	TSLClientFeatureClassifierCustom
class	TSLFeature
class	TSLFeatureClassConfig
class	TSLFeatureClassifier
class	TSLFeatureClassifierCategorised
class	TSLFeatureClassifierCustom
class	TSLFeatureClassifierGraduated
class	TSLFeatureList
struct	TSLRGB
struct	TSLRGBA
class	TSLMapLinkErrorCallback
class	TSLAPP6AHelper
class	TSLCADRGDataLayer
class	TSLCADRGFrameFileInfo
class	TSLClientCustomDataLayer
class	TSLClientCustomDynamicRenderer
class	TSLClientCustomPickResult
class	TSLClientLinearTransform
class	TSLCompareHelper
class	TSLCompression
class	TSLCoordinateConverter
class	TSLCoordinateSystem
class	TSLCoordinateSystemIterator
class	TSLCustomDataLayer
class	TSLCustomDataLayerHandler
class	TSLCustomDataLayerProperties
class	TSLDataLayer
class	TSLDataLayerDrawingCallback
class	TSLDataLayerList
class	TSLDeviceCapabilities
class	TSLDrawingSurface
class	TSLDrawingSurfaceBase
class	TSLDrawingSurfaceDrawCallback
class	TSLDrawingSurfaceTiledBufferControl
class	TSLDynamicRenderer
class	TSLDynamicRendererCustom
class	TSLDynamicRendererFactory
class	TSLFeatureClassList
struct	TSLFeatureCodeMapping
class	TSLFileHelper
class	TSLFileLoader
class	TSLFileLoaderBlocking
class	TSLFileLoaderMemory
class	TSLFileLoaderMT
class	TSLFileLoaderRemote
class	TSLFilterDataLayer
class	TSLFilterDataLayerDisplayItem
class	TSLFilterDataLayerRasterDisplayItem
class	TSLGARSGridDataLayer
class	TSLGeodeticExtent
class	TSLGeographicCoord
class	TSLGridDataLayer
class	TSLHistoryImportSet
class	TSLInteropConfig
class	TSLInteropExportSet
class	TSLInteropImportSet
class	TSLInteropManager
class	TSLLatLongCoord
class	TSLLatLongGridDataLayer
class	TSLLibraryHelper
class	TSLMapDataLayer
class	TSLMapQuery
class	TSLMemoryHelper
class	TSLMFCPrintContext
class	TSLMGRSGridDataLayer
class	TSLMotifSurface
class	TSLNationalGridDataLayer
class	TSLNITFFilterDataLayer
class	TSLNTSurface
class	TSLPathList
class	TSLPathListCallbackClass
class	TSLPersistentCacheData
class	TSLPickResult
class	TSLPickResultCustom
class	TSLPickResultEntity
class	TSLPickResultSet
class	TSLPickSelector
class	TSLPlatformHelper
class	TSLPoint3D
class	TSLPrintContext
class	TSLPrintHelper
class	TSLPrintItem
class	TSLRasterDataLayer
class	TSLRasterFilterDataLayer
class	TSLRasterUtilityFunctions
class	TSLRemoteAuthenticationCallback
class	TSLSeamlessLayerConfig
class	TSLSeamlessLayerManager
class	TSLSeamlessLayerTileList
class	TSLSelector
class	TSLSingleThreadCache
class	TSLSLMEntityRef
class	TSLSLMEntityRefHandler
class	TSLSLMEntityRefHandlerClientCustom
class	TSLSLMEntityRefHandlerCustom
class	TSLSLMEntityRefHandlerFile
class	TSLSLMEntityStoreHandler
class	TSLSLMImportResult
class	TSLSLMProgress
class	TSLStandardDataLayer
class	TSLStreamingFunctions
class	TSLTransformTraits
class	TSLUTF8Decoder
class	TSLUTF8Encoder
class	TSLUtilityFunctions
class	TSLVersionHistorySet
class	TSLVersionUserInfo
class	TSLWin32PrintContext
class	TSLWMSDataLayer
class	TSLWMSECPServiceSettingsCallbacks
class	TSLWMSServiceCapability
class	TSLWMSServiceInfo
class	TSLWMSServiceLayer
class	TSLWMSServiceLayerDimension
class	TSLWMSServiceSettingsCallbacks

Typedefs
typedef void(*	TSLAllLoadedCallback) (void *arg2)
typedef bool(*	TSLCopyFilesCallback) (void *arg, int percentDoneTotal, int percentDoneCurrentFile)
typedef bool(*	TSLFilterProgressCallback) (void *arg, TSLFilterProgress callbackType, double percentage)
typedef TSLTimeType	TSLHistoryTimestamp
typedef unsigned int	TSLHistoryVersion
typedef void	TSLLatLongGridDataLayerFormatCallback(void *arg, double value, bool lineOfLatitude, char *buffer)
typedef void(*	TSLLayerArchiveCallback) (void *arg, const char *layerName, TSLHistoryVersion version, char *directory)
typedef void(*	TSLLayerArchiveTileCallback) (void *arg, const char *layerName, TSLHistoryVersion version, char *directory, int userVersion, const TSLEnvelope &extent, const TSLSimpleString &tileFileName)
typedef TSLLoaderCallbackReturn(*	TSLLoaderAppCallback) (void *arg, const char *filename, TSLEnvelope extent, TSLLoaderStatus status, int percentDone)
typedef TSLLoaderCallbackReturn(*	TSLLoaderCallback) (void *arg, TSLifstream *stream, const char *fullPath, TSLLoaderStatus status, int percentDone)
typedef TSLLoaderCallbackReturn(*	TSLLoaderFileLoadedCallback) (void *arg, TSLifstream *stream, const char *fullPath, bool beforeDecompression)
typedef TSLPathlistCallbackReturn(*	TSLPathlistCallback) (void *arg, const char *filename, char *directory, TSLMaplCompressionOption *compression)
typedef void(*	TSLRuntimeProjectionChangedCallback) (void *arg, TSLRuntimeProjectionChangedEnum reason)
typedef bool(*	TSLSeamlessLayerEntityChangeCallback) (void *arg, const TSLEntity *originalEntity, const TSLEntity *modifiedEntity, TSLBitMask entityChangeSet)
typedef int(*	TSLTileValidationFn) (char const *tileName, TSLTimeType const *lastValidTime, TSLTimeType const *modificationTime, TSLDataLayer *layer, void *arg)

Enumerations
enum	TSLErrorCategory {   TSLErrorCategoryInfo = 1 , TSLErrorCategoryWarn = 2 , TSLErrorCategoryError = 4 , TSLErrorCategoryFatal = 8 ,   TSLErrorCategorySyntax = 16 , TSLErrorCategoryDebug = 32 , TSLErrorCategoryAll = 63 }
enum	TSLArcZoneEnum {   TSLArcZone_Undefined = -1 , TSLArcZone_J = 0 , TSLArcZone_H = 1 , TSLArcZone_G = 2 ,   TSLArcZone_F = 3 , TSLArcZone_E = 4 , TSLArcZone_D = 5 , TSLArcZone_C = 6 ,   TSLArcZone_B = 7 , TSLArcZone_A = 8 , TSLArcZone_1 = 9 , TSLArcZone_2 = 10 ,   TSLArcZone_3 = 11 , TSLArcZone_4 = 12 , TSLArcZone_5 = 13 , TSLArcZone_6 = 14 ,   TSLArcZone_7 = 15 , TSLArcZone_8 = 16 , TSLArcZone_9 = 17 }
enum	TSLButtonType { TSLButtonLeft = 0 , TSLButtonCentre = 1 , TSLButtonRight = 2 , TSLButtonNone = 3 }
enum	TSLCADRGScaleFactorEnum {   TSLCadrgScaleFactorUndefined = 0 , TSLCadrgScaleFactor_1_IN_9M = 94 , TSLCadrgScaleFactor_1_IN_5M = 50 , TSLCadrgScaleFactor_1_IN_2M = 51 ,   TSLCadrgScaleFactor_1_IN_1M = 52 , TSLCadrgScaleFactor_1_IN_500K = 53 , TSLCadrgScaleFactor_1_IN_250K = 54 , TSLCadrgScaleFactor_1_IN_100K = 55 ,   TSLCadrgScaleFactor_1_IN_50K = 56 , TSLCadrgScaleFactor_1_IN_12pt5K = 57 , TSLCadrgScaleFactor_1_IN_200K = 62 , TSLCadrgScaleFactor_1_IN_125K = 63 ,   TSLCadrgScaleFactor_1_IN_25K = 64 , TSLCadrgScaleFactor_1_IN_24K = 65 , TSLCadrgScaleFactor_1_IN_10K = 66 , TSLCadrgScaleFactor_1_IN_10560 = 67 ,   TSLCadrgScaleFactor_1_IN_11000 = 68 , TSLCadrgScaleFactor_1_IN_11800 = 69 , TSLCadrgScaleFactor_1_IN_12000 = 70 , TSLCadrgScaleFactor_1_IN_12800 = 71 ,   TSLCadrgScaleFactor_1_IN_14000 = 72 , TSLCadrgScaleFactor_1_IN_14700 = 73 , TSLCadrgScaleFactor_1_IN_15000 = 74 , TSLCadrgScaleFactor_1_IN_15500 = 75 ,   TSLCadrgScaleFactor_1_IN_16000 = 76 , TSLCadrgScaleFactor_1_IN_16666 = 77 , TSLCadrgScaleFactor_1_IN_17000 = 78 , TSLCadrgScaleFactor_1_IN_17500 = 79 ,   TSLCadrgScaleFactor_1_IN_18000 = 80 , TSLCadrgScaleFactor_1_IN_20000 = 81 , TSLCadrgScaleFactor_1_IN_21000 = 82 , TSLCadrgScaleFactor_1_IN_21120 = 83 ,   TSLCadrgScaleFactor_1_IN_22000 = 84 , TSLCadrgScaleFactor_1_IN_23000 = 85 , TSLCadrgScaleFactor_1_IN_25000 = 86 , TSLCadrgScaleFactor_1_IN_26000 = 87 ,   TSLCadrgScaleFactor_1_IN_35000 = 88 , TSLCadrgScaleFactor_1_IN_36000 = 89 , TSLCadrgScaleFactor_0pt5M = 92 , TSLCadrgScaleFactor_1M = 91 ,   TSLCadrgScaleFactor_2M = 90 , TSLCadrgScaleFactor_5M = 59 , TSLCadrgScaleFactor_10M = 58 , TSLCadrgScaleFactor_37pt5M = 93 ,   TSLCadrgScaleFactor_150M = 61 , TSLCadrgScaleFactor_750M = 60 , TSLCadrgScaleFactor1_5M = 1 , TSLCadrgScaleFactor1_2M = 2 ,   TSLCadrgScaleFactor1_1M = 3 , TSLCadrgScaleFactor1_500K = 4 , TSLCadrgScaleFactor1_250K = 5 , TSLCadrgScaleFactor1_100K = 6 ,   TSLCadrgScaleFactor1_50K = 7 , TSLCadrgScaleFactor1_15K = 8 , TSLCadrgScaleFactor1_14K = 9 , TSLCadrgScaleFactor1_13K = 10 ,   TSLCadrgScaleFactor1_12K = 11 , TSLCadrgScaleFactor1_11K = 12 , TSLCadrgScaleFactor1_10K = 13 , TSLCadrgScaleFactor1_9K = 14 ,   TSLCadrgScaleFactor1_8K = 15 , TSLCadrgScaleFactor1_7K = 16 , TSLCadrgScaleFactor1_6K = 17 , TSLCadrgScaleFactor1_5K = 18 }
enum	TSLCompressionResult {   TSLSuccess , TSLOutOfMemory , TSLHeaderIncorrect , TSLFailed ,   TSLFileError }
enum	TSLCursorStyle {   TSLCursorStyleNone = -1 , TSLCursorStyleSelectEntity = 0 , TSLCursorStyleSelectPosition = 1 , TSLCursorStyleSelectPoint = 2 ,   TSLCursorStyleDraw = 3 , TSLCursorStyleScaleEqual = 4 , TSLCursorStyleScaleUnequal = 5 , TSLCursorStyleScaleNorth_South = 6 ,   TSLCursorStyleScaleEast_West = 7 , TSLCursorStyleScaleNorthEast_SouthWest = 8 , TSLCursorStyleScaleNorthWest_SouthEast = 9 , TSLCursorStyleBusy = 10 ,   TSLCursorStyleMoveEntity = 11 , TSLCursorStyleRotate = 12 , TSLCursorStyleMovePoint = 13 , TSLCursorStyleEnterText = 14 ,   TSLCursorStyleZoomToRectangle = 15 , TSLCursorStylePanToPoint = 16 , TSLCursorStyleMagnify = 17 , TSLCursorStyleQuery = 18 ,   TSLCursorStyleGrab = 19 , TSLCursorStyleDrop = 20 , TSLCursorStyleUserCursorBase = 100 , TSLCursorStyleUserCursorEnd = 127 }
enum	TSLDataLayerTypeEnum {   TSLDataLayerTypeStandardDataLayer = 1 , TSLDataLayerTypeMapDataLayer = 2 , TSLDataLayerTypeGridDataLayer = 3 , TSLDataLayerTypeRasterDataLayer = 4 ,   TSLDataLayerTypeNationalGridDataLayer = 5 , TSLDataLayerTypeCADRGDataLayer = 6 , TSLDataLayerType3DStandardDataLayer = 16 , TSLDataLayerTypeCustomDataLayer = 18 ,   TSLDataLayerType3DCustomDataLayer = 19 , TSLDataLayerTypeMGRSGridDataLayer = 20 , TSLDataLayerTypeLatLonGridDataLayer = 21 , TSLDataLayerTypeAcceleratedCustomDataLayer = 22 ,   TSLDataLayerType2DSatelliteDataLayer = 26 , TSLDataLayerType3DSatelliteDataLayer = 27 , TSLDataLayerTypeFilterDataLayer = 30 , TSLDataLayerTypeWMSDataLayer = 32 ,   TSLDataLayerTypeS63DataLayer = 33 , TSLDataLayerTypeGARSGridDataLayer = 34 , TSLDataLayerTypeWMTSDataLayer = 35 , TSLDataLayerTypeStaticMapDataLayer = 36 ,   TSLDataLayerTypeDirectImportDataLayer = 37 , TSLDataLayerTypeViewShed = 38 , TSLDataLayerTypeDatabaseDataLayer = 500 , TSLDataLayerTypeKMLDataLayer = 501 ,   TSLDataLayerTypeHeatMapDataLayer = 502 }
enum	TSLDeclutterStatusEnum {   TSLDeclutterStatusOff = 0 , TSLDeclutterStatusOn = 1 , TSLDeclutterStatusAuto = 2 , tsl_dcl_OFF = 0 ,   tsl_dcl_ON = 1 , tsl_dcl_AUTO = 2 }
enum	TSLDeclutterStatusResultEnum {   TSLDeclutterStatusResultOff = 0 , TSLDeclutterStatusResultOn = 1 , TSLDeclutterStatusResultAuto = 2 , TSLDeclutterStatusResultPartial = 3 ,   tsl_dcl_is_OFF = 0 , tsl_dcl_is_ON = 1 , tsl_dcl_is_AUTO = 2 , tsl_dcl_is_PARTIAL = 3 }
enum	TSLDrawingSurfaceTypeEnum {   TSLDrawingSurfaceTypeUnknown = -1 , TSLDrawingSurfaceTypeGDI = 0 , TSLDrawingSurfaceTypeX11 = 1 , TSLDrawingSurfaceTypeOpenGL = 2 ,   TSLDrawingSurfaceTypeDirect2D = 3 , TSLDrawingSurfaceTypeAcceleratorOpenGL = 4 , TSLDrawingSurfaceTypeAcceleratorDirectX = 5 , TSLDrawingSurfaceType3DOpenGL = 6 ,   TSLDrawingSurfaceType3DEarth = 7 }
enum	TSLDynamicRendererAction { TSLDynamicRendererActionNone = 0 , TSLDynamicRendererActionIgnore = 1 , TSLDynamicRendererActionDefault = 2 , TSLDynamicRendererActionUseCurrentRendering = 3 }
enum	TSLFileLoaderTypeEnum {   TSLFileLoaderTypeBlocking = 0 , TSLFileLoaderTypeMemory = 1 , TSLFileLoaderTypeMT = 2 , TSLFileLoaderTypeRemote = 3 ,   TSLFileLoaderTypeCustom = 4 }
enum	TSLFileLoaderCallbacks { TSLFileLoaderCallbackBeforeDecompression = 1 , TSLFileLoaderCallbackAfterDecompression = 2 , TSLFileLoaderCallbackAfterProcessing = 4 }
enum	TSLFilterDisplayItemProp { TSLFilterDisplayItemPropRasterProjectionMaintainPalette = 1 , TSLFilterDisplayItemPropRasterProjectionDisableDithering = 2 , TSLFilterDisplayItemPropRasterProjectionInterpolate = 3 , TSLFilterDisplayItemPropStretchBrightness = 4 }
enum	TSLFilterProcess {   TSLFilterProcessNone = 0 , TSLFilterProcessCreateBatch = 0x1 , TSLFilterProcessFlattenGroups = 0x4 , TSLFilterProcessComplexChecking = 0x8 ,   TSLFilterProcessKeyHoling = 0x10 , TSLFilterProcessDecomplexifyOnInput = 0x40 , TSLFilterProcessIgnorePolygonGeometryFailures = 0x80 , TSLFilterProcessRasterPyramid = 0x100 ,   TSLFilterProcessSeparateMaskFile = 0x200 }
enum	TSLFilterProcessStatus { TSLFilterProcessStatusUnknown = -1 , TSLFilterProcessStatusFail = 0 , TSLFilterProcessStatusSuccess = 1 }
enum	TSLFilterProgress { TSLFilterProgressLoadData = 0 , TSLFilterProgressProcess = 1 , TSLFilterProgressGeolocationChange = 2 , TSLFilterProgressProcessItem = 3 }
enum	TSLFilterType {   TSLFilterTypeNITF =0 , TSLFilterTypeRaster =1 , TSLFilterTypeGeoTIFF = 2 , TSLFilterTypeArcs = 5 ,   TSLFilterTypeASRP = 7 , TSLFilterTypeCRP = 9 , TSLFilterTypeGDAL = 28 }
enum	TSLFindTypeEnum {   TSLFindTypeAll = 0 , TSLFindTypeEntitySet = 4 , TSLFindTypeText = 1 , TSLFindTypeSymbol = 6 ,   TSLFindTypeCurve = 7 , TSLFindTypeSurface = 14 , TSLFindTypeArc = 10 , TSLFindTypePolyline = 11 ,   TSLFindTypeEllipse = 16 , TSLFindTypePolygon = 15 , TSLFindTypeRectangle = 17 }
enum	TSLGridDetailLevelChangeEnum { TSLGridLevelChangeAutomatic = 0 , TSLGridLevelChangeManual = 1 }
enum	TSLInteropAttributeType { TSLInteropAttributeTypeProperties = 0 , TSLInteropAttributeTypeRendering , TSLInteropAttributeTypeDataset }
enum	TSLInteropEntityType {   TSLInteropEntityTypeArc = 0 , TSLInteropEntityTypeEllipse = 1 , TSLInteropEntityTypePolygon = 2 , TSLInteropEntityTypePolyline = 3 ,   TSLInteropEntityTypeRectangle = 4 , TSLInteropEntityTypeSymbol = 5 , TSLInteropEntityTypeText = 6 , TSLInteropEntityTypeSpline = 7 ,   TSLInteropEntityTypeBorderedPolygon = 8 , TSLInteropEntityTypeBorder = 9 }
enum	TSLInteropError {   TSLInteropErrorOK = 0 , TSLInteropErrorUndefined , TSLInteropErrorNullPointer , TSLInteropErrorCopyFailure ,   TSLInteropErrorIndexOutOfRange , TSLInteropErrorInconsistentExportSet , TSLInteropErrorEmptyBasefileAndAttribute , TSLInteropErrorCopyDatasetFailure ,   TSLInteropErrorCopyDataHandlerFailure , TSLInteropErrorExternalAttributeNotFound , TSLInteropErrorIncorrectAttributeType , TSLInteropErrorSetRendering ,   TSLInteropErrorProcessBorderedPolygon }
enum	TSLKeyedOption {   TSLPlatformKey = -1 , TSLKeyedLZWTIF =0 , TSLKeyedGIF =1 , TSLKeyedShapefileImport =2 ,   TSLKeyedShapefileExport =3 , TSLKeyedMIFImport =4 , TSLKeyedMIFExport =5 , TSLKeyedMasterMapImport =6 ,   TSLKeyedMasterMapExport =7 , TSLKeyedLandLineImport =8 , TSLKeyedLandLineExport =9 , TSLKeyedS57Import =10 ,   TSLKeyedS57Export =11 , TSLKeyedJPEG2000 =12 , TSLKeyedCADRGDataLayer =13 , TSLKeyedDMEDTerrainDatabase =14 ,   TSLKeyedS63 =15 , TSLKeyedGML =16 , TSLKeyedWFSClient =17 , TSLKeyedS57MediaIngest = 19 ,   TSLKeyedEvaluationMap = 20 , TSLKeyedDirectImportDataLayer = 21 }
enum	TSLLoaderCallbackReturn {   TSLContinue , TSLCancelThisLoad , TSLCancelAllLoads , TSLBadFileStatus ,   TSLIgnoreFile }
enum	TSLLoaderStatus {   TSLLoadingOK , TSLLoadingCancelled , TSLLoadingFailedNotFound , TSLLoadingFailedInternetSettings ,   TSLLoadingFailedNoMemory , TSLLoadingFailedBadCompressionHeader , TSLLoadingFailedDecompression , TSLLoadingFailedCompression ,   TSLLoadingFailedOpening , TSLLoadingFailedReading , TSLLoadingFailedClosing , TSLLoadingFailedOffsetMove ,   TSLLoadingFailedFilter , TSLLoadingFailedGeneral , TSLLoaderDoesntDecompress , TSLLoaderKilled ,   TSLLoaderAccessDenied , TSLLoaderIgnoreFile }
enum	TSLLocatorType { TSLLocatorPress = 0 , TSLLocatorMotion = 1 , TSLLocatorRelease = 2 }
enum	TSLMaplCompressionOption { TSLCompressedYes , TSLCompressedNo , TSLCompressedDefault }
enum	TSLModifierType { TSLModifierNone = 0 , TSLModifierShift = 1 , TSLModifierControl = 2 , TSLModifierShiftAndControl = 3 }
enum	TSLOptionEnum {   TSLOptionDoubleBuffered = 8 , TSLOptionAntiAliasMonoRasters = 16 , TSLOptionDynamicArcSupportEnabled = 64 , TSLOptionProgressiveTileZoom = 128 ,   TSLOptionTileBufferedLayers = 256 , TSLOptionAcceleratorZoomAsynchronous = 128 }
enum	TSLPathlistCallbackReturn { TSLFileDoesNotExist , TSLFileLocationUnknown , TSLFileLocationToTry , TSLFileLocationMandatory }
enum	TSLPickResultEnum {   TSLPickEntity =0 , TSLPickCustom =1 , TSLPick3DEntity =2 , TSLPickDisplayObject =3 ,   TSLPickSatellite =4 , TSLPickTrack =5 , TSLPickTrackGraphic =6 , TSLPickEarthTrack =7 ,   TSLPickEarthGeometry = 8 , TSLPickReserved1 =90 , TSLPickReserved2 =91 , TSLPickReserved3 =92 ,   TSLPickReserved4 =93 , TSLPickReserved5 =94 , TSLPickUser =100 }
enum	TSLPriorityEnum { TSLPriorityBelow , TSLPrioritySame , TSLPriorityMin }
enum	TSLPropertyEnum {   TSLPropertyVisible = 1 , TSLPropertyDetect = 2 , TSLPropertySelect = 3 , TSLPropertyTransparent = 4 ,   TSLPropertyAutomatic = 5 , TSLPropertyMinTextHeight = 6 , TSLPropertyBuffered = 7 , TSLPropertyMaxTextHeight = 8 ,   TSLPropertyMinZoomDisplay = 9 , TSLPropertyMaxZoomDisplay = 10 , TSLPropertyProgressiveDisplay = 11 , TSLPropertyRasterContrast = 12 ,   TSLPropertyRasterBrightness = 13 , TSLPropertyRasterGamma = 14 , TSLPropertyLoadedSymbolsAndTextViewExpansion = 15 , TSLPropertyTransparency = 16 ,   TSLPropertyNonNativeDrawing = 17 , TSLPropertyRealtimeReprojection = 18 , TSLPropertyGeometryStreaming = 19 , TSLPropertyDepthClear = 20 ,   TSLPropertyGeometryStreamingForceSymbolsAndTextToTop = 21 , tsl_visible = 1 , tsl_detect = 2 , tsl_select = 3 ,   tsl_transparent = 4 , tsl_automatic = 5 , tsl_min_text_height = 6 , tsl_buffered = 7 ,   tsl_max_text_height = 8 , tsl_min_zoom_display = 9 , tsl_max_zoom_display = 10 , TSLPropertyProgressiveRasterDisplay = 11 }
enum	TSLRasterFilterPixelTransparency { TSLRasterFilterPixelTransparencyNone = 0 , TSLRasterFilterPixelTransparencyTrimBlack = 1 , TSLRasterFilterPixelTransparencyAllBlack = 2 , TSLRasterFilterPixelTransparencyAllColour = 4 }
enum	TSLRasterInterpolation {   TSLRasterInterpolationNone = 0 , TSLRasterInterpolationAverage = 1 , TSLRasterInterpolationBilinear = 2 , TSLRasterInterpolationNearestNeighbour = 3 ,   TSLRasterInterpolationPadding = 4 }
enum	TSLRasterType {   TSLRasterTypeTiff =6 , TSLRasterTypeTiffPackBits = 9 , TSLRasterTypeBmp = 12 , TSLRasterTypeJpeg = 23 ,   TSLRasterTypePCX = 24 , TSLRasterTypePNG = 36 , TSLRasterTypeJpeg2K = 75 }
enum	TSLResizeActionEnum {   TSLResizeActionNone = 0 , TSLResizeActionMaintainCentre = 5 , TSLResizeActionMaintainTopLeft = 6 , TSLResizeActionMaintainTopRight = 7 ,   TSLResizeActionMaintainBottomLeft = 8 , TSLResizeActionMaintainBottomRight = 9 }
enum	TSLRuntimeProjectionChangedEnum { TSLRuntimeProjectionChangeOriginChangedOnly = 0 , TSLRuntimeProjectionChangeProjectionChanged = 1 }
enum	TSLSelectorActionType { TSLSelectorActionIgnoreContinue = 0 , TSLSelectorActionIgnoreNext = 1 , TSLSelectorActionSelectExit = 2 , TSLSelectorActionSelectNext = 3 }
enum	TSLSLMEntityRefHandlerType { TSLSLMEntityRefHandlerCustomType = 0 , TSLSLMEntityRefHandlerFileType = 1 }
enum	TSLSLMEntityRefValidationEnum { TSLSLMEntityRefValidationValid , TSLSLMEntityRefValidationInvalidDifferentVersion , TSLSLMEntityRefValidationInvalidNotFound , TSLSLMEntityRefValidationInvalidAlreadyFound }
enum	TSLThreadedOptionsEnum { TSLThreadedOptionsRenderingSupport = 0x1 , TSLThreadedOptionsX11TTFSupport = 0x2 , TSLThreadedOptionsPathListSupport = 0x4 , TSLThreadedOptionsFilterProcessingSupport = 0x8 }
enum	TSLUUEnum {   TSLUUBottomLeft = 0 , TSLUUCentre = 1 , TSLUUTopRight = 2 , tsl_bottomLeft = 0 ,   tsl_centre = 1 , tsl_topRight = 2 }
enum	TSLWMSVersionEnum {   TSLWMSVersionUnsupported = -1 , TSLWMSVersion_1_0_0 = 0 , TSLWMSVersion_1_1_0 = 1 , TSLWMSVersion_1_1_1 = 2 ,   TSLWMSVersion_1_3_0 = 3 }

Typedef Documentation

TSLAllLoadedCallback

typedef void(* TSLAllLoadedCallback) (void *arg2)

Function typedef.

This function typedef defines the signature of a function that the user may optionally provide to the loader if using asynchronous loading.

Implementation

static void allLoadedFunction( void * arg2 ) ;

The callback will be called after each draw of a map data layer once all required map tiles have been loaded. If all tiles are already loaded in the cache then the callback will not be made.

The callback may also not occur if a file could not be found or if the tile cache is too small. This can occur if you are using a threaded file loader (TSLFileLoaderRemote, TSLFileLoaderMT).

If you are finding that this callback is not occurring you are advised to also use the TSLLoaderCallback and check the percentDone parameter. This callback always occurs for the 100% value.

Parameters

arg2	The arg2 value passed to the addLoader function; user-defined.
Return	value

TSLCopyFilesCallback

typedef bool(* TSLCopyFilesCallback) (void *arg, int percentDoneTotal, int percentDoneCurrentFile)

Function typedef.

This function typedef defines the signature of a function that the user may optionally provide to a method that copies files such as TSLMapDataLayer::copyRasterFeatures.

Implementation

static bool progressFunc( void*arg, int percentDoneTotal,int percentDoneCurrentFile) ;

The callback will be called during the copy of each file.

Parameters

arg1	The arg value passed to the called method; user-defined.
arg2	The percentage of the total copied.
arg3	The percentage of the current file that's been copied.
Return	value

bool If false is returned then copying is cancelled.

TSLFilterProgressCallback

typedef bool(* TSLFilterProgressCallback) (void *arg, TSLFilterProgress callbackType, double percentage)

This typedef defines a user supplied callback that is used throughout the filter data layer. The documentation for the TSLFilterProgressEnum outlines the types of callbacks the user will receive if they supply a callback.

Parameters

arg	The user supplied argument associated with the callback
callbackType	Identifies where the callback originates from. See the documentation for TSLFilterProgressEnum for more details on the types of callback and how they affect the data layer.
percentage	The percentage or completeness the callback is identifying to the user. The data layer guarantees that at least a 100% complete callback will be made if the specific callback type is successful.

The return value indicates whether the user would like the current task to be aborted. Returning false will allow the task to continue.

TSLHistoryTimestamp

typedef TSLTimeType TSLHistoryTimestamp

The type representing a version timestamp. It is a typedef for a 64-bit time type. Users should create instances of this type using standard system calls.

TSLHistoryVersion

typedef unsigned int TSLHistoryVersion

The type representing a version number. It is a typedef for type 'unsigned int'.

Data layer archives will always start at version 1. Therefore, clients can use a value of 0 in their applications to signal the current version (e.g. this would allow clients to call cancelFlashback()).

TSLLatLongGridDataLayerFormatCallback

typedef void TSLLatLongGridDataLayerFormatCallback(void *arg, double value, bool lineOfLatitude, char *buffer)

Function typedef used by the TSLLatLongGridDataLayer to format the text displayed at each grid interval. The user implementation should write the desired string to the buffer passed.

Parameters

arg	The arg value passed to TSLLatLongGridDataLayer; user-defined.
value	The value of the position being formatted
lineOfLatitude	If true then the value passed denotes the label for a line of latitude. If false then it denotes a line of longitude.
buffer	A 256 character length buffer that the user should write the formatted position to.

TSLLayerArchiveCallback

typedef void(* TSLLayerArchiveCallback) (void *arg, const char *layerName, TSLHistoryVersion version, char *directory)

This function typedef defines the signature of a function that the user must provide to the TSLDataLayer::flashbackToTimestamp() or TSLDataLayer::flashbackToVersion() methods so that the application can indicate where layer archives are to be found.

If MapLink cannot locate the layer within the supplied archive directory, then it will attempt to use the latest version of the layer.

Parameters

arg	The arg value passed to TSLDataLayer::flashbackToTimestamp() or TSLDataLayer::flashbackToVersion() methods, user-defined.
layerName	The name of the layer for which the archive is required.
version	The version of the layer required.
directory	This parameter points to a character array. The callback should fill in the location of the archive directory for the layer at the required version. The string must not be longer than TSL_MAX_WPATH, including the null terminator.

TSLLayerArchiveTileCallback

typedef void(* TSLLayerArchiveTileCallback) (void *arg, const char *layerName, TSLHistoryVersion version, char *directory, int userVersion, const TSLEnvelope &extent, const TSLSimpleString &tileFileName)

This function typedef defines the signature of a function that the user must provide to the TSLDataLayer::flashbackToTimestamp() or TSLDataLayer::flashbackToVersion() methods so that the application can indicate where layer archives are to be found. This callback differs from TSLLayerArchiveCallback in that it will be invoked for every tile in the map for which historical data is needed instead of only for the first tile.

If MapLink cannot locate the layer within the supplied archive directory, then it will attempt to use the latest version of the layer.

Parameters

arg	The arg value passed to the TSLDataLayer::flashbackToTimestamp() or TSLDataLayer::flashbackToVersion() methods, user-defined.
layerName	The name of the layer for which the archive is required.
version	The version of the layer required.
directory	This parameter points to a character array. The callback should fill in the location of the archive directory for the layer at the required version. The string must not be longer than TSL_MAX_WPATH, including the null terminator.
userVersion	A user-defined integer value originally set on the tile when the history entry was created. If no user value has been set this will default to 0.
extent	Extent for which historical data is desired. You should retrieve all entities within this extent and store them in a single TMF file.
tileFileName	This is the filename that the tile should be saved as.

TSLLoaderAppCallback

typedef TSLLoaderCallbackReturn(* TSLLoaderAppCallback) (void *arg, const char *filename, TSLEnvelope extent, TSLLoaderStatus status, int percentDone)

Function typedef.

This function typedef defines the signature for a callback routine that must be supplied when calling addLoader on a drawing surface or data layer. The callback is used when a file is loaded using the loader added.

Implementation:

static TSLLoaderCallbackReturn mapCallbackFunction( void* arg, const char* filename, TSLEnvelope extent, TSLLoaderStatus status, int percentDone );

Parameters

arg	The arg value passed to the load function; user-defined.
filename	Provides the full path of the file being loaded.
extent	Provides the geographic extent of the data loaded. Only valid when loading is successful and 100% complete.
status	Indicates success or error.
percentDone	Indicates progress through the loading of the file.

Returns

The user should indicate whether the loader is to continue, to cancel the current load, or to cancel all loads in progress.

TSLLoaderCallback

typedef TSLLoaderCallbackReturn(* TSLLoaderCallback) (void *arg, TSLifstream *stream, const char *fullPath, TSLLoaderStatus status, int percentDone)

Function typedef.

This function typedef defines the signature of a function that the user must provide to the loader if using asynchronous loading.

Implementation:

static TSLLoaderCallbackReturn mapCallbackFunction( void* arg, TSLifstream * stream, const char* filename, TSLLoaderStatus status, int percentDone );

Parameters

arg	The arg value passed to the load function; user-defined.
stream	If loading has completed successfully then this will point to a stream created by the routine and containing the data loaded.
fullPath	Provides the full path of the file being loaded.
status	Indicates success or error. Every call to a load function will be matched by one callback that contains an error or contains success with 100% complete.
percentDone	Indicates progress through the loading of the file.

Returns

The user should indicate whether the loader is to continue (TSLContinue), to cancel the current load, or to cancel all loads in progress. TSLBadFileStaus return value is not supported for this callback.

Note

Breaking Behaviour MapLink 7.5: The stream must not be deleted by the user.

TSLLoaderFileLoadedCallback

typedef TSLLoaderCallbackReturn(* TSLLoaderFileLoadedCallback) (void *arg, TSLifstream *stream, const char *fullPath, bool beforeDecompression)

Function typedef.

This function typedef defines the signature of a function that the user can provide to the loader if they wish to intercept the loading of the file (see TSLFileLoader::setLoadedCallback).

This callback use is for those wishing to check the integrity of a map and its associated files (see the samples).

Implementation:

static TSLLoaderCallbackReturn fileloaderFileLoadedCallback(void arg, TSLifstream stream, const char* fullPath, bool beforeDecompression);

Parameters

arg	The arg value passed to the load function; user-defined.
stream	If loading has completed successfully then this will point to a stream created by the routine and containing the data loaded.
fullPath	Provides the full path of the file being loaded.
beforeDecompression	Indicates if the callback was called before the stream was decompressed (this does not indicate that the file was compressed).

Returns

The user should indicate whether the loader is to continue (TSLContinue), or if the file was bad (TSLBadFileStaus or TSLIgnoreFile). TSLCancelThisLoad and TSLCancelAllLoads are not supported.

Note

For the drawing surface the following files are mandatory:

• tslcolours.dat
• tslfonts.dat
• tslsymbols.dat and associated .dat files.
• tslfillstyles.dat and associated files in fillstyles
• tsllinestyles.dat and associated files in linestyles

If the symbols themselves fail to load then they will not be displayed.

For a map the following files are mandatory:

• .map
• .dtl
• .fbk
• .pal
• .pth

If mandatory files are to be failed then TSLBadFileStatus should be returned.

For .tmf, .tp1 and .tpf you can return TSLIgnoreFile of TSLBadFileStatus if the files are to be failed.

Raster Pyramid files are complex to check and track. It is therefore suggested that you do not generate raster pyramids to a single file when generating your map.

Note

MapLink 7.5 Breaking Change: you should not delete the TSLifstream.

TSLPathlistCallback

typedef TSLPathlistCallbackReturn(* TSLPathlistCallback) (void *arg, const char *filename, char *directory, TSLMaplCompressionOption *compression)

Deprecated function typedef, please use TSLPathListCallbackClass instead.

This function typedef defines the signature of a function that the user may provide to a TSLPathlist, so that the application can indicate where files are to be found.

Parameters

arg	The arg value passed to the pathlist constructor, user-defined
filename	The file whose location is to be determined.
directory	This parameter points to a character array in the pathlist class. The size of the array is defined by the parameter TSL_PATHLIST_CALLBACK_DIR_SIZE (in file 'tslpathlistconstants.h'). The callback should fill this with the name of the directory where the file should be found. The length of the string must not exceed the size defined by TSL_PATHLIST_CALLBACK_DIR_SIZE, including the null terminator.
compression	Points to a variable that the callback should use to indicate if the directory returned is compressed.
Return	value

See the TSLPathlistCallbackReturn enumeration for an explanation.

TSLRuntimeProjectionChangedCallback

typedef void(* TSLRuntimeProjectionChangedCallback) (void *arg, TSLRuntimeProjectionChangedEnum reason)

Function typedef for runtime projection changes.

Parameters

arg	The arg value passed to the runtime projection change methods; user-defined.
reason	If the same callback is given for both projection change and origin change, this parameter can be used to determine why the callback is being made.

TSLSeamlessLayerEntityChangeCallback

typedef bool(* TSLSeamlessLayerEntityChangeCallback) (void *arg, const TSLEntity *originalEntity, const TSLEntity *modifiedEntity, TSLBitMask entityChangeSet)

This callback shall be invoked once for each entity that is imported into a seamless layer via the seamless layer manager. It allows a user application to control if the entity should be imported or updated in the seamless layer based on what changes have occurred to the entity.

Parameters

arg	The user-defined argument as passed to TSLSeamlessLayerManager::ingestData().
originalEntity	The entity as it exists currently in the seamless layer. For new entities this will be NULL.
modifiedEntity	The entity after is has been modified by the COU update. For deleted entities this will be NULL.
entityChangeSet	A bitmask field describing what has changed for this entity. See the documentation for TSLEntityChange for a description of possible values. More than one value may be set for any one entity.

The application should return true from this callback to import the entity into the seamless layer, or false to ignore it. Note that if false is returned, the lastImportedVersion field for the TSLSLMEntityRef for this entity will still be updated to mark that an update has been seen.

TSLTileValidationFn

typedef int(* TSLTileValidationFn) (char const *tileName, TSLTimeType const *lastValidTime, TSLTimeType const *modificationTime, TSLDataLayer *layer, void *arg)

Function typedef.

This function typedef is used for persistent cache tile validation. When adding a persistent cache to a TSLMapDataLayer, the user may specify a function of this type. The function is called whenever a tile needs to be validated. The name of the tile, and the timestamp at which the tile was last validated is passed.

The function should return 1 if the tile is still valid, 0 if it is no longer valid.

Parameters

tileName	The name of the tile.
lastValidTime	The time at which the tile was last validated.
modificationTime	The time at which the source tile was last modified.
layer	The layer which is making the validation request.
arg	An optional user-defined argument.

Enumeration Type Documentation

TSLArcZoneEnum

enum TSLArcZoneEnum

Enumerator
TSLArcZone_Undefined
TSLArcZone_J
TSLArcZone_H
TSLArcZone_G
TSLArcZone_F
TSLArcZone_E
TSLArcZone_D
TSLArcZone_C
TSLArcZone_B
TSLArcZone_A
TSLArcZone_1
TSLArcZone_2
TSLArcZone_3
TSLArcZone_4
TSLArcZone_5
TSLArcZone_6
TSLArcZone_7
TSLArcZone_8
TSLArcZone_9

TSLButtonType

enum TSLButtonType

This enumeration is used to describe which button was pressed for a locator (mouse) event.

Enumerator
TSLButtonLeft	Left.
TSLButtonCentre	Centre.
TSLButtonRight	Right.
TSLButtonNone

TSLCADRGScaleFactorEnum

enum TSLCADRGScaleFactorEnum

Enumerated Type for the available CADRG/CIB Scales.

Enumerator
TSLCadrgScaleFactorUndefined
TSLCadrgScaleFactor_1_IN_9M	CADRG Scale 1:9,000,000 - non standard series code.
TSLCadrgScaleFactor_1_IN_5M	CADRG Scale 1:5,000,000.
TSLCadrgScaleFactor_1_IN_2M
TSLCadrgScaleFactor_1_IN_1M
TSLCadrgScaleFactor_1_IN_500K	CADRG Scale 1:500,000.
TSLCadrgScaleFactor_1_IN_250K
TSLCadrgScaleFactor_1_IN_100K
TSLCadrgScaleFactor_1_IN_50K
TSLCadrgScaleFactor_1_IN_12pt5K
TSLCadrgScaleFactor_1_IN_200K
TSLCadrgScaleFactor_1_IN_125K
TSLCadrgScaleFactor_1_IN_25K
TSLCadrgScaleFactor_1_IN_24K
TSLCadrgScaleFactor_1_IN_10K
TSLCadrgScaleFactor_1_IN_10560
TSLCadrgScaleFactor_1_IN_11000
TSLCadrgScaleFactor_1_IN_11800
TSLCadrgScaleFactor_1_IN_12000
TSLCadrgScaleFactor_1_IN_12800
TSLCadrgScaleFactor_1_IN_14000
TSLCadrgScaleFactor_1_IN_14700
TSLCadrgScaleFactor_1_IN_15000
TSLCadrgScaleFactor_1_IN_15500
TSLCadrgScaleFactor_1_IN_16000
TSLCadrgScaleFactor_1_IN_16666
TSLCadrgScaleFactor_1_IN_17000
TSLCadrgScaleFactor_1_IN_17500
TSLCadrgScaleFactor_1_IN_18000
TSLCadrgScaleFactor_1_IN_20000
TSLCadrgScaleFactor_1_IN_21000
TSLCadrgScaleFactor_1_IN_21120
TSLCadrgScaleFactor_1_IN_22000
TSLCadrgScaleFactor_1_IN_23000
TSLCadrgScaleFactor_1_IN_25000
TSLCadrgScaleFactor_1_IN_26000
TSLCadrgScaleFactor_1_IN_35000
TSLCadrgScaleFactor_1_IN_36000
TSLCadrgScaleFactor_0pt5M	CIB 0.5 meter.
TSLCadrgScaleFactor_1M	CIB 1 meter.
TSLCadrgScaleFactor_2M	CIB 2 meter.
TSLCadrgScaleFactor_5M	CIB 5 meter.
TSLCadrgScaleFactor_10M	CIB 10 meter.
TSLCadrgScaleFactor_37pt5M	RDTED 1:250,000 (Note: RDTED is not supported by the CADRG DataLayer.)
TSLCadrgScaleFactor_150M	RDTED 1:1M (Note: RDTED is not supported by the CADRG DataLayer.)
TSLCadrgScaleFactor_750M	RDTED 1:5M (Note: RDTED is not supported by the CADRG DataLayer.)
TSLCadrgScaleFactor1_5M	Deprecated.
TSLCadrgScaleFactor1_2M	Deprecated.
TSLCadrgScaleFactor1_1M	Deprecated.
TSLCadrgScaleFactor1_500K	Deprecated.
TSLCadrgScaleFactor1_250K	Deprecated.
TSLCadrgScaleFactor1_100K	Deprecated.
TSLCadrgScaleFactor1_50K	Deprecated.
TSLCadrgScaleFactor1_15K	Deprecated.
TSLCadrgScaleFactor1_14K	Deprecated.
TSLCadrgScaleFactor1_13K	Deprecated.
TSLCadrgScaleFactor1_12K	Deprecated.
TSLCadrgScaleFactor1_11K	Deprecated.
TSLCadrgScaleFactor1_10K	Deprecated.
TSLCadrgScaleFactor1_9K	Deprecated.
TSLCadrgScaleFactor1_8K	Deprecated.
TSLCadrgScaleFactor1_7K	Deprecated.
TSLCadrgScaleFactor1_6K	Deprecated.
TSLCadrgScaleFactor1_5K	Deprecated.

TSLCompressionResult

enum TSLCompressionResult

Enumerated type for the result of compression and decompression.

Enumerator
TSLSuccess	it worked
TSLOutOfMemory	no memory
TSLHeaderIncorrect	decompression failed because data did not begin with a valid compression header; data not compressed?
TSLFailed	algorithm failed to decompress the data
TSLFileError	error reading or writing file

TSLCursorStyle

enum TSLCursorStyle

This enumeration defines the different types of cursor style that may be supplied to the application via the various MapLink classes, such as TSLEditorRequest or TSLInteractionModeRequest

Enumerator
TSLCursorStyleNone
TSLCursorStyleSelectEntity
TSLCursorStyleSelectPosition
TSLCursorStyleSelectPoint
TSLCursorStyleDraw
TSLCursorStyleScaleEqual
TSLCursorStyleScaleUnequal
TSLCursorStyleScaleNorth_South
TSLCursorStyleScaleEast_West
TSLCursorStyleScaleNorthEast_SouthWest
TSLCursorStyleScaleNorthWest_SouthEast
TSLCursorStyleBusy
TSLCursorStyleMoveEntity
TSLCursorStyleRotate
TSLCursorStyleMovePoint
TSLCursorStyleEnterText
TSLCursorStyleZoomToRectangle
TSLCursorStylePanToPoint
TSLCursorStyleMagnify
TSLCursorStyleQuery
TSLCursorStyleGrab
TSLCursorStyleDrop
TSLCursorStyleUserCursorBase
TSLCursorStyleUserCursorEnd

TSLDataLayerTypeEnum

enum TSLDataLayerTypeEnum

Enumerated value for the type of a TSLDataLayer.

Enumerator
TSLDataLayerTypeStandardDataLayer	The layer is a TSLStandardDataLayer.
TSLDataLayerTypeMapDataLayer	The layer is a TSLMapDataLayer.
TSLDataLayerTypeGridDataLayer	The layer is a TSLGridDataLayer.
TSLDataLayerTypeRasterDataLayer	The layer is a TSLRasterDataLayer.
TSLDataLayerTypeNationalGridDataLayer	The layer is a TSLNationalGridDataLayer.
TSLDataLayerTypeCADRGDataLayer	The layer is a TSLCADRGDataLayer.
TSLDataLayerType3DStandardDataLayer	The layer is a TSL3DStandardDataLayer.
TSLDataLayerTypeCustomDataLayer	The layer is a TSLCustomDataLayer.
TSLDataLayerType3DCustomDataLayer	The layer is a TSL3DCustomDataLayer.
TSLDataLayerTypeMGRSGridDataLayer	The layer is a TSLMGRSGridDataLayer.
TSLDataLayerTypeLatLonGridDataLayer	The layer is a TSLLatLongGridDataLayer.
TSLDataLayerTypeAcceleratedCustomDataLayer	The layer is a TSLAcceleratedCustomDataLayer.
TSLDataLayerType2DSatelliteDataLayer	The layer is a TSL2DSatelliteDataLayer.
TSLDataLayerType3DSatelliteDataLayer	The layer is a TSL3DSatelliteDataLayer.
TSLDataLayerTypeFilterDataLayer	The layer is a TSLFilterDataLayer.
TSLDataLayerTypeWMSDataLayer	The layer is a TSLWMSDataLayer.
TSLDataLayerTypeS63DataLayer	The layer is a TSLS63DataLayer.
TSLDataLayerTypeGARSGridDataLayer	The layer is a TSLGARSGridDataLayer.
TSLDataLayerTypeWMTSDataLayer	The layer is a TSLWMTSDataLayer.
TSLDataLayerTypeStaticMapDataLayer	The layer is a TSLStaticMapDataLayer.
TSLDataLayerTypeDirectImportDataLayer	The layer is a TSLDirectImportDataLayer.
TSLDataLayerTypeViewShed	The layer is a TSLViewShedDataLayer.
TSLDataLayerTypeDatabaseDataLayer	The layer is a TSLDatabaseDataLayer.
TSLDataLayerTypeKMLDataLayer	The layer is a TSLKMLDataLayer.
TSLDataLayerTypeHeatMapDataLayer	The layer is a TSLHeatMapDataLayer.

TSLDeclutterStatusEnum

enum TSLDeclutterStatusEnum

Enumerated type for the declutter status.

Enumerator
TSLDeclutterStatusOff	The specified feature class will never be displayed.
TSLDeclutterStatusOn	The specified feature class will always be displayed.
TSLDeclutterStatusAuto	the specified feature class will appear and disappear as the user zooms in and out according to the resolution (defined by the number of internal co-ordinates per device unit).
tsl_dcl_OFF	Deprecated versions
tsl_dcl_ON
tsl_dcl_AUTO

TSLDeclutterStatusResultEnum

enum TSLDeclutterStatusResultEnum

Enumerated type describing the return type for declutter operations.

Enumerator
TSLDeclutterStatusResultOff	The specified feature class will never be displayed.
TSLDeclutterStatusResultOn	The specified feature class will always be displayed.
TSLDeclutterStatusResultAuto	the specified feature class will appear and disappear as the user zooms in and out according to the resolution (defined by the number of internal co-ordinates per device unit).
TSLDeclutterStatusResultPartial	returned if subclasses of the specified partial feature class name have a mixture of ON, OFF or AUTO.
tsl_dcl_is_OFF	Deprecated values
tsl_dcl_is_ON
tsl_dcl_is_AUTO
tsl_dcl_is_PARTIAL

TSLDrawingSurfaceTypeEnum

enum TSLDrawingSurfaceTypeEnum

This enum identifies the drawing surface class to cast to when the user calls the type method on TSLDrawingSurfaceBase

Enumerator
TSLDrawingSurfaceTypeUnknown	This indicates that the Drawing Surface type is unknown.
TSLDrawingSurfaceTypeGDI	This indicates TSLNTSurface.
TSLDrawingSurfaceTypeX11	This indicates TSLMotifSurface.
TSLDrawingSurfaceTypeOpenGL	This indicates TSLWGLSurface, TSLGLXSurface, TSLEGLSurface or TSLNativeEGLSurface (depends on platform).
TSLDrawingSurfaceTypeDirect2D	(Future use) This indicates TSLDirect2DDrawingSurface.
TSLDrawingSurfaceTypeAcceleratorOpenGL	This indicates TSLWGLAcceleratedSurface or TSLX11GLAcceleratedSurface (depends on platform).
TSLDrawingSurfaceTypeAcceleratorDirectX	This indicates TSLDXAcceleratedSurface.
TSLDrawingSurfaceType3DOpenGL	This indicates TSL3DWinGLSurface or TSL3DXGLSurface (depends on platform).
TSLDrawingSurfaceType3DEarth	This indicates an instance of the 3D Earth surface (maplink::earth::Surface3D)

TSLDynamicRendererAction

enum TSLDynamicRendererAction

Enumeration detailing the action that MapLink should take after it has asked the Dynamic Renderer to draw an entity.

Enumerator
TSLDynamicRendererActionNone	Return this if the renderer has successfully drawn the entity and MapLink should continue on to the next entity.
TSLDynamicRendererActionIgnore	Return this if the Dynamic Renderer does not want the entity drawn and MapLink should continue on to the next entity.
TSLDynamicRendererActionDefault	Return this if the Dynamic Renderer wants MapLink to perform its default rendering - set up attributes accordingly and then draw the entity.
TSLDynamicRendererActionUseCurrentRendering	Return this if the Dynamic Renderer wants MapLink to render the entity using the current rendering attributes on the rendering interface instead of the entity's default rendering.

TSLErrorCategory

enum TSLErrorCategory

Defines the Error Categories that can be read from TSLErrorStack.

You can use these values to define a mask which controls the types of errors/messages you wish to query from the TSLErrorStack.

The values defined are:

TSLErrorCategoryInfo Information Message TSLErrorCategoryWarn Warning Message TSLErrorCategoryError Error Message TSLErrorCategoryFatal Fatal Error Message TSLErrorCategorySyntax Syntax Error Message TSLErrorCategoryDebug Debug Error Message TSLErrorCategoryAll All Error messages

Enumerator
TSLErrorCategoryInfo
TSLErrorCategoryWarn
TSLErrorCategoryError
TSLErrorCategoryFatal
TSLErrorCategorySyntax
TSLErrorCategoryDebug
TSLErrorCategoryAll

TSLFileLoaderCallbacks

enum TSLFileLoaderCallbacks

Lists all of the possible TSLFileLoader callback locations.

Enumerator
TSLFileLoaderCallbackBeforeDecompression	Callback generated before any decompression
TSLFileLoaderCallbackAfterDecompression	Callback generated after any decompression
TSLFileLoaderCallbackAfterProcessing	Callback generated after the file has loaded and has been processed, but before it is marked as loaded so operations can be performed on the data in a thread

TSLFileLoaderTypeEnum

enum TSLFileLoaderTypeEnum

Lists all of the possible TSLFileLoader child class types.

Enumerator
TSLFileLoaderTypeBlocking	This means the class is a TSLFileLoaderBlocking loader.
TSLFileLoaderTypeMemory	This means the class is a TSLFileLoaderMemory loader.
TSLFileLoaderTypeMT	This means the class is a TSLFileLoaderMT loader.
TSLFileLoaderTypeRemote	This means the class is a TSLFileLoaderRemote loader.
TSLFileLoaderTypeCustom

TSLFilterDisplayItemProp

enum TSLFilterDisplayItemProp

This enum defines various processing options that affect the appearance of rasters processed through the TSLFilterDataLayer. The available values are:

Enumerator
TSLFilterDisplayItemPropRasterProjectionMaintainPalette	Controls if an 8bit raster palette is maintained through the projection process. To turn this enum on pass true (1) and to turn this off pass false (0 - default) to TSLFilterDataLayerDisplatItem::setDisplayItemProp.
TSLFilterDisplayItemPropRasterProjectionDisableDithering	Controls if dithering is turned on during the projection process. To turn this enum on pass true (1) and to turn this off pass false (0 - default) to TSLFilterDataLayerDisplatItem::setDisplayItemProp.
TSLFilterDisplayItemPropRasterProjectionInterpolate	Controls the filtering algorithm used during the projection process. Setting this to true (1) causes processing to use bi-linear interpolation, resulting in higher quality output at the cost of increased processing time. The default value of false(0) causes processing to use nearest-neighbour filtering.
TSLFilterDisplayItemPropStretchBrightness	Setting this to true (1) causes processing to map the range of brightness values used in the source image to the maximum available range for the display (usually 0-255). This can improve the appearance of rasters that only use a small fraction of the available data range for their native format, particularly when the values are clustered around one edge of the range. Not all types of filter that can be used with the TSLFilterDataLayer support this option. Generally this option only has an effect on greyscale and some RGB rasters.

TSLFilterProcess

enum TSLFilterProcess

Controls how Vector and Raster data is processed.

The values can be combined using bitwise-OR.

Enumerator
TSLFilterProcessNone	No additional processing required.
TSLFilterProcessCreateBatch	Create optimised geometry.
TSLFilterProcessFlattenGroups	Return data with minimal grouping.
TSLFilterProcessComplexChecking	Sets the complex checking flag on Polygons.
TSLFilterProcessKeyHoling	Key-Hole polygons - Can be very slow, normally produces faster drawn geometry.
TSLFilterProcessDecomplexifyOnInput	Decomplexify Polygons on input - Can be slow.
TSLFilterProcessIgnorePolygonGeometryFailures	If a Polygon fails to be created because the geometry is invalid, simply ignore it.
TSLFilterProcessRasterPyramid	Raster items are created as pyramids - Can be slow.
TSLFilterProcessSeparateMaskFile	Reserved for future use.

TSLFilterProcessStatus

enum TSLFilterProcessStatus

This enumeration defines the processing status of a display item.

Enumerator
TSLFilterProcessStatusUnknown	Processing has yet to take place so it is not yet known if the display item can be successfully processed.
TSLFilterProcessStatusFail	Processing has been unsuccessful
TSLFilterProcessStatusSuccess	Processing has been completed successfully.

TSLFilterProgress

enum TSLFilterProgress

This enumeration indicates where a TSLFilterProgressCallback callback originates from.

The possible values are

TSLFilterProgressLoadData TSLFilterProgressProcess TSLFilterProgressGeolocationChange TSLFilterProgressProcessItem

A TSLFilterProgressLoadData call is made when loadData is called on the data layer

A TSLFilterProgressProcess call is made when data is processed on the datalayer either through a call to process(), processDisplayItem() or when the layer is drawn and display items that are to be drawn have not been previously processed.

A TSLProgressGeolocationChange call is made when either clearUserDefined() Geolocation or setUserDefinedGeolocation() call has been successfully made on a display item. It may also be made when setInputCoordinateSystem() has been called on a display item and the coordinate system differs from the existing one. This change requires the data to be effectively reloaded but will maintain any current settings the user has applied.

A TSLFilterProgressProcessItem callback is made to indicate the progress of a particular item being processed. Callbacks of this kind will be made between TSLFilterProgressProcess callbacks. Percentage values ranging from 0 to 100 will be sent to the user callback function for each item using this callback type.

If the user returns false to a callback, the state of the layer is affected in the following way given the callback type:

TSLFilterProgressLoadData or TSLFilterProgressGeolocationChange

• The data will be unloaded and the data layer cleared as both of these processes are key to the layer maintaining its state. Both require, however, far less time to complete then processing.

TSLFilterProgressProcess or TSLFilterProgressProcessItem

• The display item currently being processed and any remaining display items will require reprocessing

Enumerator
TSLFilterProgressLoadData
TSLFilterProgressProcess
TSLFilterProgressGeolocationChange
TSLFilterProgressProcessItem

TSLFilterType

enum TSLFilterType

Enumerated Type for the Filter Data Layers:

Locked filters require a runtime unlock code that needs to be supplied by Envitia. Please contact your sales representative.

Please contact sales if you require runtime direct import for datasets not mentioned above.

Enumerator
TSLFilterTypeNITF	NITF Filter Data-layer (locked)
TSLFilterTypeRaster	Raster Filter Data-layer
TSLFilterTypeGeoTIFF	Raster Filter Data-layer
TSLFilterTypeArcs
TSLFilterTypeASRP	Raster Filter Data-layer
TSLFilterTypeCRP	Raster Filter Data-layer (Windows only).
TSLFilterTypeGDAL	Raster Filter Data-layer (locked - Please contact support for the unlock code)

TSLFindTypeEnum

enum TSLFindTypeEnum

Enumerated type for limiting searches.

Enumerator
TSLFindTypeAll	Find all matching entities.
TSLFindTypeEntitySet	Find only TSLEntitySet objects.
TSLFindTypeText	Find only TSLText objects.
TSLFindTypeSymbol	Find only TSLSymbol objects.
TSLFindTypeCurve	Find only one-dimensional objects, TSLArc and TSLPolyline.
TSLFindTypeSurface	Find only two-dimensional objects, TSLPolygon, TSLEllipse and TSLPolygon.
TSLFindTypeArc	Find only TSLArc objects.
TSLFindTypePolyline	Find only TSLPolyline objects.
TSLFindTypeEllipse	Find only TSLEllipse objects.
TSLFindTypePolygon	Find only TSLPolygon objects.
TSLFindTypeRectangle	Find only TSLRectangle objects.

TSLGridDetailLevelChangeEnum

enum TSLGridDetailLevelChangeEnum

Modes available determining when a Grid Data Layer changes detail level.

Enumerator
TSLGridLevelChangeAutomatic	level changes are determined automatically by the GridDataLayer.
TSLGridLevelChangeManual	level changes are determined by the user setting the rendering edge styles of the Grid Lines, e.g. in the TSLLatLongGridDataLayer setting the value of the Tenths Longitude and Latitude edge styles to a value greater than 0 will enable the calculation of the Tenths grids. NOTE: If the Manual mode is used then the User needs to be aware that setting of Sub Grids at too high a zoom level will seriously impinge on performance and memory usage.

TSLInteropAttributeType

enum TSLInteropAttributeType

Enumerated type that defines the attribute types used by the TSL interoperability classes.

Enumerator
TSLInteropAttributeTypeProperties
TSLInteropAttributeTypeRendering
TSLInteropAttributeTypeDataset

TSLInteropEntityType

enum TSLInteropEntityType

Enumerated type that defines the entity types used by the TSL interoperability classes.

Enumerator
TSLInteropEntityTypeArc
TSLInteropEntityTypeEllipse
TSLInteropEntityTypePolygon
TSLInteropEntityTypePolyline
TSLInteropEntityTypeRectangle
TSLInteropEntityTypeSymbol
TSLInteropEntityTypeText
TSLInteropEntityTypeSpline
TSLInteropEntityTypeBorderedPolygon
TSLInteropEntityTypeBorder

TSLInteropError

enum TSLInteropError

Enumerated type that defines the error codes returned by the TSL interoperability classes.

Enumerator
TSLInteropErrorOK
TSLInteropErrorUndefined
TSLInteropErrorNullPointer
TSLInteropErrorCopyFailure
TSLInteropErrorIndexOutOfRange
TSLInteropErrorInconsistentExportSet
TSLInteropErrorEmptyBasefileAndAttribute
TSLInteropErrorCopyDatasetFailure
TSLInteropErrorCopyDataHandlerFailure
TSLInteropErrorExternalAttributeNotFound
TSLInteropErrorIncorrectAttributeType
TSLInteropErrorSetRendering
TSLInteropErrorProcessBorderedPolygon

TSLKeyedOption

enum TSLKeyedOption

Enumerated type describing the functions within MapLink that are protected by special license keys.

Enumerator
TSLPlatformKey	For unlocking all licenced functionality contained within a licence key. This option is not available on all platforms.
TSLKeyedLZWTIF	For LZW-compressed Tif files - no longer required.
TSLKeyedGIF	For GIF files - no longer required.
TSLKeyedShapefileImport	For run-time import of ESRI Shapefiles.
TSLKeyedShapefileExport	For run-time export of ESRI Shapefiles.
TSLKeyedMIFImport	For run-time import of MapInfo MIF files.
TSLKeyedMIFExport	For run-time export of MapInfo MIF files.
TSLKeyedMasterMapImport	For run-time import of OS MasterMap GML files.
TSLKeyedMasterMapExport	For run-time export of OS MasterMap GML files.
TSLKeyedLandLineImport	For run-time import of OS LandLine NTF files.
TSLKeyedLandLineExport	For run-time export of OS LandLine NTF files.
TSLKeyedS57Import	For run-time import of S57 files.
TSLKeyedS57Export	For run-time export of S57 files.
TSLKeyedJPEG2000	For JPEG2000 compressed files.
TSLKeyedCADRGDataLayer	For use of the TSLCADRGDataLayer class to load CADRG data at run-time.
TSLKeyedDMEDTerrainDatabase	For use of the TSLTerrainDatabase class to load DMED referenced DTED data at run-time.
TSLKeyedS63	For use of the TSLS63MediaIngestManager and TSLS63DataLayer classes to ingest and display S63 and S57 data at run-time.
TSLKeyedGML	For use of the TSLGMLInstanceDataLoader, TSLGMLApplicationSchemaLoader, TSLGMLInstanceDataWriter and TSLGMLApplicationSchemaWriter classes used to read and write GML application schemas and instance data.
TSLKeyedWFSClient	For use of the TSLWFSServer class used for interacting with a remote Web Feature Service server.
TSLKeyedS57MediaIngest	For use with the S63 SDK. This unlocks the capability of ingesting S57 (unencrypted data only) data via the TSLS63MediaIngestManager and TSLS63DataLayer classes to ingest and display of S57 data at run-time.
TSLKeyedEvaluationMap	For use with maps that have been created with an Evaluation licensed version of Studio. Unlocking this removes the drawing of the Evaluation Watermark for maps created using an Evaluation licensed version of MapLink Studio.
TSLKeyedDirectImportDataLayer	For unlocking the Direct Import SDK. This allows import of data at runtime through the TSLDirectImportDataLayer.

TSLLoaderCallbackReturn

enum TSLLoaderCallbackReturn

The return value given by the user to an asynchronous TSLFileLoader load or when the user intercepts the load process by setting up a loaded callback (see TSLFileLoader::setLoadedCallback).

Enumerator
TSLContinue	continue to download.
TSLCancelThisLoad	cancel current download. This return value is not valid for TSLLoaderFileLoadedCallback.
TSLCancelAllLoads	cancel all downloads currently in progress by this loader. This return value is not valid for TSLLoaderFileLoadedCallback.
TSLBadFileStatus	The file is bad. Returning this will cause this file to be skipped. If using a Multi-threaded loader any tiles contained in the queue may also be cancelled. Subsequent pan, zoom and draw may re-request the tiles.This return value is only valid for a TSLLoaderFileLoadedCallback.
TSLIgnoreFile	Ignore the file. This causes a dummy tile to be created. Subsequent pan, zoom and draw will only re-request the tile if the tile is no-longer in the cache. This return value is only valid for a TSLLoaderFileLoadedCallback.

TSLLoaderStatus

enum TSLLoaderStatus

Enumerated type used to return the success or failure of TSLFileLoader operations.

Enumerator
TSLLoadingOK	Success so far (loading succeeded if callback with 100% done).
TSLLoadingCancelled	Loading cancelled by callback returning CancelThisLoad or CancelAllLoads.
TSLLoadingFailedNotFound	Loading failed because the file could not be found or a connection could not be established with the remote server.
TSLLoadingFailedInternetSettings	Loading failed because the computer registry is not configured for an internet connection (try installing a web browser).
TSLLoadingFailedNoMemory	Loading failed because memory could not be allocated.
TSLLoadingFailedBadCompressionHeader	Loading failed because the section of file did not contain a valid header for decompression, maybe it is uncompressed.
TSLLoadingFailedDecompression	Loading failed because the section of compressed data could not be decompressed.
TSLLoadingFailedCompression	Compression failed (not used by loaders).
TSLLoadingFailedOpening	Loading failed during file opening.
TSLLoadingFailedReading	Loading failed during file reading.
TSLLoadingFailedClosing	Loading failed during file closure.
TSLLoadingFailedOffsetMove	Could not move to the specified offset in the file.
TSLLoadingFailedFilter	Failed to filter the data from its native format.
TSLLoadingFailedGeneral	An unexpected error occurred during file loading.
TSLLoaderDoesntDecompress	Trying to decompress a file with a loader that does not support decompression.
TSLLoaderKilled	Loading aborted because the loader has been destroyed.
TSLLoaderAccessDenied	Access to the resource was denied.
TSLLoaderIgnoreFile	Ignore the file but create a dummy tile internally.

TSLLocatorType

enum TSLLocatorType

This is the TSLLocatorType class.

It is an enumerator for locator type, press/motion/release.

Enumerator
TSLLocatorPress
TSLLocatorMotion
TSLLocatorRelease

TSLMaplCompressionOption

enum TSLMaplCompressionOption

Enumerated type to represent whether a directory is compressed or uncompressed.

Enumerator
TSLCompressedYes	Directory is compressed. If a file fails to decompress then an error is returned.
TSLCompressedNo	Directory is not compressed.
TSLCompressedDefault	Directory is uncompressed if it is local (which includes network addresses), compressed if it is remote (via http, https, ftp or gopher). If a remote file fails to decompress because it does not contain a compression header, the uncompressed data is returned without error.

TSLModifierType

enum TSLModifierType

This is the TSLModifierType class.

It is an enumerator class for modifier keys being pressed during operation.

Enumerator
TSLModifierNone
TSLModifierShift
TSLModifierControl
TSLModifierShiftAndControl

TSLOptionEnum

enum TSLOptionEnum

Enumerated type defining the options for a TSLDrawingSurface.

Enumerator
TSLOptionDoubleBuffered	Sets the double buffered flag of the TSLDrawingSurface. If this flag is true then the TSLDrawingSurface is double buffered. For maximum efficiency when using this option, always use the TSLDrawingSurface drawDU or drawUU methods. This option has no effect on the OpenGL drawing surface. Default value is False.
TSLOptionAntiAliasMonoRasters	When set, monochrome rasters are anti-aliased. This improves the display, but has a detrimental effect on raster performance. This option has no effect on the OpenGL drawing surface. Default value is False.
TSLOptionDynamicArcSupportEnabled	When set, maps are treated as dynamic arc and have their projections altered appropriately on zooming and resizing. Default value is False. A map using the Dynamic Arc coordinate system, with the TSLOptionAdjustForDynamicArc option set on the Drawing Surface, causes the TSLResizeActionEnum option to behave differently than for other configurations: TSLResizeActionNone behaves similarly to TSLResizeActionMaintainCentre. TSLResizeActionMaintainTopLeft, TSLResizeActionMaintainTopRight, TSLResizeActionMaintainBottomLeft, TSLResizeActionMaintainBottomRight may not maintain the corner absolutely when resizing on the y axis.
TSLOptionProgressiveTileZoom	When set and TSLOptionTileBufferedLayers is enabled, this option prevents display flickering when zooming in and out by displaying any available tiles for the current viewing area until buffered tiles of the correct resolution are available. For the Accelerated Drawing Surface, map tiles are generated in the background thread if a multi-threaded renderer is being used (See Also: TSLAcceleratedSurface). The default value is false.
TSLOptionTileBufferedLayers	Enabled background threaded tiling for buffered layers in this drawing surface. See TSLDrawingSurfaceTiledBufferControl for details on tiled buffering. This option is currently supported only by the TSLOpenGLSurface. The default value is false.
TSLOptionAcceleratorZoomAsynchronous	Deprecated - use TSLOptionProgressiveTiledDisplay instead

TSLPathlistCallbackReturn

enum TSLPathlistCallbackReturn

Enumerated type describing the return value given by the user to a callback from a TSLPathlist, made by 'getMatchingDirectoriesMT' when the location of a file is needed, typically by a file loader trying to locate a file.

Enumerator
TSLFileDoesNotExist	The callback has worked out that the file will definitely not exist. 'getMatchingDirectoriesMT' will return false. The file will not be found by a loader.
TSLFileLocationUnknown	The callback does not know where to find the given file. 'getMatchingDirectoriesMT' will return all directories in the pathlist that match the filename given. A loader would try these directories and the local directory as usual.
TSLFileLocationToTry	The callback has calculated a directory where the file may be found. 'getMatchingDirectoriesMT' will return a list containing the special "callback returned" value followed by all directories in the pathlist that match the filename given. A loader will try the location given by the callback, followed by all matching directories in the pathlist, followed by the local directory.
TSLFileLocationMandatory	The callback has calculated a directory where the file must be found. 'getMatchingDirectoriesMT' will return a list containing only the special "callback returned" value. A loader will try to find the file in the location specified, only.

TSLPickResultEnum

enum TSLPickResultEnum

Enumerated type defining the types for a pick operation result.

Enumerator
TSLPickEntity	Defines that the picked item was a 2D entity.
TSLPickCustom	Defines that the picked item was contained in a custom datalayer.
TSLPick3DEntity	Defines that the picked item was a 3D entity.
TSLPickDisplayObject	Defines that the picked item was a TSLDisplayObject, from the DDO API
TSLPickSatellite	Defines that the picked item was a TSLSatellite from the Satellite Propagator API
TSLPickTrack	Defines that the picked item was a TSLTrack, from the Track Manager API
TSLPickTrackGraphic	Defines that the picked item was a TSLTrackGraphic, from the Track Manager API
TSLPickEarthTrack	Defines that the picked item was an earth::Track, from the Earth SDK.
TSLPickEarthGeometry	Defines that the picked item was an earth::geometry::Geometry, from the Earth SDK.
TSLPickReserved1
TSLPickReserved2
TSLPickReserved3
TSLPickReserved4
TSLPickReserved5
TSLPickUser	Defines the first enumerated value that can be used for user-defined pick results.

TSLPriorityEnum

enum TSLPriorityEnum

Enumerated type defining the priority options to pass to TSLFileLoaderMT::setPriority.

Enumerator
TSLPriorityBelow	Sets the priority of the thread to be below that of the starting thread on NT. On UNIX the priority is set below the default starting priority (half way between the minimum and start priority).
TSLPrioritySame	Sets the priority to that of the starting thread on NT. On UNIX the priority is set to the default starting priority.
TSLPriorityMin	Sets the priority to the lowest priority on NT and the minimum on UNIX.

TSLPropertyEnum

enum TSLPropertyEnum

Enumerated type defining the properties of a TSLDataLayer when it is attached to a TSLDrawingSurface.

The properties of a datalayer may be modified via TSLDrawingSurfaceBase::setDataLayerProps.

Enumerator
TSLPropertyVisible	Sets the visibility flag of the TSLDataLayer. If this flag is true then the TSLDatalayer is drawn. Default value is true.
TSLPropertyDetect	Sets detectability of the TSLDataLayer attached to the TSLDrawingSurface. If this flag is true, the user can snap to points on entities within this layer when using the TSLEditor component. This is also required for use by the 'find' methods on the TSLDrawingSurface. Note that this does not mean that entities can be selected. Default value is false.
TSLPropertySelect	Sets selectability of the TSLDataLayer attached to the TSLDrawingSurface. If this flag is true the user can select entities within this layer when using the OperationManager component. Default value is false.
TSLPropertyTransparent	This flag is NOT a visual property. It determines if any selection or detection functions are passed to data layers beneath this layer. Default value is true.
TSLPropertyAutomatic	This is only applicable to a TSLMapDataLayer. If this flag is true, then the TSLMapDataLayer automatically handles management of the active detail layer. If this flag is false, then the user should manage the active detail layer change. Default value is true.
TSLPropertyMinTextHeight	This is the minimum allowed height, in pixels, for text to be displayed. Text smaller than this will not be shown. Default value is 3 pixels.
TSLPropertyBuffered	This flag determines whether the individual data layer is double buffered. This may be combined with double buffering on the drawing surface. A common use for this flag is for a relatively static map, with another data layer above with moving entities. Default value is false.
TSLPropertyMaxTextHeight	This is the maximum allowed height, in pixels, for text to be displayed. Text greater than this will not be shown. Default value is 250 pixels.
TSLPropertyMinZoomDisplay	The minimum zoom value to display the layer at in TMC / pixel. Default -1 -> no minimum.
TSLPropertyMaxZoomDisplay	The maximum zoom value to display the layer at in TMC / pixel. Default -1 -> no maximum.
TSLPropertyProgressiveDisplay	Enable or disable progressive display. Default 0 -> disabled. Note: this option should only be used when using a multi-threaded or remote loader.
TSLPropertyRasterContrast	Set the contrast for a raster shown in a raster data layer or map data layer. Increases or decreases the range between black and white pixels. Values are -1000 (no contrast) to 1000 (maximum contrast). Default 0 -> no adjustment.
TSLPropertyRasterBrightness	Set the brightness for a raster shown in a raster data layer or map data layer. Increases or decreases the luminance of all pixels. Values are -1000 (minimum brightness) to 1000 (maximum brightness). Default 0 -> no adjustment.
TSLPropertyRasterGamma	Set the gamma correction for a raster shown in a raster data layer or map data layer. Applies a nonlinear correction according to the standard gamma equation. The value is a positive integer which is 100 times the required gamma value, e.g. to achieve a gamma correction of 0.15, set a value of 15. Default 100, equivalent to a gamma of 1.0 -> no correction.
TSLPropertyLoadedSymbolsAndTextViewExpansion	This option affects the view extent used when drawing text and symbols in a MapDatalayer. This option will not normally be required to be used. Example uses are:- when generating tiled output, using the Accelerator SDK with vector map data. The value specified is a percentage of the view area to extend the view extent by. The default value is 0. The percentage can by greater then 100. Negative values are set to 0. Setting this option to a value greater then 0 will have an impact on performance as the amount of text and symbols drawn will increase. The size of the impact on performance will be dependent on the amount of text and symbols in the map and specifically the tiles being used. Only the currently loaded set of tiles will be used.
TSLPropertyTransparency	This option allows the data layer to be rendered transparently. The value passed should be between 0 and 255, where 255 is fully opaque and 0 is not visible. The default is 255. Either buffering on the layer or on the surface as a whole must be enabled prior to setting the layer translucency. Failure to do so will cause the layer to appear with the default translucency value of 255.
TSLPropertyNonNativeDrawing	This option allows the user to indicate to the Drawing Surface that the user is drawing geometry not using the TSLRenderingInterface or using the same drawing technology as the Drawing Surface. These options are only applicable to layers that the user draws. The default rendering is assumed to be via the TSLRenderingInterface or the same drawing technology as the Drawing Surface. See the documentation for each type of drawing surface for details on how non native rendering should be used with that surface. Setting this property will have no effect on the NT or X11 surface.
TSLPropertyRealtimeReprojection	This option allows the user to indicate to the TSLOpenGLSurface that the layer should be re-projected at runtime using the GPU. This option will only work with the OpenGL Drawing Surface (Desktop). OpenGL 4.4 support is required.
TSLPropertyGeometryStreaming	This option allows the user to indicate to the TSLOpenGLSurface that the layer should be rendered using geometry streaming. This is designed for layers that are static unless the view changes (examples: S52 rendering, grid data layers). When enabled, the drawing surface will capture any drawn vector geometry and save it. Until notifyChanged is called on the layer, this saved geometry will always be used. Calling notifyChanged will invalidate the saved geometry, which will then be re-captured. This option will only work with layers on an OpenGL Drawing Surface. It will not work with owner drawn geometry, raster or GDI/OGL/X11 rendering on a custom data layer. This option only works on unbuffered layers. Default value is false.
TSLPropertyDepthClear	This option allows the user to indicate to the TSLOpenGLSurface that the depth buffer should be cleared (default) or not cleared at the beginning of each layer that is drawn. Not clearing the depth buffer at the start of drawing of a layer may cause interesting Drawing effects.
TSLPropertyGeometryStreamingForceSymbolsAndTextToTop	This option allows the user to indicate to the TSLOpenGLSurface that text and symbol entities should be drawn above all others. This has been made an option because S52 rendering will be broken by it. This only ever has an effect if TSLPropertyGeometryStreaming is true. Default value is false.
tsl_visible	Deprecated.
tsl_detect	Deprecated.
tsl_select	Deprecated.
tsl_transparent	Deprecated.
tsl_automatic	Deprecated.
tsl_min_text_height	Deprecated.
tsl_buffered	Deprecated.
tsl_max_text_height	Deprecated.
tsl_min_zoom_display	Deprecated.
tsl_max_zoom_display	Deprecated.
TSLPropertyProgressiveRasterDisplay	Deprecated.

TSLRasterFilterPixelTransparency

enum TSLRasterFilterPixelTransparency

Enumeration determining how pixels in the input image may be considered to be transparent.

Pixels in the output image will be transparent if they map to transparent areas in the input image or if they map to areas outside of the input image.

Enumerator
TSLRasterFilterPixelTransparencyNone	Input pixels are not transparent.
TSLRasterFilterPixelTransparencyTrimBlack	Working in from the edges, all black pixels will be considered transparent.
TSLRasterFilterPixelTransparencyAllBlack	All black pixels in the input image will be considered transparent.
TSLRasterFilterPixelTransparencyAllColour	(Reserved for Future enhancement) All pixels of a specified colour in the input image will be considered transparent.

TSLRasterInterpolation

enum TSLRasterInterpolation

Enumerated type describing the set of interpolation options to use when warping rasters or creating raster pyramids.

Enumerator
TSLRasterInterpolationNone
TSLRasterInterpolationAverage
TSLRasterInterpolationBilinear
TSLRasterInterpolationNearestNeighbour
TSLRasterInterpolationPadding

TSLRasterType

enum TSLRasterType

Enumerator
TSLRasterTypeTiff
TSLRasterTypeTiffPackBits
TSLRasterTypeBmp
TSLRasterTypeJpeg
TSLRasterTypePCX
TSLRasterTypePNG
TSLRasterTypeJpeg2K

TSLResizeActionEnum

enum TSLResizeActionEnum

This enumerated type defines what should happen to the uuExtent during a wndResize.

This is necessary since the drawing surface cannot veto a wndResize. To avoid all applications being coded to handle this situation, these flags allow TMS to manipulate the wcExtent along specified rules, to fit within the specified wndExtent.

ResizeActionMaintainCentre/TL/TR/BL/BR all attempt to keep the tmcPerPixel and hide or expose parts of the WC space accordingly. They also assume a square aspect ratio, where the tmcPerPixel is the same in both X and Y. If a different action is required then this should be implemented explicitly by the user by passing ResizeActionNone and calling the 'resize' method with the required parameters.

A map using the Dynamic Arc coordinate system, with the TSLOptionAdjustForDynamicArc option set on the Drawing Surface, causes the TSLResizeActionEnum option to behave differently than for other configurations:

• TSLResizeActionNone behaves similarly to TSLResizeActionMaintainCentre.
• TSLResizeActionMaintainTopLeft, TSLResizeActionMaintainTopRight, TSLResizeActionMaintainBottomLeft, TSLResizeActionMaintainBottomRight may not maintain the corner absolutely when resizing on the y axis.

Note, that these actions may be changed if the coordinate space would be exceeded. In this case, the tmcPerPixel may be changed to avoid numeric overflow.

Enumerator
TSLResizeActionNone
TSLResizeActionMaintainCentre
TSLResizeActionMaintainTopLeft
TSLResizeActionMaintainTopRight
TSLResizeActionMaintainBottomLeft
TSLResizeActionMaintainBottomRight

TSLRuntimeProjectionChangedEnum

enum TSLRuntimeProjectionChangedEnum

Enumerated type indicating why the runtime projection has changed.

Enumerator
TSLRuntimeProjectionChangeOriginChangedOnly	The origin of the projection has changed.
TSLRuntimeProjectionChangeProjectionChanged	The projection has changed.

TSLSelectorActionType

enum TSLSelectorActionType

This enumerated type determines how the TSLDataLayer query algorithm proceeds as it searches for entities that match the TSLSelector object.

Note: If the entity returned is a TSLEntitySet then return TSLSelectorActionIgnoreContinue if you wish to navigate into the group to extract the entities contained in the entity set, otherwise the entire entity set will be skipped.

Enumerator
TSLSelectorActionIgnoreContinue	Ignore the entity and continue searching down the hierarchy.
TSLSelectorActionIgnoreNext	Ignore the entity and continue searching the next entity at the current level.
TSLSelectorActionSelectExit	Select the entity and return.
TSLSelectorActionSelectNext	Select the entity and continue searching the next entity at the current level.

TSLSLMEntityRefHandlerType

enum TSLSLMEntityRefHandlerType

This enumerated type is used when determining the type of a TSLSLMEntityRefHandler.

Enumerator
TSLSLMEntityRefHandlerCustomType
TSLSLMEntityRefHandlerFileType

TSLSLMEntityRefValidationEnum

enum TSLSLMEntityRefValidationEnum

This enumeration represents the possible validation states that a TSLSLMEntityRef may have. The following values are defined:

See the documentation for TSLSLMEntityRefHandler::validateEntityRef() for more information.

Enumerator
TSLSLMEntityRefValidationValid	The entity reference is correct.
TSLSLMEntityRefValidationInvalidDifferentVersion	The last imported version for the entity reference differs from what was expected.
TSLSLMEntityRefValidationInvalidNotFound	No entity reference for the given entity ID was found.
TSLSLMEntityRefValidationInvalidAlreadyFound	The entity reference already has the found flag set (i.e. this entity has been validated more than once).

TSLThreadedOptionsEnum

enum TSLThreadedOptionsEnum

This enumeration defines the threading options accepted by TSLUtilityFunctions::setThreadedOptions and returned by TSLUtilityFunctions::getThreadedOptions.

The enumeration defines a set of options which can be or'ed together in a bitwise fashion.

These options are only relevant if you are using MapLink from multiple threads. You should review the Threading section in the Developer's Guide.

Enumerator
TSLThreadedOptionsRenderingSupport	This option should be enabled if you are displaying a standard data-layer in multiple threads. This option is disabled by default.
TSLThreadedOptionsX11TTFSupport	On X11 XFT uses an internal cache which is not protected nor is it on a per Display basis. If you have setup the MapLink tslfonts.dat to use XFT True Type fonts (TTF) then you should use the methods TSLMotifSurface::lockXft() and TSLSurface::unlockXft() when ever you use a toolkit to display TTF text. This is only necessary if you are using XFT in multiple threads and XFT TTF rendering in MapLink. This option is enabled by default.
TSLThreadedOptionsPathListSupport	This option should be enabled before TSLDrawingSurface::loadStandardConfig is called. The option ensures that locking is enabled for the default TSLPathList. No other pathlist will be created with locking turned on. It is unlikely that a user will need to turn this on as long as they follow the threading notes in the TSLPathList documentation and in the Developer's Guide. This option is disabled by default.
TSLThreadedOptionsFilterProcessingSupport	This option is reserved for future use.

TSLUUEnum

enum TSLUUEnum

This enumerated type is used when setting the user unit origin on a TSLDrawingSurface.

Enumerator
TSLUUBottomLeft	Set the bottom left corner of the map as the centre of the user unit co-ordinate space.
TSLUUCentre	Set the centre of the map as the centre of the user unit co-ordinate space.
TSLUUTopRight	Set the top right corner of the map as the centre of the user unit co-ordinate space.
tsl_bottomLeft	Deprecated.
tsl_centre	Deprecated.
tsl_topRight	Deprecated.

TSLWMSVersionEnum

enum TSLWMSVersionEnum

This enumeration represents the OGC WMS Versions supported by MapLink.

Enumerator
TSLWMSVersionUnsupported
TSLWMSVersion_1_0_0	1.0.0
TSLWMSVersion_1_1_0	1.1.0
TSLWMSVersion_1_1_1	1.1.1
TSLWMSVersion_1_3_0	1.3.0
