TSLEntity Class Reference

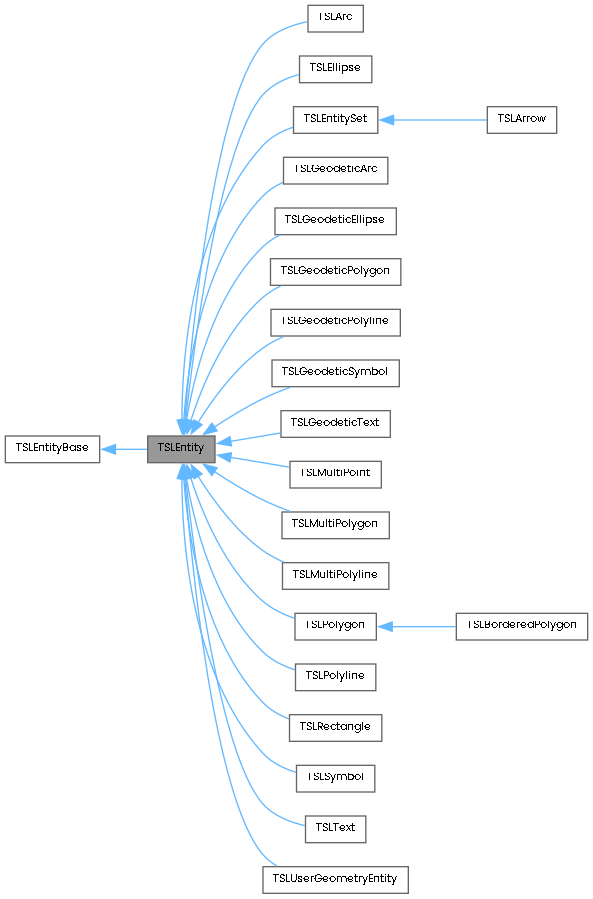

Inheritance diagram for TSLEntity:

Detailed Description

TSLEntity is an interface to a generic 2D entity.

TSLEntity and its derived classes are not instantiable classes. They may only be created by other calls to the API.

Public Member Functions
TSLCoord	centroid () const
TSLEntity *	clone () const
bool	contains (const TSLEntity *other) const
bool	crosses (const TSLEntity *other) const
void	alwaysMergeDifferences (bool _alwaysMergeDifferences)
TSLEntity *	difference (const TSLEntity *other) const
double	distance (const TSLCoord &point, bool useRenderedExtent=true, int drawingSurfaceID=-1) const
TSLEnvelope	envelope (int surfaceID=-1) const
bool	equals (const TSLEntity *other) const
TSLEntity *	intersection (const TSLEntity *other) const
bool	intersects (const TSLEntity *other) const
bool	intersects (const TSLEnvelope *envelope) const
bool	move (const TSLCoord &location, const TSLCoord &reference)
bool	overlaps (const TSLEntity *other) const
TSLEntitySet *	parent ()
const TSLEntitySet *	parent () const
void	renderLevel (int level)
int	renderLevel () const
bool	rotate (double angle, const TSLCoord *origin=NULL)
double	rotation () const
bool	rotation (double newValue)
bool	scale (double scaleParam, TSLCoord *origin=0)
bool	scaleXY (double scaleX, double scaleY, TSLCoord *origin=0)
double	squareDistance (const TSLCoord &point, bool useRenderedExtent=true, int drawingSurfaceID=-1) const
double	squareDistance (const TSLEntity *otherEntity) const
bool	touches (const TSLEntity *other) const
bool	translate (TSLTMC xoffset, TSLTMC yoffset)
TSLEntity *	unionWith (const TSLEntity *other) const
bool	within (const TSLEntity *other) const
TSLCoord	adjustedWeightedCentroid ()
	reserved for future use
TSLCoord	centreOfGravity ()
	reserved for future use
Public Member Functions inherited from TSLEntityBase
bool	addDataSet ()
bool	addDataSet (TSLDataHandler *toUseDataHandler)
bool	clearRenderingAttributes ()
TSLDataSet *	dataSet ()
const TSLDataSet *	dataSet () const
short	dataSourceID () const
void	dataSourceID (short dataSourceID)
bool	deleteDataSet ()
void	destroy ()
TSLEntityID	entityID () const
void	entityID (TSLEntityID value)
TSLFeatureID	featureID () const
void	featureID (TSLFeatureID newValue)
bool	getRendering (TSLRenderingAttributeInt attribute, int *result) const
bool	getRendering (TSLRenderingAttributeDouble attribute, double *result) const
bool	getRendering (TSLRenderingAttributeBool attribute, bool *result) const
bool	getRendering (TSLRenderingAttributes &result) const
TSL3DEntity *	is3DEntity ()
const TSL3DEntity *	is3DEntity () const
TSLEntity *	isEntity ()
const TSLEntity *	isEntity () const
bool	isOptimisedEntity () const
void	name (const char *newValue)
const char *	name () const
void	releaseResources (int surfaceID)
bool	setRendering (TSLRenderingAttributeInt attribute, int value)
bool	setRendering (TSLRenderingAttributeDouble attribute, double value)
bool	setRendering (TSLRenderingAttributeBool attribute, bool value)
bool	setRendering (const TSLRenderingAttributes &attributes)
void	sourceID (int value)
int	sourceID () const
TSLGeometryType	type () const
void	version (TSLVersion value)
TSLVersion	version () const

Static Public Member Functions
static TSLEntity *	createFromWKB (const unsigned char *wkb, unsigned int wkbLength, double TMCPerMU, double mapOffsetX=0.0, double mapOffsetY=0.0, bool multiAsEntitySet=false, double maxCurveAngle=0.0)
static TSLEntity *	createFromWKT (const char *wkt, double TMCPerMU, double mapOffsetX=0.0, double mapOffsetY=0.0, bool multiAsEntitySet=false, double maxCurveAngle=0.0)

Protected Member Functions
	~TSLEntity ()
Protected Member Functions inherited from TSLEntityBase
	~TSLEntityBase ()

Constructor & Destructor Documentation

~TSLEntity()

TSLEntity::~TSLEntity ( )

protected

Member Function Documentation

adjustedWeightedCentroid()

TSLCoord TSLEntity::adjustedWeightedCentroid

(

)

reserved for future use

alwaysMergeDifferences()

void TSLEntity::alwaysMergeDifferences

(

bool

_alwaysMergeDifferences

)

The method sets a flag to indicate that when a group difference occurs we should always merge the entity differences.

This changes the spatial difference behaviour to be non standard.

Parameters

_alwaysMergeDifferences

true to merge the entity differences, false for default behaviour.

centreOfGravity()

TSLCoord TSLEntity::centreOfGravity

(

)

reserved for future use

centroid()

TSLCoord TSLEntity::centroid

(

)

const

Query the centre of the entity extent.

This is the centre of the extent, rather than the centre of mass, which only applies to certain classes of object.

Returns a TSLCoord which is the centre of the TSLEntity.

clone()

TSLEntity * TSLEntity::clone

(

)

const

Returns a clone of the entity.

Note: You can not clone a entity which is a user geometry object.

contains()

bool TSLEntity::contains

(

const TSLEntity *

other

)

const

Tests if this entity 'spatially contains' another entity.

Parameters

other

Another entity to perform test against.

Returns

true if the other entity is contained, false otherwise.

createFromWKB()

static TSLEntity * TSLEntity::createFromWKB ( const unsigned char * wkb, unsigned int wkbLength, double TMCPerMU, double mapOffsetX = 0.0, double mapOffsetY = 0.0, bool multiAsEntitySet = false, double maxCurveAngle = 0.0 )

static

Convert from well known binary to MapLink geometry.

The following WKB types will be converted:

• Point -> TSLSymbol
• LineString -> TSLPolyline
• Polygon -> TSLPolygon
• MultiPoint -> TSLMultiPoint, or TSLEntitySet
• MultiLineString -> TSLMultiPolyline, or TSLEntitySet
• MultiPolygon -> TSLMultiPolygon, or TSLEntitySet
• GeometryCollection -> TSLEntitySet
• CircularString -> TSLPolyline (From MapLink Pro 8.2 onwards)
• CompoundCurve -> TSLPolyline (From MapLink Pro 8.2 onwards)
• CurvePolygon ->TSLPolygon (From MapLink Pro 8.2 onwards)

The coordinate system of the data will not be modified, but the coordinates of each geometry will be scaled according to the TMCPerMU value.

Any invalid geometry will be ignored, and will not be present in the output entity.

Parameters

wkb	A pointer to the well known binary data
wkbLength	The length, in bytes, of the data
TMCPerMU	The TMC per Map Unit conversion value to use when converting the geometry.
mapOffsetX	The x coordinate of the MapLink TMC coordinate space for the projected coordinate system, in map units. This can be queried from the TSLCoordinateSystem::getMapOffsets method when creating geometry compatible with a MapLink coordinate system.
mapOffsetY	The y coordinate of the MapLink TMC coordinate space for the projected coordinate system, in map units. This can be queried from the TSLCoordinateSystem::getMapOffsets method when creating geometry compatible with a MapLink coordinate system.
multiAsEntitySet	If true, all multi geometry types will be converted to entity sets. If false the TSLMultiXXX types will be used.
maxCurveAngle	The largest step in degrees along an arc when drawing curved geometry (From MapLink Pro 8.2 onwards)

createFromWKT()

static TSLEntity * TSLEntity::createFromWKT ( const char * wkt, double TMCPerMU, double mapOffsetX = 0.0, double mapOffsetY = 0.0, bool multiAsEntitySet = false, double maxCurveAngle = 0.0 )

static

Convert from well known text to MapLink geometry.

The following WKT types will be converted:

• Point -> TSLSymbol
• LineString -> TSLPolyline
• Polygon -> TSLPolygon
• MultiPoint -> TSLMultiPoint, or TSLEntitySet
• MultiLineString -> TSLMultiPolyline, or TSLEntitySet
• MultiPolygon -> TSLMultiPolygon, or TSLEntitySet
• GeometryCollection -> TSLEntitySet
• CircularString -> TSLPolyline (From MapLink Pro 8.2 onwards)
• CompoundCurve -> TSLPolyline (From MapLink Pro 8.2 onwards)
• CurvePolygon ->TSLPolygon (From MapLink Pro 8.2 onwards)

The coordinate system of the data will not be modified, but the coordinates of each geometry will be scaled according to the TMCPerMU value.

Any invalid geometry will be ignored, and will not be present in the output entity.

Parameters

wkt	The well known text string to convert
TMCPerMU	The TMC per Map Unit conversion value to use when converting the geometry.
mapOffsetX	The x coordinate of the MapLink TMC coordinate space for the projected coordinate system, in map units. This can be queried from the TSLCoordinateSystem::getMapOffsets method when creating geometry compatible with a MapLink coordinate system.
mapOffsetY	The y coordinate of the MapLink TMC coordinate space for the projected coordinate system, in map units. This can be queried from the TSLCoordinateSystem::getMapOffsets method when creating geometry compatible with a MapLink coordinate system.
multiAsEntitySet	If true, all multi geometry types will be converted to entity sets. If false the TSLMultiXXX types will be used.
maxCurveAngle	The largest step in degrees along an arc when drawing curved geometry (From MapLink Pro 8.2 onwards)

crosses()

bool TSLEntity::crosses

(

const TSLEntity *

other

)

const

Tests if this entity 'spatially crosses' another entity.

Parameters

other

Another entity to perform test against.

Returns

true if the entities cross, false otherwise.

difference()

TSLEntity * TSLEntity::difference

(

const TSLEntity *

other

)

const

Creates the spatial difference between the two entities.

Parameters

other

Another entity to perform test against.

Returns

a entity that represents the difference of the source TSLentity and another TSLEntity.

If no geometric difference is possible, then a NULL entity is returned.

distance()

double TSLEntity::distance	(	const TSLCoord &	point,
		bool	useRenderedExtent = true,
		int	drawingSurfaceID = -1 ) const

Query the shortest distance between this entity and the specified point.

Parameters

point	Position to query for distance from.
useRenderedExtent	Flag to indicate whether to use last rendered extent of object. If this flag is true, then for text and symbols, and point inside the rendered extent will return 0.0 as the distance. If this flag is false, then for text and symbols, the distance to the object position is used. Default true
drawingSurfaceID	ID of drawing surface to use for rendered extent.

Returns

the shortest distance between any points in the TSLEntity and the specified position. If the entity does not contain any points then returns 0.0 and places an error in TSLErrorStack.

envelope()

TSLEnvelope TSLEntity::envelope

(

int

surfaceID = -1

)

const

Query the minimum bounding box of the entity.

Parameters

surfaceID

an id for a drawing surface. Since some entities, such as Symbol and Text, can vary according to the zoom factor, an optional surfaceID may be passed in. This is the id that has been attached to an individual drawing surface using TSLDrawingSurface::id(). By default these id's are 0 and therefore all drawing surfaces will share a common envelope.

Returns

the minimum bounding box of the entity.

equals()

bool TSLEntity::equals

(

const TSLEntity *

other

)

const

Test for spatial equality with another entity.

Parameters

other

Another entity to perform test against.

Returns

true if the entities are the same, false otherwise.

intersection()

TSLEntity * TSLEntity::intersection

(

const TSLEntity *

other

)

const

Creates a spatial intersection between the two entities.

Parameters

other

Another entity to perform test against.

Returns

a entity that represents the intersection of the source TSLentity with another TSLEntity.

intersects() [1/2]

bool TSLEntity::intersects

(

const TSLEntity *

other

)

const

Test for spatial intersection between the two entities.

Parameters

other

Another entity to perform test against.

Returns

true if the entities intersect, false otherwise.

intersects() [2/2]

bool TSLEntity::intersects

(

const TSLEnvelope *

envelope

)

const

Test for spatial intersection between the entity and an envelope.

Parameters

envelope

Envelope to test against.

Returns

true if the entity and envelope intersect, false otherwise.

move()

bool TSLEntity::move	(	const TSLCoord &	location,
		const TSLCoord &	reference )

Moves this entity to the specified point.

Moves the TSLEntity, matching the "reference" point of the TSLEntity (can be a point which does not belong to the TSLEntity) with the point defined by "location".

Parameters

location	New position for reference point.
reference	Point to translate

Returns

true if the move occurred, false if the move could not be applied. If the move can not be applied then the entity is not changed. The only reason for the move not being applied is if an attempt is made to move the entity fully or partially outside TMC space.

overlaps()

bool TSLEntity::overlaps

(

const TSLEntity *

other

)

const

Tests if this entity 'spatially overlaps' another entity.

Parameters

other

Another entity to perform test against.

Returns

true if the entities overlap, false otherwise.

parent() [1/2]

TSLEntitySet * TSLEntity::parent

(

)

Query the entity set containing this entity.

If this is a free-standing or top-level entity, then NULL is returned.

parent() [2/2]

const TSLEntitySet * TSLEntity::parent

(

)

const

Query the read-only entity set containing this entity.

If this is a free-standing or top-level entity, then NULL is returned.

renderLevel() [1/2]

int TSLEntity::renderLevel

(

)

const

Queries the rendering level for the entity.

All entities of a specific rendering level are drawn together. Lines drawn using Multi-pass line styles have their edges merged if they are at the same rendering level. Rendering levels are drawn in the order -5 through to +5.

renderLevel() [2/2]

void TSLEntity::renderLevel

(

int

level

)

Sets the rendering level for the entity.

All entities of a specific rendering level are drawn together. Lines drawn using Multi-pass line styles have their edges merged if they are at the same rendering level. Rendering levels are drawn in the order -5 through to +5.

Parameters

level

New rendering level for entity. Valid values are -5 to +5.

rotate()

bool TSLEntity::rotate	(	double	angle,
		const TSLCoord *	origin = NULL )

Rotates the entity.

Rotates the TSLEntity anti-clockwise by angle, about specified origin. Uses centroid as the reference of the rotation if origin is NULL.

Angle is given in radians.

For entities that have an internal rotation, such as text or symbols, this adds to the rotation angle, and possibly changes the position of the entity.

For entities that contain a CoordSet, the coordinates are changed.

Parameters

angle	Angle to rotate by, in radians, anti-clockwise +ve.
origin	Point to rotate about. NULL origin uses centroid.

Returns

true if the rotate occurred, false if the rotate could not be applied. If the rotate can not be applied then the entity is not changed. The only reason for the rotate not being applied is if an attempt is made to rotate the entity fully or partially outside TMC space.

Note

TSLEntitySet rotate is done on each entity and as such is applied to all entities in turn. If one entity can not be rotated then the rotation is removed on the ones that succeeded. False will be returned in this situation.

rotation() [1/2]

double TSLEntity::rotation

(

)

const

Query the rotation angle of the entity

rotation() [2/2]

bool TSLEntity::rotation

(

double

newValue

)

Set the rotation angle of the entity

Parameters

newValue

New angle of rotation of the entity, in radians, +ve anti-clockwise from +ve X axis.

Returns

true if the rotation can be applied, false otherwise. If the rotation is not applied the entity will not have been rotated.

scale()

bool TSLEntity::scale	(	double	scaleParam,
		TSLCoord *	origin = 0 )

Scales this entity, equally in both directions.

Parameters

scaleParam	Scaling factor to apply. 0 is invalid.
origin	Origin to scale about. If origin is NULL, the origin of the scale is the centroid of the TSLEntity.

Returns

true if the scale occurred, false if the scale could not be applied. If the scale can not be applied then the entity is not changed. The possible reasons for the scale not being applied are if an attempt is made to scale the entity fully or partially outside TMC space or scaling the entity too small.

scaleXY()

bool TSLEntity::scaleXY	(	double	scaleX,
		double	scaleY,
		TSLCoord *	origin = 0 )

Scales this entity.

Parameters

scaleX	Scaling factor to apply in X. 0 is invalid.
scaleY	Scaling factor to apply in Y. 0 is invalid.
origin	Origin to scale about. If origin is NULL, the origin of the scale is the centroid of the TSLEntity.

Returns

true if the scale occurred, false if the scale could not be applied. If the scale can not be applied then the entity is not changed. The possible reasons for the scale not being applied are if an attempt is made to scale the entity fully or partially outside TMC space or scaling the entity too small.

squareDistance() [1/2]

double TSLEntity::squareDistance	(	const TSLCoord &	point,
		bool	useRenderedExtent = true,
		int	drawingSurfaceID = -1 ) const

Query the shortest square distance between the entity and the specified point.

Parameters

point	Position to query for square distance from.
useRenderedExtent	Flag to indicate whether to use last rendered extent of object. If this flag is true, then for text and symbols, and point inside the rendered extent will return 0.0 as the distance. If this flag is false, then for text and symbols, the distance to the object position is used. Default true
drawingSurfaceID	ID of drawing surface to use for rendered extent.

Returns

the shortest square distance between any points in the TSLEntity and the specified position. If the entity does not contain any points then return 0.0 and place error in TSLErrorStack.

squareDistance() [2/2]

double TSLEntity::squareDistance

(

const TSLEntity *

otherEntity

)

const

This method calculates the shortest square distance between entities.

The otherEntity may be a TSLEntitySet or series of entity sets. In this case the square distance returned is to the closest non-set entity.

The square distance is calculated for the following entity types:

• TSLPolygon
• TSLPolyline
• TSLText (point position)
• TSLSymbol (point position)
• TSLRectangle
• TSLEllipse

All other entities will cause a warning to be raised and the that entity will be ignored.

Parameters

otherEntity

entity to query the shortest distance too.

Returns

the shortest square distance to the otherEntity. If -1 is returned than an error occurred. In this case please check the error stack (TSLError*Stack)

touches()

bool TSLEntity::touches

(

const TSLEntity *

other

)

const

Tests if this entity 'spatially touches' another entity.

Parameters

other

Another entity to perform test against.

Returns

true if the entities touch, false otherwise.

translate()

bool TSLEntity::translate	(	TSLTMC	xoffset,
		TSLTMC	yoffset )

Translates this entity by delta.

Parameters

xoffset	delta applied to X coordinates.
yoffset	delta applied to Y coordinates.

Returns

true if the translate occurred, false if the translate could not be applied. If the translate can not be applied then the entity is not changed. The only reason for the translate not being applied is if an attempt is made to translate the entity fully or partially outside TMC space.

unionWith()

TSLEntity * TSLEntity::unionWith

(

const TSLEntity *

other

)

const

Creates a spatial union between the two entities.

Parameters

other

Another entity to perform test against.

Returns

a entity that represents the union of the source TSLEntity with another TSLEntity.

If no geometric union is possible, then a TSLEntitySet containing the entities is returned.

within()

bool TSLEntity::within

(

const TSLEntity *

other

)

const

Tests if this entity is 'spatially within' another entity.

Parameters

other

Another entity to perform test against.

Returns

true if the other entity is within this entity, false otherwise.
