Geometry API
MapLink Pro Developer Toolkit

Detailed Description

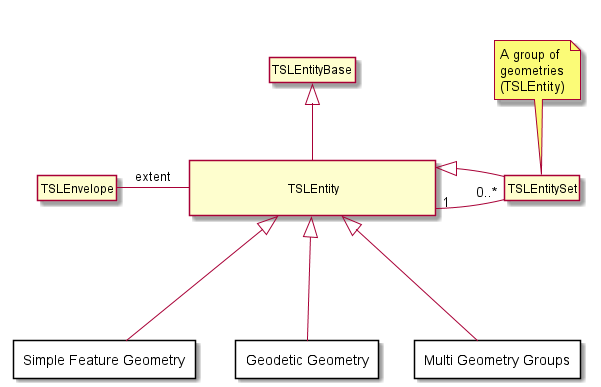

This class category contains the API classes for the underlying OpenGIS based Geometry Model of MapLink products.

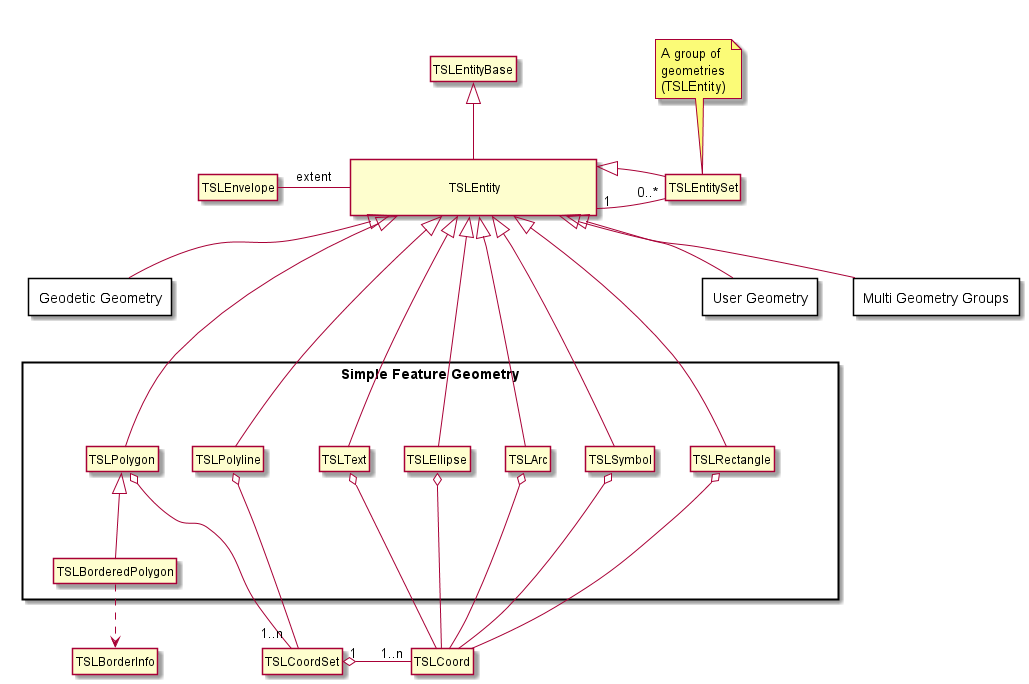

Simple Feature Geometry Package:

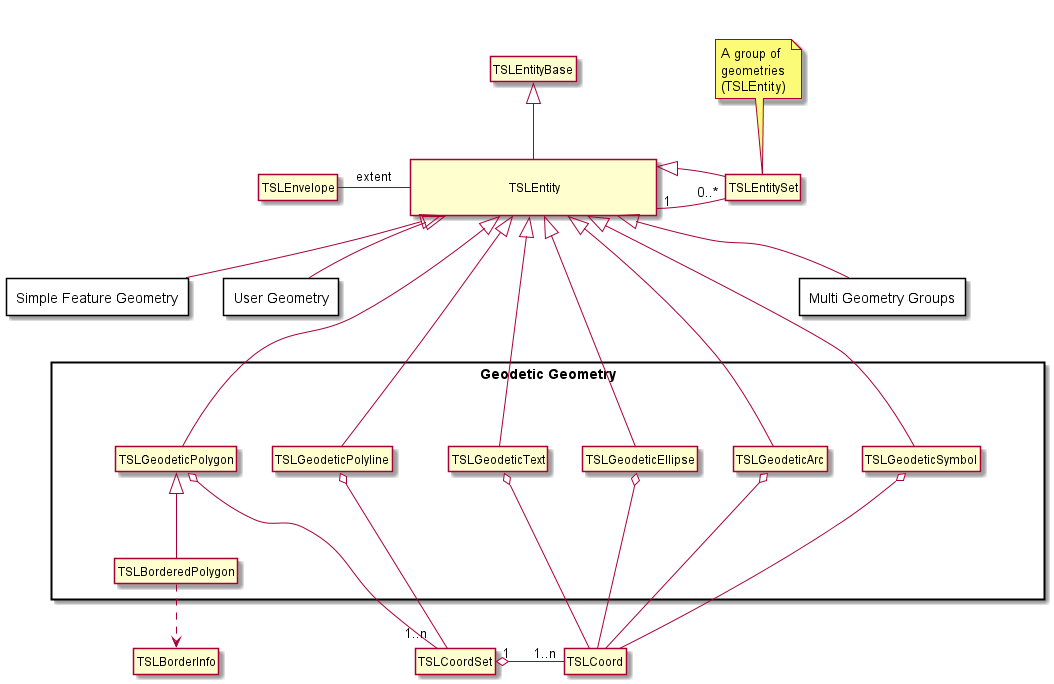

Geodetic Geometry Package:

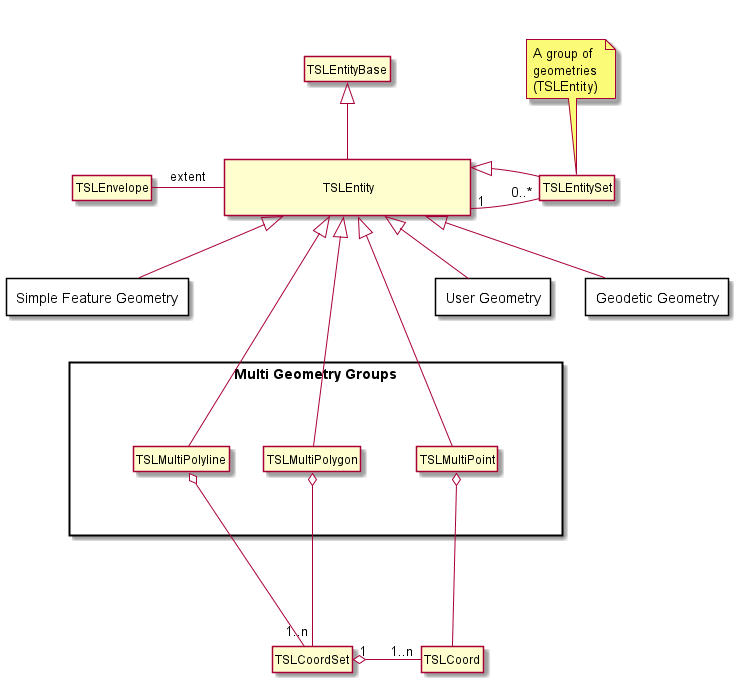

Multi Geometry Group Package:

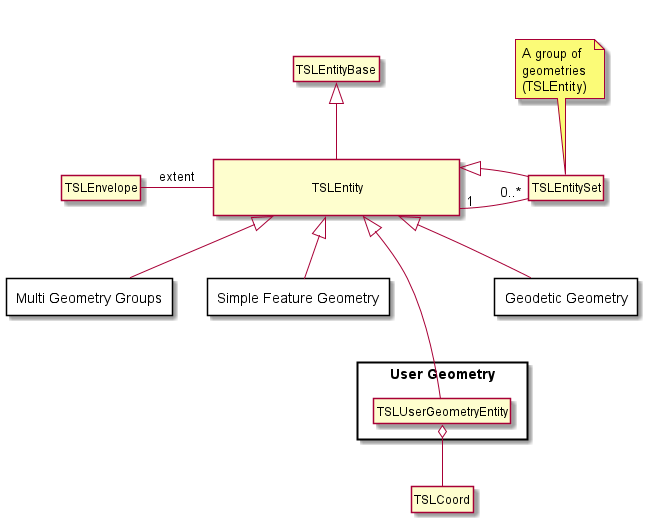

User Geometry Package:

Classes

class  TSLMUGeometry

class  TSLMUGeometrySet
 A set of Map-Unit based geometry. More...

class  TSLMUPoint

class  TSLMUPolygon
 A polygon containing geometry in Map-Units, i.e. geometry in a particular coordinate system. More...

class  TSLMUPolyline
 A polyline containing geometry in Map-Units, i.e. geometry in a particular coordinate system. More...

class  TSLArc

class  TSLArrow

class  TSLArrowHead

class  TSLArrowTail

class  TSLBorderedPolygon

class  TSLBorderInfo

class  TSLClientUserGeometryEntity

class  TSLCoordSet

class  TSLDataHandler

class  TSLDataSet

class  TSLEllipse

class  TSLEntity

class  TSLEntityBase

class  TSLEntityReferenceSet

class  TSLEntitySet

class  TSLErrorStack

class  TSLFieldDefinition

class  TSLGeodeticArc

class  TSLGeodeticEllipse

class  TSLGeodeticPolygon

class  TSLGeodeticPolyline

class  TSLGeodeticSymbol

class  TSLGeodeticText

class  TSLGeometryUtility

class  TSLifstream

class  TSLMUCoord

class  TSLMUExtent

class  TSLMultiPoint

class  TSLMultiPointPart

class  TSLMultiPolygon

class  TSLMultiPolygonPart

class  TSLMultiPolyline

class  TSLMultiPolylinePart

class  TSLofstream

class  TSLPolygon

class  TSLPolyline

class  TSLProfileHelper

class  TSLRasterBuffer

class  TSLRectangle

class  TSLRenderingAttributes

class  TSLRenderingInterface

class  TSLSymbol

class  TSLText

class  TSLThreadedErrorStack

class  TSLUserGeometryEntity

class  TSLAPP6ASymbol

class  TSLEntityIterator


Typedefs

typedef TSLClientUserGeometryEntity *(* TSLUserGeometryLoadCallback) (TSLifstream &stream, int userGeometryID, bool &assumeOwnership)


Enumerations

enum  TSLAreaRelations { TSLAreaRelationsOutside = 0 , TSLAreaRelationsOnEdge = 1 , TSLAreaRelationsInside = 2 }

enum  TSLCoordSetClassificationEnum { TSLCoordSetClassificationSimple = 0 , TSLCoordSetClassificationSelfTouching = 1 , TSLCoordSetClassificationIntersecting = 2 }

enum  TSLCoordSetExtendHint { TSLCoordSetExtendDefault = 0 , TSLCoordSetExtendByBlockSize = 1 , TSLCoordSetExtendByDoubling = 2 }

enum  TSLDimensionUnits {
  TSLDimensionUnitsMultiple = -2 , TSLDimensionUnitsUndefined = -1 , TSLDimensionUnitsPixels = 0 , TSLDimensionUnitsMapUnits = 1 ,
  TSLDimensionUnitsScaleFactor = 2 , TSLDimensionUnitsTMCs = 3 , TSLDimensionUnitsPoints = 4
}

enum  TSLEdgeEndCapStyle {
  TSLEdgeEndCapStyleMultiple = -2 , TSLEdgeEndCapStyleUndefined = -1 , TSLEdgeEndCapStyleRound = 6 , TSLEdgeEndCapStyleSquare = 7 ,
  TSLEdgeEndCapStyleButt = 8 , TSLEdgeEndCapStyleAsRenderLevel = 9
}

enum  TSLEdgeJoinStyle {
  TSLEdgeJoinStyleMultiple = -2 , TSLEdgeJoinStyleUndefined = -1 , TSLEdgeJoinStyleAsRenderLevel = 3 , TSLEdgeJoinStyleMitre = 1 ,
  TSLEdgeJoinStyleRound = 2 , TSLEdgeJoinStyleBevel = 0
}

enum  TSLEntityChange {
  TSLEntityChangeUnchanged = 0x00000001 , TSLEntityChangeGeometrically = 0x00000002 , TSLEntityChangeFeatureCode = 0x00000004 , TSLEntityChangeAttributes = 0x00000008 ,
  TSLEntityChangeDeparted = 0x0000010 , TSLEntityChangeNew = 0x00000020
}

enum  TSLFontTypeEnum { TSLFontTypeFontConfig , TSLFontTypeXLFD , TSLFontTypeFile , TSLFontTypeFontName }

enum  TSLGeodeticInterpolationOptionsEnum {
  TSLGeodeticInterpolationOptionsGeodesicPathWGS84Accurate = 0 , TSLGeodeticInterpolationOptionsGeodesicPathWGS84Spheroid = 1 , TSLGeodeticInterpolationOptionsGeodesicPathSphere = 2 , TSLGeodeticInterpolationOptionsDefault = 0 ,
  TSLGeodeticInterpolationOptionsGreatCircle = 1 , TSLGeodeticInterpolationOptionsSpherical = 2
}

enum  TSLHorizontalAlignment {
  TSLHorizontalAlignmentLeft = 0 , TSLHorizontalAlignmentCentre = 1 , TSLHorizontalAlignmentRight = 2 , TSLHorizontalAlignmentUndefined = 3 ,
  TSLHorizontalAlignmentMultiple = 4
}

enum  TSLLineScalingTypeEnum { TSLLineScalingTypeNone = 0 , TSLLineScalingTypeFatter = 1 , TSLLineScalingTypeLonger = 2 }

enum  TSLProfileWriteMode { TSLProfileWriteImmediately = 0 , TSLProfileWriteWhenFlushed = 1 }

enum  TSLRasterSymbolScalable {
  TSLRasterSymbolScalableMultiple = -2 , TSLRasterSymbolScalableUndefined = -1 , TSLRasterSymbolScalableAsSymbolFile = 0 , TSLRasterSymbolScalableDisabled = 1 ,
  TSLRasterSymbolScalableEnabled = 2
}

enum  TSLRenderingAttributeBool {
  TSLRenderingAttributeVisible = 200 , TSLRenderingAttributeSelectable , TSLRenderingAttributeReadOnly , TSLRenderingAttributeTextFixedHeight ,
  TSLRenderingAttributeTextRotatable , TSLRenderingAttributeSymbolFixedSize , TSLRenderingAttributeDepthTestStandard , TSLRenderingAttributeDepthTestDelayed ,
  TSLRenderingAttributeDepthTestNone
}

enum  TSLRenderingAttributeDouble {
  TSLRenderingAttributeTextSizeFactor = 100 , TSLRenderingAttributeSymbolSizeFactor , TSLRenderingAttributeEdgeThickness , TSLRenderingAttributeExteriorEdgeThickness ,
  TSLRenderingAttributeTextOffsetX , TSLRenderingAttributeTextOffsetY , TSLRenderingAttributeModelDistanceLOD_1 , TSLRenderingAttributeModelDistanceLOD_2 ,
  TSLRenderingAttributeModelDistanceLOD_3 , TSLRenderingAttributeModelDistanceLOD_4 , TSLRenderingAttributeMinDrawDistance , TSLRenderingAttributeMaxDrawDistance ,
  TSLRenderingAttributeTextComplexHaloRadius
}

enum  TSLRenderingAttributeInt {
  TSLRenderingAttributeEntityID = 0 , TSLRenderingAttributeFeatureID = 1 , TSLRenderingAttributeRenderLevel = 2 , TSLRenderingAttributeUserWord = 3 ,
  TSLRenderingAttributeEdgeColour = 4 , TSLRenderingAttributeEdgeStyle = 5 , TSLRenderingAttributeEdgeThicknessUnits = 6 , TSLRenderingAttributeFillColour = 7 ,
  TSLRenderingAttributeFillStyle = 8 , TSLRenderingAttributeExteriorEdgeColour = 9 , TSLRenderingAttributeExteriorEdgeStyle = 10 , TSLRenderingAttributeExteriorEdgeThicknessUnits = 11 ,
  TSLRenderingAttributeBorderWidth = 12 , TSLRenderingAttributeBorderColour = 13 , TSLRenderingAttributeTextColour = 14 , TSLRenderingAttributeTextFont = 15 ,
  TSLRenderingAttributeTextVerticalAlignment = 16 , TSLRenderingAttributeTextHorizontalAlignment = 17 , TSLRenderingAttributeTextMinPixelHeight = 18 , TSLRenderingAttributeTextMaxPixelHeight = 19 ,
  TSLRenderingAttributeTextOffsetUnits = 20 , TSLRenderingAttributeTextSizeFactorUnits = 21 , TSLRenderingAttributeTextBackgroundMode = 22 , TSLRenderingAttributeTextBackgroundColour = 23 ,
  TSLRenderingAttributeTextBackgroundStyle = 24 , TSLRenderingAttributeTextBackgroundEdgeColour = 25 , TSLRenderingAttributeSymbolColour = 26 , TSLRenderingAttributeSymbolStyle = 27 ,
  TSLRenderingAttributeSymbolMinPixelSize = 28 , TSLRenderingAttributeSymbolMaxPixelSize = 29 , TSLRenderingAttributeSymbolRotatable = 30 , TSLRenderingAttributeSymbolSizeFactorUnits = 31 ,
  TSLRenderingAttributeRasterSymbolScalable = 32 , TSLRenderingAttributeSymbolFontCharacter = 33 , TSLRenderingAttributeTextDepthTest = 34 , TSLRenderingAttributeSymbolDepthTest = 35 ,
  TSLRenderingAttributeFillDepthTest = 36 , TSLRenderingAttributeEdgeDepthTest = 37 , TSLRenderingAttributeModelStyle = 38 , TSLRenderingAttributeModelStyleLOD_1 = 39 ,
  TSLRenderingAttributeModelStyleLOD_2 = 40 , TSLRenderingAttributeModelStyleLOD_3 = 41 , TSLRenderingAttributeModelStyleLOD_4 = 42 , TSLRenderingAttributeEdgeOpacity = 45 ,
  TSLRenderingAttributeExteriorEdgeOpacity = 47 , TSLRenderingAttributeFillOpacity = 48 , TSLRenderingAttributeTextOpacity = 50 , TSLRenderingAttributeSymbolOpacity = 54 ,
  TSLRenderingAttributeEdgeJoinStyle = 43 , TSLRenderingAttributeEdgeEndCapStyle = 44 , TSLRenderingAttributeExteriorEdgeJoinStyle = 46 , TSLRenderingAttributeFillBackgroundColour = 49 ,
  TSLRenderingAttributeTextFillStyle = 51 , TSLRenderingAttributeTextFillBackgroundColour = 52 , TSLRenderingAttributeTextComplexHaloUnits = 53
}

enum  TSLRenderLevel {
  TSLRenderLevelMultiple = -7 , TSLRenderLevelUndefined = -6 , TSLRenderLevelMinusFive = -5 , TSLRenderLevelMinusFour = -4 ,
  TSLRenderLevelMinusThree = -3 , TSLRenderLevelMinusTwo = -2 , TSLRenderLevelMinusOne = -1 , TSLRenderLevelZero = 0 ,
  TSLRenderLevelPlusOne = 1 , TSLRenderLevelPlusTwo = 2 , TSLRenderLevelPlusThree = 3 , TSLRenderLevelPlusFour = 4 ,
  TSLRenderLevelPlusFive = 5
}

enum  TSLSymbolRotation {
  TSLSymbolRotationMultiple = -2 , TSLSymbolRotationUndefined = -1 , TSLSymbolRotationAsSymbolFile = 0 , TSLSymbolRotationDisabled = 1 ,
  TSLSymbolRotationEnabled = 2
}

enum  TSLTextBackgroundMode {
  TSLTextBackgroundModeMultiple = -2 , TSLTextBackgroundModeUndefined = -1 , TSLTextBackgroundModeNone = 0 , TSLTextBackgroundModeHalo = 1 ,
  TSLTextBackgroundModeRectangle = 2 , TSLTextBackgroundModeComplexHalo = 3
}

enum  TSLTextEncoding {
  TSLTextEncodingUndefined = UINT_MAX , TSLTextEncodingSystemCodePage = 0 , TSLTextEncodingUTF8 = 65001 , TSLTextEncodingUTF16 = 1200 ,
  TSLTextEncodingUTF32 = 12000 , TSLTextEncodingUTF32BE = 12001 , TSLTextEncodingCP1252 = 1252 , TSLTextEncodingISO8859_1 = 28591 ,
  TSLTextEncodingASCII = 20127
}

enum  TSLTextRotation { TSLTextRotationMultiple = -2 , TSLTextRotationUndefined = -1 , TSLTextRotationDisabled = 0 , TSLTextRotationEnabled = 1 }

enum  TSLVerticalAlignment {
  TSLVerticalAlignmentFullBottom = 0 , TSLVerticalAlignmentBaseline = 1 , TSLVerticalAlignmentMiddle = 2 , TSLVerticalAlignmentCapitalTop = 3 ,
  TSLVerticalAlignmentFullTop = 4 , TSLVerticalAlignmentUndefined = 5 , TSLVerticalAlignmentMultiple = 6
}

enum  TSLDrawModeEnum {
  TSLDrawModeRegular , TSLDrawModeBatched , TSLDrawModeStatic , TSLDrawModeProjected ,
  TSLDrawModeProjectedDraw
}

enum  TSLPolygonValidationStatus {
  TSLPolygonValidationFailed = -1 , TSLPolygonValidationOK = 0 , TSLPolygonValidationModifiedButOK = 1 , TSLPolygonValidationComplex = 2 ,
  TSLPolygonValidationModifiedAndComplex = 3
}


Typedef Documentation

◆ TSLUserGeometryLoadCallback

typedef TSLClientUserGeometryEntity *(* TSLUserGeometryLoadCallback) (TSLifstream &stream, int userGeometryID, bool &assumeOwnership)

This function typedef defines the signature for a callback routine that is required to be called to load a user defined Geometry Entity.

Implementation: TSLClientUserGeometryEntity* loadUserGeometryCallback( TSLifstream& stream, int userGeometryID, bool& assumeOwnership );

All registered callbacks will be called, in order, until the one that returns a client for the userGeometryID is found. Implementations must therefore expect a mismatch between the userGeometryID.

Parameters
streamThe input file stream that has had the data copied into.
userGeometryIDA value that uniquely identifies the User Geometry object.
assumeOwnershipThe user should set this value based upon whether the returned callback should become owned by the MapLink created TSLUserGeometryEntity. True indicates ownership is transferred, whilst false implies that the returned object remains owned by the user. This is important if the code calling MapLink was not built using the same compiler version, for instance when using differing versions of Microsoft Visual Studio.
ReturnValue

The callback should return the TSLClientUserGeometryEntity object or NULL.

Enumeration Type Documentation

◆ TSLAreaRelations

enum TSLAreaRelations

Enumerated type describing area relations.

Enumerator
TSLAreaRelationsOutside
TSLAreaRelationsOnEdge
TSLAreaRelationsInside

◆ TSLCoordSetClassificationEnum

enum TSLCoordSetClassificationEnum
Enumerator
TSLCoordSetClassificationSimple
TSLCoordSetClassificationSelfTouching
TSLCoordSetClassificationIntersecting

◆ TSLCoordSetExtendHint

enum TSLCoordSetExtendHint

Enumerated type describing the way in which a TSLCoordSet allocates new memory when its capacity is exceeded.

Enumerator
TSLCoordSetExtendDefault

The default. An unspecified allocation mechanism.

TSLCoordSetExtendByBlockSize

Each time the capacity is exceeded, the memory is extended in blocks, the size of which you can specify.

TSLCoordSetExtendByDoubling

Each time the capacity is exceeded, the capacity is doubled.

◆ TSLDimensionUnits

enum TSLDimensionUnits

Enumerated type used to indicate how various sizing and offset parameters should be interpreted. It presently applies to edge thickness, text offsets and text and symbol sizes.

When undefined, the default varies according to application. For example the default for edge thickness is Pixels, whilst the default for text and symbol size is ScaleFactor. This is for compatibility with previous releases of MapLink.

Note:

  1. The ScaleFactor interpretation is only relevant for text and symbol sizing, not for other offsets or thickness parameters.
  2. The Points interpretation only affects line thickness, text size, text offsets and symbol size.
  3. There are 72 points to an inch.
Enumerator
TSLDimensionUnitsMultiple

Used for Editor queries when multiple selections have different values.

TSLDimensionUnitsUndefined

The default, varies according to application.

TSLDimensionUnitsPixels

Pixels.

TSLDimensionUnitsMapUnits

Map units.

TSLDimensionUnitsScaleFactor

Scale factor.

TSLDimensionUnitsTMCs

TMCs.

TSLDimensionUnitsPoints

Points.

◆ TSLDrawModeEnum

enum TSLDrawModeEnum
Enumerator
TSLDrawModeRegular

Single pass mode. Currently there is no possible developer optimisations available for this mode.

TSLDrawModeBatched

Single pass mode. Currently there is no possible developer optimisations available for this mode.

TSLDrawModeStatic

Single pass mode.Currently there is no possible developer optimisations available for this mode.

TSLDrawModeProjected

This is the first pass of the vector reprojection drawing. The developer should ensure that all necessary changes to any layers they are rendering is done in this pass. The notify changed flag should be set on any changed layers and a normal draw should be performed.

TSLDrawModeProjectedDraw

This is the second pass of the vector reprojection drawing. The developer should not modify the layers they are rendering in this pass. They should just draw as normal.

◆ TSLEdgeEndCapStyle

enum TSLEdgeEndCapStyle

Reserved for Future Enhancements.

Enumerated type describing the End Cap style for lines.

Enumerator
TSLEdgeEndCapStyleMultiple
TSLEdgeEndCapStyleUndefined

As Render Level.

TSLEdgeEndCapStyleRound
TSLEdgeEndCapStyleSquare
TSLEdgeEndCapStyleButt
TSLEdgeEndCapStyleAsRenderLevel

The End Cap that is drawn matches the setting for the Render Level. End caps are set up specially for lines drawn in maps for roads that cross other roads etc...

◆ TSLEdgeJoinStyle

enum TSLEdgeJoinStyle

Reserved for Future Enhancements.

Enumerated type describing the Join style for lines.

Enumerator
TSLEdgeJoinStyleMultiple
TSLEdgeJoinStyleUndefined

As Render Level.

TSLEdgeJoinStyleAsRenderLevel
TSLEdgeJoinStyleMitre
TSLEdgeJoinStyleRound
TSLEdgeJoinStyleBevel

◆ TSLEntityChange

enum TSLEntityChange

This enumeration defines modifications that have been made to an entity. This is currently used by the TSLSeamlessLayerManager.

Enumerator
TSLEntityChangeUnchanged

The entity has not been modified.

TSLEntityChangeGeometrically

The entity has had its coordinate(s) modified.

TSLEntityChangeFeatureCode

The entity has had its feature code changed.

TSLEntityChangeAttributes

The attributes contained within the entity's dataset has changed.

TSLEntityChangeDeparted

The entity has been deleted by the update.

TSLEntityChangeNew

The entity has been added by the update and did not previously exist.

◆ TSLFontTypeEnum

enum TSLFontTypeEnum
Enumerator
TSLFontTypeFontConfig
TSLFontTypeXLFD
TSLFontTypeFile
TSLFontTypeFontName

◆ TSLGeodeticInterpolationOptionsEnum

enum TSLGeodeticInterpolationOptionsEnum

Specifies interpolation options for geodetic primitives. These flags are mutually exclusive.

Note that interpolation can be turned on and off independently of these flags, and if interpolation is off, these flags will be ignored.

  • TSLGeodeticInterpolationOptionsGeodesicPathWGS84Accurate: This applies a geodesic path (great circle) to the reference ellipsoid, WGS84.
  • TSLGeodeticInterpolationOptionsGeodesicPathWGS84Spheroid: This applies a geodesic path (great circle) to the reference ellipsoid, WGS84, but ignores the flattening value so is less accurate but slightly faster than the TSLGeodeticInterpolationOptionsGeodesicPathWGS84Accurate option.
  • TSLGeodeticInterpolationOptionsGeodesicPathSphere:This applies a geodesic path (great circle) but treats the Earth as a sphere. This is the least accurate but fastest option.

Deprecated values:

  • TSLGeodeticInterpolationOptionsDefault: default interpolation.
  • TSLGeodeticInterpolationOptionsGreatCircle: use great circles to interpolate instead of the default method.
  • TSLGeodeticInterpolationOptionsSpherical: assume the Earth is a sphere when interpolating (if not present, assume Earth is a spheroid).
Enumerator
TSLGeodeticInterpolationOptionsGeodesicPathWGS84Accurate
TSLGeodeticInterpolationOptionsGeodesicPathWGS84Spheroid
TSLGeodeticInterpolationOptionsGeodesicPathSphere
TSLGeodeticInterpolationOptionsDefault

Deprecated.

TSLGeodeticInterpolationOptionsGreatCircle

Deprecated.

TSLGeodeticInterpolationOptionsSpherical

Deprecated.

◆ TSLHorizontalAlignment

enum TSLHorizontalAlignment

Enumerated type describing horizontal text alignment.

Enumerator
TSLHorizontalAlignmentLeft
TSLHorizontalAlignmentCentre
TSLHorizontalAlignmentRight
TSLHorizontalAlignmentUndefined
TSLHorizontalAlignmentMultiple

used for Editor queries when multiple selections have different values

◆ TSLLineScalingTypeEnum

enum TSLLineScalingTypeEnum
Enumerator
TSLLineScalingTypeNone
TSLLineScalingTypeFatter
TSLLineScalingTypeLonger

◆ TSLPolygonValidationStatus

enum TSLPolygonValidationStatus
Enumerator
TSLPolygonValidationFailed
TSLPolygonValidationOK
TSLPolygonValidationModifiedButOK
TSLPolygonValidationComplex
TSLPolygonValidationModifiedAndComplex

◆ TSLProfileWriteMode

enum TSLProfileWriteMode

Enumerated type describing the Write mode for profile helper.

Enumerator
TSLProfileWriteImmediately
TSLProfileWriteWhenFlushed

◆ TSLRasterSymbolScalable

enum TSLRasterSymbolScalable

Enumerated type describing the scalability mode for raster symbols only.

Enumerator
TSLRasterSymbolScalableMultiple

used for Editor queries when multiple selections have different values

TSLRasterSymbolScalableUndefined
TSLRasterSymbolScalableAsSymbolFile

use the default Enabled / Disabled setting from the symbols file

TSLRasterSymbolScalableDisabled
TSLRasterSymbolScalableEnabled

◆ TSLRenderingAttributeBool

enum TSLRenderingAttributeBool

Rendering attributes for Entities and features. The methods which use this enum use C++ function overloading to provide some measure of type safety. All rendering attributes in this enum are of integer type. Some attributes are available on all entities, others are specific to an entity type. Note that some of the attributes listed below are not available for feature-based rendering.

Note that TSLRenderingAttributeReadOnly only applies to rendering attributes such as colours/styles and does not prevent the geometry from being modified.

Available on all entities, but not features:

  • TSLRenderingAttributeVisible
  • TSLRenderingAttributeSelectable
  • TSLRenderingAttributeReadOnly

Available on all TSLText entities and features:

  • TSLRenderingAttributeTextFixedHeight : Deprecated, use min and max height instead.
  • TSLRenderingAttributeTextRotatable

Available on all TSLSymbol entities and features:

  • TSLRenderingAttributeSymbolFixedSize : Deprecated, use min and max height instead.
Enumerator
TSLRenderingAttributeVisible
TSLRenderingAttributeSelectable
TSLRenderingAttributeReadOnly
TSLRenderingAttributeTextFixedHeight
TSLRenderingAttributeTextRotatable
TSLRenderingAttributeSymbolFixedSize
TSLRenderingAttributeDepthTestStandard
TSLRenderingAttributeDepthTestDelayed
TSLRenderingAttributeDepthTestNone

◆ TSLRenderingAttributeDouble

enum TSLRenderingAttributeDouble

Rendering attributes for Entities and features. The methods which use this enum use C++ function overloading to provide some measure of type safety. All rendering attributes in this enum are of double type.

Available on TSLText entities and features:

  • TSLRenderingAttributeTextSizeFactor : Units defined by TSLRenderingAttributeTextSizeFactorUnits
  • TSLRenderingAttributeTextOffsetX : Units defined by TSLRenderingAttributeTextOffsetUnits
  • TSLRenderingAttributeTextOffsetY : Units defined by TSLRenderingAttributeTextOffsetUnits

Available on TSLArc and TSLPolyline entities and features:

  • TSLRenderingAttributeEdgeThickness : Units defined by TSLRenderingAttributeEdgeThicknessUnits

Available on TSLPolygon and TSLBorderedPolygon entities and features:

  • TSLRenderingAttributeExteriorEdgeThickness : Units defined by TSLRenderingAttributeExteriorEdgeThicknessUnits

Available on all TSLSymbol entities and features:

  • TSLRenderingAttributeSymbolSizeFactor : Units defined by TSLRenderingAttributeSymbolSizeFactorUnits

Available on TSL3DModel entities and features:

  • TSLRenderingAttributeModelDistanceLOD_1 : Defines the point at which this model is display at (distance from eye in meters).
  • TSLRenderingAttributeModelDistanceLOD_2 : Defines the point at which this model is display at (distance from eye in meters).
  • TSLRenderingAttributeModelDistanceLOD_3 : Defines the point at which this model is display at (distance from eye in meters).
  • TSLRenderingAttributeModelDistanceLOD_4 : Defines the point at which this model is display at (distance from eye in meters).

Available on TSL3DEntity entities and features:

  • TSLRenderingAttributeMinDrawDistance

  • TSLRenderingAttributeMaxDrawDistance

    Defines the range, in meters, between which the entity is drawn.

    Range is defined as: [MinDrawDistance..MaxDrawDistance[

    Negative values mean that the distance is ignored.

    The distance calculated is the distance from the near clip plane in meters to the centre of the Bounding Box for the entity.

    These settings help you structure your drawing objects in such a way to improve the drawing performance by creating 'Levels of Detail', either by using a group structure or via setting particular display ranges on individual entities.

    For example; this works by having a top level group and then at least two groups below this. One group specifies the near drawing range and the other the drawing range for further away, for example:

    Group0 - [-1, -1[               (contains Group1 and Group 2)
   Group1 -  Range [-1, 10000[  (Nearer Drawing)
   Group2 -  Range [10000, -1[  (Further away Drawing)

Group1 should contain the complex drawing.
Group2 should contain a simpler drawing.

    This approach lends itself to further levels of detail. How many that are required is very dependent upon how complex your display is.

    If a display range is set on a group then the group culling will occur before the contents are checked.

Enumerator
TSLRenderingAttributeTextSizeFactor
TSLRenderingAttributeSymbolSizeFactor
TSLRenderingAttributeEdgeThickness
TSLRenderingAttributeExteriorEdgeThickness
TSLRenderingAttributeTextOffsetX
TSLRenderingAttributeTextOffsetY
TSLRenderingAttributeModelDistanceLOD_1
TSLRenderingAttributeModelDistanceLOD_2
TSLRenderingAttributeModelDistanceLOD_3
TSLRenderingAttributeModelDistanceLOD_4
TSLRenderingAttributeMinDrawDistance
TSLRenderingAttributeMaxDrawDistance
TSLRenderingAttributeTextComplexHaloRadius

Reserved for Future Enhancements

◆ TSLRenderingAttributeInt

enum TSLRenderingAttributeInt

Rendering attributes for Entities and features. The methods which use this enum use C++ function overloading to provide some measure of type safety. All rendering attributes in this enum are of integer type. Some attributes are available on all entities, others are specific to an entity type. Note that some of the attributes listed below are not available for feature-based rendering.

Some rendering attributes are only used by certain drawing surfaces. Specifically:

  • All Opacity rendering attributes are only honoured by the OpenGL drawing surface.

Available on all entities, but not features:

  • TSLRenderingAttributeFeatureID : User defined features may be from 1 to 16777215 (0xFFFFFF)
  • TSLRenderingAttributeRenderLevel : Valid values are -5 to +5

Available on TSLArc and TSLPolyline entities and features:

  • TSLRenderingAttributeEdgeColour : Value is index from tslcolours.dat file or map palette, or a composed RGB value. See tslcolourhelper.h for information on creating these values.
  • TSLRenderingAttributeEdgeStyle : Value is index from tsllinestyles.dat file
  • TSLRenderingAttributeEdgeThicknessUnits : Value is one of TSLDimensionUnits enum
  • TSLRenderingAttributeEdgeOpacity : Controls transparency, valid values are 0 to 32767 where 0 is fully transparent and 32767 is fully opaque.

Available on TSLEllipse, TSLPolygon and TSLBorderedPolygon entities and features:

  • TSLRenderingAttributeFillColour : Value is index from tslcolours.dat file or map palette, or a composed RGB value. See tslcolourhelper.h for information on creating these values.
  • TSLRenderingAttributeFillStyle : Value is index from tslfillstyles.dat file.
  • TSLRenderingAttributeExteriorEdgeColour : Value is index from tslcolours.dat file or map palette, or a composed RGB value. See tslcolourhelper.h for information on creating these values.
  • TSLRenderingAttributeExteriorEdgeStyle : Value is index from tsllinestyles.dat file
  • TSLRenderingAttributeExteriorEdgeThicknessUnits : Value is one of TSLDimensionUnits enum
  • TSLRenderingAttributeExteriorEdgeOpacity : Controls transparency, valid values are 0 to 32767 where 0 is fully transparent and 32767 is fully opaque.
  • TSLRenderingAttributeFillOpacity : Controls transparency, valid values are 0 to 32767 where 0 is fully transparent and 32767 is fully opaque.

Available on TSLBorderedPolygon entities:

  • TSLRenderingAttributeBorderWidth : Value is in internal TMC units
  • TSLRenderingAttributeBorderColour : Value is index from tslcolours.dat file or map palette, or a composed RGB value. See tslcolourhelper.h for information on creating these values.

Available on TSLText entities and features:

  • TSLRenderingAttributeTextColour : Value is index from tslcolours.dat file or map palette, or a composed RGB value. See tslcolourhelper.h for information on creating these values.
  • TSLRenderingAttributeTextFont : Value is index from tslfonts.dat file
  • TSLRenderingAttributeTextMinPixelHeight : Value is in pixels
  • TSLRenderingAttributeTextMaxPixelHeight : Value is in pixels
  • TSLRenderingAttributeTextOffsetUnits : Value is one of TSLDimensionUnits enum
  • TSLRenderingAttributeTextSizeFactorUnits : Value is one of TSLDimensionUnits enum
  • TSLRenderingAttributeTextVerticalAlignment : Value is one of TSLVerticalAlignment enum
  • TSLRenderingAttributeTextHorizontalAlignment : Value is one of TSLHorizontalAlignment enum
  • TSLRenderingAttributeTextBackgroundMode : Value is one of TSLTextBackgroundMode enum
  • TSLRenderingAttributeTextBackgroundColour : Value is index from tslcolours.dat file or map palette, or a composed RGB value. See tslcolourhelper.h for information on creating these values.
  • TSLRenderingAttributeTextBackgroundStyle : Value is index from tslfillstyles.dat file
  • TSLRenderingAttributeTextBackgroundEdgeColour : Value is index from tslcolours.dat file or map palette, or a composed RGB value. See tslcolourhelper.h for information on creating these values
  • TSLRenderingAttributeTextOpacity : Controls transparency, valid values are 0 to 32767 where 0 is fully transparent and 32767 is fully opaque.

Available on TSLSymbol entities and features:

  • TSLRenderingAttributeSymbolColour : Value is index from tslcolours.dat file or map palette, or a composed RGB value. See tslcolourhelper.h for information on creating these values.
  • TSLRenderingAttributeSymbolStyle : Value is index from tslsymbols.dat file
  • TSLRenderingAttributeSymbolMinPixelSize : Value is in pixels
  • TSLRenderingAttributeSymbolMaxPixelSize : Value is in pixels
  • TSLRenderingAttributeSymbolRotatable : Value is one of TSLSymbolRotation enum
  • TSLRenderingAttributeSymbolSizeFactorUnits : Value is one of TSLDimensionUnits enum
  • TSLRenderingAttributeRasterSymbolScalable : Value is one of TSLRasterSymbolScalability enum
  • TSLRenderingAttributeSymbolFontCharacter : The value is used to identify a single 32bit Unicode code point to draw from a font specified by TSLRenderingAttributeSymbolStyle.
  • TSLRenderingAttributeSymbolOpacity : Controls transparency, valid values are 0 to 32767 where 0 is fully transparent and 32767 is fully opaque.

Available on TSL3DSymbol, TSL3DAPP6ASymbol, TSLSatellite, entities and features:

  • TSLRenderingAttributeSymbolDepthTest : Value is one of TSL3DDepthTest enum. Additional limitations apply see TSL3DDepthTest documentation.

Available on TSL3DText entities and features:

Available on TSL3DPolygon, TSL3DSensor, TSL3DEllipse, TSLExtruded2DPolyline:

Available on TSL3DModel entities and features:

  • TSLRenderingAttributeModelStyle: Value is an index from the tslmodels.dat file that defines the model to display for LOD 0.
  • TSLRenderingAttributeModelStyleLOD_1: Value is an index from the tslmodels.dat file that defines the model to display for LOD 1.
  • TSLRenderingAttributeModelStyleLOD_2: Value is an index from the tslmodels.dat file that defines the model to display for LOD 2.
  • TSLRenderingAttributeModelStyleLOD_3: Value is an index from the tslmodels.dat file that defines the model to display for LOD 3.
  • TSLRenderingAttributeModelStyleLOD_4: Value is an index from the tslmodels.dat file that defines the model to display for LOD 4.

Currently not used (fill attribute takes precedence):

Enumerator
TSLRenderingAttributeEntityID

No longer supported. Use entity->getEntityID(). If used will return lower 32bits of the 64bit ID.

TSLRenderingAttributeFeatureID
TSLRenderingAttributeRenderLevel
TSLRenderingAttributeUserWord
TSLRenderingAttributeEdgeColour
TSLRenderingAttributeEdgeStyle
TSLRenderingAttributeEdgeThicknessUnits
TSLRenderingAttributeFillColour
TSLRenderingAttributeFillStyle
TSLRenderingAttributeExteriorEdgeColour
TSLRenderingAttributeExteriorEdgeStyle
TSLRenderingAttributeExteriorEdgeThicknessUnits
TSLRenderingAttributeBorderWidth
TSLRenderingAttributeBorderColour
TSLRenderingAttributeTextColour
TSLRenderingAttributeTextFont
TSLRenderingAttributeTextVerticalAlignment
TSLRenderingAttributeTextHorizontalAlignment
TSLRenderingAttributeTextMinPixelHeight
TSLRenderingAttributeTextMaxPixelHeight
TSLRenderingAttributeTextOffsetUnits
TSLRenderingAttributeTextSizeFactorUnits
TSLRenderingAttributeTextBackgroundMode
TSLRenderingAttributeTextBackgroundColour
TSLRenderingAttributeTextBackgroundStyle
TSLRenderingAttributeTextBackgroundEdgeColour
TSLRenderingAttributeSymbolColour
TSLRenderingAttributeSymbolStyle
TSLRenderingAttributeSymbolMinPixelSize
TSLRenderingAttributeSymbolMaxPixelSize
TSLRenderingAttributeSymbolRotatable
TSLRenderingAttributeSymbolSizeFactorUnits
TSLRenderingAttributeRasterSymbolScalable
TSLRenderingAttributeSymbolFontCharacter
TSLRenderingAttributeTextDepthTest
TSLRenderingAttributeSymbolDepthTest
TSLRenderingAttributeFillDepthTest
TSLRenderingAttributeEdgeDepthTest
TSLRenderingAttributeModelStyle
TSLRenderingAttributeModelStyleLOD_1
TSLRenderingAttributeModelStyleLOD_2
TSLRenderingAttributeModelStyleLOD_3
TSLRenderingAttributeModelStyleLOD_4
TSLRenderingAttributeEdgeOpacity
TSLRenderingAttributeExteriorEdgeOpacity
TSLRenderingAttributeFillOpacity
TSLRenderingAttributeTextOpacity
TSLRenderingAttributeSymbolOpacity
TSLRenderingAttributeEdgeJoinStyle

Reserved for future enhancement. Value is one of TSLEdgeJoinStyle enum.

TSLRenderingAttributeEdgeEndCapStyle

Reserved for future enhancement. Value is one of TSLEdgeEndCapStyle enum.

TSLRenderingAttributeExteriorEdgeJoinStyle

Reserved for future enhancement. Value is one of TSLEdgeJoinStyle enum.

TSLRenderingAttributeFillBackgroundColour

Reserved for future enhancement. This is the colour that will be drawn first then a pattern drawn on top will be the FillColour.

TSLRenderingAttributeTextFillStyle

Reserved for future enhancement. A fill style ID. The text will be drawn using this fill pattern.

TSLRenderingAttributeTextFillBackgroundColour

Reserved for future enhancement. See TSLRenderingAttributeFillBackgroundColour.

TSLRenderingAttributeTextComplexHaloUnits

Reserved for future enhancement. See TSLRenderingAttributeTextComplexHaloRadius, TSLTextBackgroundModeComplexHalo.

◆ TSLRenderLevel

enum TSLRenderLevel

Enumerated type describing the render level for entities. This is an enum rather than a simple integer due to the special values for undefined and multiple.

Enumerator
TSLRenderLevelMultiple

used for Editor queries when multiple selections have different values

TSLRenderLevelUndefined
TSLRenderLevelMinusFive
TSLRenderLevelMinusFour
TSLRenderLevelMinusThree
TSLRenderLevelMinusTwo
TSLRenderLevelMinusOne
TSLRenderLevelZero
TSLRenderLevelPlusOne
TSLRenderLevelPlusTwo
TSLRenderLevelPlusThree
TSLRenderLevelPlusFour
TSLRenderLevelPlusFive

◆ TSLSymbolRotation

enum TSLSymbolRotation

Enumerated type describing the rotation mode for symbols.

Enumerator
TSLSymbolRotationMultiple

used for Editor queries when multiple selections have different values

TSLSymbolRotationUndefined
TSLSymbolRotationAsSymbolFile

use the default Enabled/Disabled setting from the symbol's file

TSLSymbolRotationDisabled
TSLSymbolRotationEnabled

◆ TSLTextBackgroundMode

enum TSLTextBackgroundMode

Enumerated type describing the style of background for text objects.

Enumerator
TSLTextBackgroundModeMultiple

used for Editor queries when multiple selections have different values

TSLTextBackgroundModeUndefined
TSLTextBackgroundModeNone
TSLTextBackgroundModeHalo

Not supported in 3D.

TSLTextBackgroundModeRectangle

Not supported in 3D.

TSLTextBackgroundModeComplexHalo

Future Enhancement: see TSLRenderingAttributeTextHaloRadius , TSLRenderingAttributeTextHaloUnits.

◆ TSLTextEncoding

enum TSLTextEncoding

Enumeration for defining the character encoding of a text string.

Values map directly to windows codepage values, so that other encodings can be provided if necessary.

If TSLTextEncodingUndefined is supplied, the text string is assumed to either be in UTF-8, or the current System codepage.

Enumerator
TSLTextEncodingUndefined
TSLTextEncodingSystemCodePage
TSLTextEncodingUTF8
TSLTextEncodingUTF16
TSLTextEncodingUTF32
TSLTextEncodingUTF32BE
TSLTextEncodingCP1252
TSLTextEncodingISO8859_1
TSLTextEncodingASCII

◆ TSLTextRotation

enum TSLTextRotation

Enumerated type describing the rotation mode for text.

Enumerator
TSLTextRotationMultiple

used for Editor queries when multiple selections have different values

TSLTextRotationUndefined
TSLTextRotationDisabled
TSLTextRotationEnabled

◆ TSLVerticalAlignment

enum TSLVerticalAlignment

Enumerated type describing vertical text alignment.

Enumerator
TSLVerticalAlignmentFullBottom
TSLVerticalAlignmentBaseline
TSLVerticalAlignmentMiddle
TSLVerticalAlignmentCapitalTop
TSLVerticalAlignmentFullTop
TSLVerticalAlignmentUndefined
TSLVerticalAlignmentMultiple

used for Editor queries when multiple selections have different values
