TSLMUGeometry Class Reference

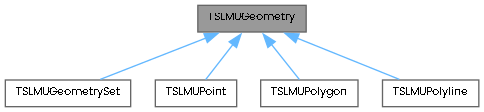

Inheritance diagram for TSLMUGeometry:

Detailed Description

The base class for map unit based geometry.

These geometry classes are designed to store vector data in a particular coordinate system. The units of this data may be degrees, metres, or any other unit considered a 'Map-Unit'.

Public Types
enum	GeometryType {   GeometryTypeNone , GeometryTypeSet , GeometryTypePoint , GeometryTypePolyline ,   GeometryTypePolygon }
	This enum represents the type of a given TSLMUGeometry instance. More...

Public Member Functions
void	destroy ()
	Destructor.
TSLMUGeometry::GeometryType	type () const
virtual TSLMUGeometry *	clone ()=0
TSLFeatureID	featureID () const
void	featureID (TSLFeatureID id)
const char *	featureName () const
void	featureName (const char *name)
unsigned int	numAttributes () const
bool	getAttribute (unsigned int index, TSLSimpleString *attributeName, TSLSimpleString *attributeValue)
const char *	getAttribute (const char *attributeName) const
void	setAttribute (const char *attributeName, const char *attributeValue)
void	clearAttribute (const char *attributeName)
void	clearAttributes ()
	Clear all attributes.
void	rotation (double rot)
double	rotation () const
virtual bool	calculateExtent (TSLMUExtent &extent) const =0

Protected Member Functions
	TSLMUGeometry (TSLMUGeometry::GeometryType type, TSLFeatureID featureID=TSLFeatureID_Default, const char *featureName=NULL)
	TSLMUGeometry (const TSLMUGeometry &other)
virtual	~TSLMUGeometry ()

Member Enumeration Documentation

GeometryType

enum TSLMUGeometry::GeometryType

This enum represents the type of a given TSLMUGeometry instance.

Enumerator
GeometryTypeNone	Undefined/no type.
GeometryTypeSet	A set of geometry.
GeometryTypePoint	A point. Represents either a MapLink symbol or a textual entity.
GeometryTypePolyline	A polyline.
GeometryTypePolygon	A polygon.

Constructor & Destructor Documentation

TSLMUGeometry() [1/2]

TSLMUGeometry::TSLMUGeometry ( TSLMUGeometry::GeometryType type, TSLFeatureID featureID = TSLFeatureID_Default, const char * featureName = NULL )

protected

TSLMUGeometry() [2/2]

TSLMUGeometry::TSLMUGeometry ( const TSLMUGeometry & other )

protected

~TSLMUGeometry()

virtual TSLMUGeometry::~TSLMUGeometry ( )

protectedvirtual

Member Function Documentation

calculateExtent()

virtual bool TSLMUGeometry::calculateExtent ( TSLMUExtent & extent ) const

pure virtual

Calculate the extent of this geometry

Parameters

extent

Will be set to this geometries extent.

Returns

true if the extent was calculated, false otherwise.

Implemented in TSLMUGeometrySet, TSLMUPoint, TSLMUPolygon, and TSLMUPolyline.

clearAttribute()

void TSLMUGeometry::clearAttribute

(

const char *

attributeName

)

Clear an attribute

Parameters

attributeName

Name of the attribute to clear.

clearAttributes()

void TSLMUGeometry::clearAttributes

(

)

Clear all attributes.

clone()

virtual TSLMUGeometry * TSLMUGeometry::clone ( )

pure virtual

Create a clone of this geometry

Returns

A clone of this geometry. This object is owned by the caller.

Implemented in TSLMUGeometrySet, TSLMUPoint, TSLMUPolygon, and TSLMUPolyline.

destroy()

void TSLMUGeometry::destroy

(

)

Destructor.

featureID() [1/2]

TSLFeatureID TSLMUGeometry::featureID

(

)

const

Query the feature ID

Returns

The feature ID.

featureID() [2/2]

void TSLMUGeometry::featureID

(

TSLFeatureID

id

)

Set the feature ID

Parameters

id	The feature ID.

featureName() [1/2]

const char * TSLMUGeometry::featureName

(

)

const

Query the feature Name

Returns

The feature name or NULL if not set.

featureName() [2/2]

void TSLMUGeometry::featureName

(

const char *

name

)

Set the feature name

Parameters

name	The feature name or NULL to clear.

getAttribute() [1/2]

const char * TSLMUGeometry::getAttribute

(

const char *

attributeName

)

const

Query the value of an attribute

Parameters

attributeName

Name of the attribute to query

Returns

The value of the attribute or NULL if the attribute isn't set.

getAttribute() [2/2]

bool TSLMUGeometry::getAttribute	(	unsigned int	index,
		TSLSimpleString *	attributeName,
		TSLSimpleString *	attributeValue )

Query an attribute by index

Parameters

index	The index of the attribute to query
attributeName	Will be set to the name of the attribute
attributeValue	Will be set to the value of the attribute

Returns

true if the attributeName and attributeValue were set, false otherwise

numAttributes()

unsigned int TSLMUGeometry::numAttributes

(

)

const

Query the number of attributes

Returns

The number of attributes assigned to this geometry

rotation() [1/2]

double TSLMUGeometry::rotation

(

)

const

Query the rotation of this geometry

Rotation is specific in radians. A positive rotation is anticlockwise

Returns

The rotation of this geometry

rotation() [2/2]

void TSLMUGeometry::rotation

(

double

rot

)

Set the rotation of this geometry

Rotation is specified in radians. A positive rotation is anticlockwise.

Parameters

rot	The rotation to set, in radians, positive anticlockwise

setAttribute()

void TSLMUGeometry::setAttribute	(	const char *	attributeName,
		const char *	attributeValue )

Set the value of an attribute

If this attribute exists it will be overwritten.

Parameters

attributeName	Name of the attribute to set
attributeValue	Value of the attribute

type()

TSLMUGeometry::GeometryType TSLMUGeometry::type

(

)

const

Query the geometry type

Returns

The geometry type of this object
