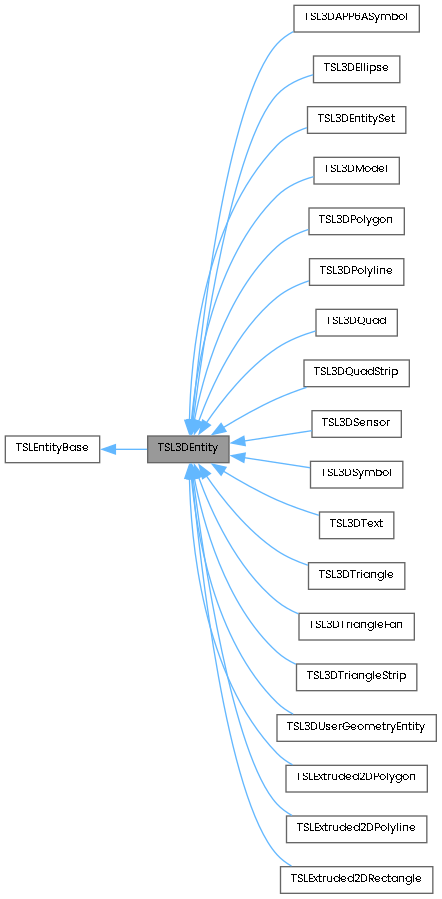

Inheritance diagram for TSL3DEntity:

[legend]

Detailed Description

TSL3DEntity is an interface to a generic 3D entity.

TSL3DEntity and its derived classes are not instantiable classes. They may only be created by other calls to the API.

Deprecated: Deprecated as of MapLink 11.1. Advised to use MapLink Earth SDK instead.

Public Member Functions
TSL3DBoundingBox	boundingBox (int surfaceID=-1) const

void	boundingBox (TSL3DCoord &bottomLeft, TSL3DCoord &topRight, int surfaceID=-1) const

TSL3DCoord	centroid () const

TSL3DEntity *	clone () const

double	distance (const TSL3DCoord &point, bool useRenderedExtent=true, int drawingSurfaceID=-1) const

bool	equals (const TSL3DEntity *other) const

void	move (const TSL3DCoord &location, const TSL3DCoord &reference)

TSL3DEntitySet *	parent ()

const TSL3DEntitySet *	parent () const

void	scale (double scaleParam, const TSL3DCoord *origin=0)

void	scale (double scaleX, double scaleY, double scaleZ, const TSL3DCoord *origin=0)

double	squareDistance (const TSL3DCoord &point, bool useRenderedExtent=true, int drawingSurfaceID=-1) const

void	translate (double latitudeOffset, double longitudeOffset, double altitudeOffset)

Public Member Functions inherited from TSLEntityBase
bool	addDataSet ()

bool	addDataSet (TSLDataHandler *toUseDataHandler)

bool	clearRenderingAttributes ()

TSLDataSet *	dataSet ()

const TSLDataSet *	dataSet () const

short	dataSourceID () const

void	dataSourceID (short dataSourceID)

bool	deleteDataSet ()

void	destroy ()

TSLEntityID	entityID () const

void	entityID (TSLEntityID value)

TSLFeatureID	featureID () const

void	featureID (TSLFeatureID newValue)

bool	getRendering (TSLRenderingAttributeInt attribute, int *result) const

bool	getRendering (TSLRenderingAttributeDouble attribute, double *result) const

bool	getRendering (TSLRenderingAttributeBool attribute, bool *result) const

bool	getRendering (TSLRenderingAttributes &result) const

TSL3DEntity *	is3DEntity ()

const TSL3DEntity *	is3DEntity () const

TSLEntity *	isEntity ()

const TSLEntity *	isEntity () const

bool	isOptimisedEntity () const

void	name (const char *newValue)

const char *	name () const

void	releaseResources (int surfaceID)

bool	setRendering (TSLRenderingAttributeInt attribute, int value)

bool	setRendering (TSLRenderingAttributeDouble attribute, double value)

bool	setRendering (TSLRenderingAttributeBool attribute, bool value)

bool	setRendering (const TSLRenderingAttributes &attributes)

void	sourceID (int value)

int	sourceID () const

TSLGeometryType	type () const

void	version (TSLVersion value)

TSLVersion	version () const

Additional Inherited Members
Protected Member Functions inherited from TSLEntityBase
	~TSLEntityBase ()

Member Function Documentation

◆ boundingBox() [1/2]

TSL3DBoundingBox TSL3DEntity::boundingBox ( int surfaceID = -1 ) const

Query the minimum bounding box of the entity.

Parameters

surfaceID an id for a drawing surface. Since some entities, such as Symbol and Text, can vary according to the zoom factor, an optional surfaceID may be passed in. This is the id that has been attached to an individual drawing surface using TSLDrawingSurface::id(). By default these id's are -1 and therefore all drawing surfaces will share a common envelope.

Returns: the minimum bounding box of the entity.

◆ boundingBox() [2/2]

void TSL3DEntity::boundingBox	(	TSL3DCoord &	bottomLeft,
		TSL3DCoord &	topRight,
		int	surfaceID = -1 ) const

Query the minimum bounding box of the entity.

Parameters

bottomLeft	Storage for bottom left of bounding box
topRight	Storage for top right of bounding box
surfaceID	an id for a drawing surface. Since some entities, such as Symbol and Text, can vary according to the zoom factor, an optional surfaceID may be passed in. This is the id that has been attached to an individual drawing surface using TSLDrawingSurface::id(). By default these IDs are -1 and therefore all drawing surfaces will share a common envelope.

◆ centroid()

TSL3DCoord TSL3DEntity::centroid ( ) const

Query the centre of the entity extent.

This is the centre of the extent, rather than the centre of mass, which only applies to certain classes of object.

Returns a TSL3DCoord which is the centre of the TSL3DEntity.

◆ clone()

TSL3DEntity * TSL3DEntity::clone ( ) const

Returns a clone of the entity.

Note: You can not clone a entity which is a user geometry object.

◆ distance()

double TSL3DEntity::distance	(	const TSL3DCoord &	point,
		bool	useRenderedExtent = true,
		int	drawingSurfaceID = -1 ) const

Query the shortest distance between this entity and the specified point.

Parameters

point	Position to query for distance from.
useRenderedExtent	Flag to indicate whether to use last rendered extent of object. If this flag is true, then for text and symbols, and point inside the rendered extent will return 0.0 as the distance. If this flag is false, then for text and symbols, the distance to the object position is used. Default true
drawingSurfaceID	ID of drawing surface to use for rendered extent.

Returns: the shortest distance between any points in the TSLEntity and the specified position. If the entity does not contain any points then returns 0.0 and places an error in TSLErrorStack.

◆ equals()

bool TSL3DEntity::equals ( const TSL3DEntity * other ) const

Test for spatial equality with another entity.

Parameters

other Another entity to perform test against.

Returns: true if the entities are the same, false otherwise.

◆ move()

void TSL3DEntity::move	(	const TSL3DCoord &	location,
		const TSL3DCoord &	reference )

Moves this entity to the specified point.

Moves the TSL3DEntity, matching the "reference" point of the TSL3DEntity (can be a point which does not belong to the TSL3DEntity) with the point defined by "location".

Parameters

location	New position for reference point.
reference	Point to translate

◆ parent() [1/2]

TSL3DEntitySet * TSL3DEntity::parent ( )

Query the entity set containing this entity.

If this is a free-standing or top-level entity, then NULL is returned.

◆ parent() [2/2]

const TSL3DEntitySet * TSL3DEntity::parent ( ) const

Query the read-only entity set containing this entity.

If this is a free-standing or top-level entity, then NULL is returned.

◆ scale() [1/2]

void TSL3DEntity::scale	(	double	scaleParam,
		const TSL3DCoord *	origin = 0 )

Scales this entity, equally in all directions.

Parameters

scaleParam	Scaling factor to apply. 0 is invalid.
origin	Origin to scale about. If origin is NULL, the origin of the scale is the centroid of the TSL3DEntity.

◆ scale() [2/2]

void TSL3DEntity::scale	(	double	scaleX,
		double	scaleY,
		double	scaleZ,
		const TSL3DCoord *	origin = 0 )

Scales this entity.

Parameters

scaleX	Scaling factor to apply in X dimension. 0 is invalid.
scaleY	Scaling factor to apply in Y dimension. 0 is invalid.
scaleZ	Scaling factor to apply in Z dimension. 0 is invalid.
origin	Origin to scale about. If origin is NULL, the origin of the scale is the centroid of the TSL3DEntity.

For extruded entities the scaleX and scaleY are applied to the 2D shape in relation to the origin and the scaleZ is applied to the whole values of the extruded altitude and height. For non-extruded entities the scale factors are applied to the 3D position of the entity in the dimensions specified where the positive Z-axis passes from the centre of the earth through the north pole, the positive X-axis passes from the centre of the earth to the latitude of 0 and longitude of 0 and the positive Y-axis passes from the centre of the earth to the latitude 0 and longitude 90.

◆ squareDistance()

double TSL3DEntity::squareDistance	(	const TSL3DCoord &	point,
		bool	useRenderedExtent = true,
		int	drawingSurfaceID = -1 ) const

Query the shortest square distance between the entity and the specified point.

Parameters

point	Position to query for square distance from.
useRenderedExtent	Flag to indicate whether to use last rendered extent of object. If this flag is true, then for text and symbols, and point inside the rendered extent will return 0.0 as the distance. If this flag is false, then for text and symbols, the distance to the object position is used. Default true
drawingSurfaceID	ID of drawing surface to use for rendered extent.

Returns: the shortest square distance between any points in the TSL3DEntity and the specified position. If the entity does not contain any points then return 0.0 and place error in TSLErrorStack.

◆ translate()

void TSL3DEntity::translate	(	double	latitudeOffset,
		double	longitudeOffset,
		double	altitudeOffset )

Translates this entity by delta.

Parameters

latitudeOffset	Offset to apply in Latitude direction.
longitudeOffset	Offset to apply in Longitude direction.
altitudeOffset	Offset to apply in Altitude direction
