TSLPickResult Class Reference

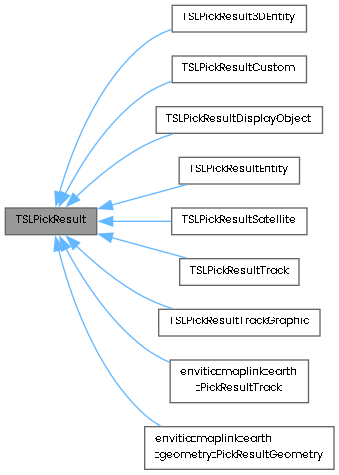

Inheritance diagram for TSLPickResult:

Detailed Description

This class represents a single result from a pick method call on a Drawing Surface.

It may not be created or destroyed by the user.

The results may be invalided by the next draw call to the Drawing Surface.

Public Member Functions
TSLPickResultEnum	queryType () const
const char *	getDataLayer () const
const TSLEnvelope &	pickExtent () const

Member Function Documentation

getDataLayer()

const char * TSLPickResult::getDataLayer

(

)

const

Get the ID of the datalayer this result is obtained from.

The Data ID is set by the TSLDataLayer during a pick operation. This allows the data layer containing result to be identified from the result set.

The return value is a pointer to the ID of the data layer containing the result.

pickExtent()

const TSLEnvelope & TSLPickResult::pickExtent

(

)

const

New in MapLink Pro 11.2.1. Specifies the search envelope that selected the entity. When wrap-around mode is enabled, this extent might only overlap the entity if the entity "circumnavigates", i.e. the entity's location has 360 added or subtracted from its longitude.

queryType()

TSLPickResultEnum TSLPickResult::queryType

(

)

const

Queries the type enumerator - TSLPickResultEnum. This allows the user to subsequently cast the TSLPickResult to a known type. Alternatively, use the static 'isType' methods on the derived versions.
