TSLAttributeValueOperation Class Reference

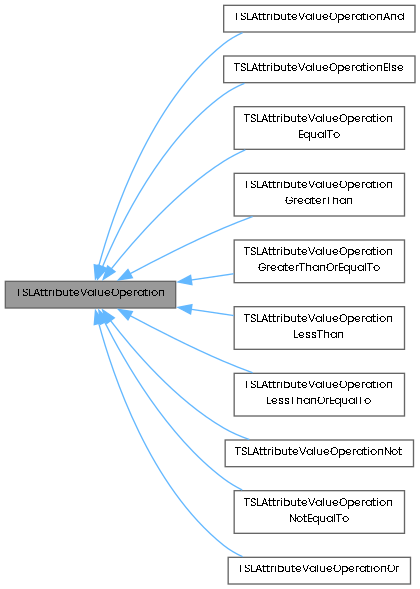

Inheritance diagram for TSLAttributeValueOperation:

Detailed Description

The base class for a MapLink classification operation, for use with TSLFeatureClassConfig and TSLFeatureClassifierGraduated classes. It is a virtual base class, and so cannot be used directly.

Its implementation relies on the following derived classes:

• TSLAttributeValueOperationAnd: Takes two operations and performs a logical AND between their results.
• TSLAttributeValueOperationElse: Provides the default case should the other operations fail.
• TSLAttributeValueOperationOr: Takes two operations and performs a logical OR between their results .
• TSLAttributeValueOperationNot: Takes two operations and performs a logical NOT between their results.
• TSLAttributeValueOperationEqualTo: Is the given attribute value the same as the operation value.
• TSLAttributeValueOperationLessThan: Is the given attribute value less than the operation value.
• TSLAttributeValueOperationGreaterThan: Is the given attribute value greater than the operation value.
• TSLAttributeValueOperationLessThanOrEqualTo: Is the given attribute value less than or equal to the operation value.
• TSLAttributeValueOperationGreaterThan: Is the given attribute value greater than or equal to the operation value.

Public Types
enum	OperationType {   OperationTypeAnd , OperationTypeElse , OperationTypeEqualTo , OperationTypeGreaterThan ,   OperationTypeGreaterThanOrEqualTo , OperationTypeLessThan , OperationTypeLessThanOrEqualTo , OperationTypeNot ,   OperationTypeNotEqualTo , OperationTypeOr }

Public Member Functions
virtual	~TSLAttributeValueOperation ()
	Destructor.
virtual TSLAttributeValueOperation::OperationType	type () const =0
virtual TSLSimpleString	operationType () const =0
virtual TSLSimpleString	operationValue () const =0
TSLRenderingAttributes &	rendering ()
const TSLRenderingAttributes &	rendering () const
const char *	featureName () const
const char *	operationName () const
void	setOperationName (const char *pOperationName)
virtual bool	operator() (const char *attributeValue) const =0
const TSLAttributeValueOperation *	operationLHS () const
const TSLAttributeValueOperation *	operationRHS () const

Protected Types
enum	ValueType { ValueTypeString , ValueTypeInteger , ValueTypeDouble }

Protected Member Functions
TSLAttributeValueOperation &	operator= (const TSLAttributeValueOperation &)
	Assignment operation.
	TSLAttributeValueOperation ()
	Constructor.
	TSLAttributeValueOperation (const char *value, bool caseSensitive, const TSLRenderingAttributes &rendering=TSLRenderingAttributes(), const char *featureName=NULL)
	TSLAttributeValueOperation (double value, const TSLRenderingAttributes &rendering=TSLRenderingAttributes(), const char *featureName=NULL)
	TSLAttributeValueOperation (int value, const TSLRenderingAttributes &rendering=TSLRenderingAttributes(), const char *featureName=NULL)
	TSLAttributeValueOperation (const TSLAttributeValueOperation &other)
	Copy constructor.
double	attributeValueAsDouble (const char *attributeValue) const
int	attributeValueAsInteger (const char *attributeValue) const
TSLSimpleString	valueAsString () const
ValueType	repurposeType (const char *attributeValue) const
ValueType	isNumber (const char *attributeValue) const
virtual TSLAttributeValueOperation *	clone () const =0

Protected Attributes
ValueType	m_valueType
TSLSimpleString	m_value_s
ValueType	m_value_s_also_n
TSLSimpleString	m_value_us
int	m_value_i
double	m_value_d
TSLSimpleString	m_operationName
TSLSimpleString	m_featureName
bool	m_caseSensitive
TSLRenderingAttributes	m_renderingAttributes
TSLAttributeValueOperation *	m_a
TSLAttributeValueOperation *	m_b

Member Enumeration Documentation

OperationType

enum TSLAttributeValueOperation::OperationType

Enumerator
OperationTypeAnd
OperationTypeElse
OperationTypeEqualTo
OperationTypeGreaterThan
OperationTypeGreaterThanOrEqualTo
OperationTypeLessThan
OperationTypeLessThanOrEqualTo
OperationTypeNot
OperationTypeNotEqualTo
OperationTypeOr

ValueType

enum TSLAttributeValueOperation::ValueType

protected

Enumerator
ValueTypeString
ValueTypeInteger
ValueTypeDouble

Constructor & Destructor Documentation

~TSLAttributeValueOperation()

virtual TSLAttributeValueOperation::~TSLAttributeValueOperation ( )

virtual

Destructor.

TSLAttributeValueOperation() [1/5]

TSLAttributeValueOperation::TSLAttributeValueOperation ( )

protected

Constructor.

TSLAttributeValueOperation() [2/5]

TSLAttributeValueOperation::TSLAttributeValueOperation ( const char * value, bool caseSensitive, const TSLRenderingAttributes & rendering = TSLRenderingAttributes(), const char * featureName = NULL )

protected

Constructor.

Parameters

value	The attribute value to compare against when performing this operation.
caseSensitive	Whether or not comparisons should be case-sensitive.
rendering	The rendering to apply to features that match this operation.
featureName	The name to assign to features that match this operation. If null an automatically generated feature name will be used.

TSLAttributeValueOperation() [3/5]

TSLAttributeValueOperation::TSLAttributeValueOperation ( double value, const TSLRenderingAttributes & rendering = TSLRenderingAttributes(), const char * featureName = NULL )

protected

Constructor.

Parameters

value	The attribute value to compare against when performing this operation.
rendering	The rendering to apply to features that match this operation.
featureName	The name to assign to features that match this operation. If null an automatically generated feature name will be used.

TSLAttributeValueOperation() [4/5]

TSLAttributeValueOperation::TSLAttributeValueOperation ( int value, const TSLRenderingAttributes & rendering = TSLRenderingAttributes(), const char * featureName = NULL )

protected

Constructor.

Parameters

value	The attribute value to compare against when performing this operation.
rendering	The rendering to apply to features that match this operation.
featureName	The name to assign to features that match this operation. If null an automatically generated feature name will be used.

TSLAttributeValueOperation() [5/5]

TSLAttributeValueOperation::TSLAttributeValueOperation ( const TSLAttributeValueOperation & other )

protected

Copy constructor.

Member Function Documentation

attributeValueAsDouble()

double TSLAttributeValueOperation::attributeValueAsDouble ( const char * attributeValue ) const

protected

attributeValueAsInteger()

int TSLAttributeValueOperation::attributeValueAsInteger ( const char * attributeValue ) const

protected

clone()

virtual TSLAttributeValueOperation * TSLAttributeValueOperation::clone ( ) const

protectedpure virtual

Implemented in TSLAttributeValueOperationAnd, TSLAttributeValueOperationElse, TSLAttributeValueOperationEqualTo, TSLAttributeValueOperationGreaterThan, TSLAttributeValueOperationGreaterThanOrEqualTo, TSLAttributeValueOperationLessThan, TSLAttributeValueOperationLessThanOrEqualTo, TSLAttributeValueOperationNot, TSLAttributeValueOperationNotEqualTo, and TSLAttributeValueOperationOr.

featureName()

const char * TSLAttributeValueOperation::featureName

(

)

const

Query the feature name for this operation.

If no feature name was specified when the operation was constructed this will return an automatically generated name, based on the type of operation and the value specified.

Returns

The feature name.

isNumber()

ValueType TSLAttributeValueOperation::isNumber ( const char * attributeValue ) const

protected

operationLHS()

const TSLAttributeValueOperation * TSLAttributeValueOperation::operationLHS

(

)

const

operationName()

const char * TSLAttributeValueOperation::operationName

(

)

const

Query the operation name for this operation.

This is a generic identifier for the operation. It is used in the TSLFeatureClassConfig::load() and TSLFeatureClassConfig::save() in the <Name> tag.

For example, the <Name> could be 'Small Pop', <PropertyName> of 'pop' and <Literal> of '50000'.

Returns

The operation name.

operationRHS()

const TSLAttributeValueOperation * TSLAttributeValueOperation::operationRHS

(

)

const

operationType()

virtual TSLSimpleString TSLAttributeValueOperation::operationType ( ) const

pure virtual

Return a string describing the operation.

Returns

A TSLSimpleString with the operation name.

Implemented in TSLAttributeValueOperationAnd, TSLAttributeValueOperationElse, TSLAttributeValueOperationEqualTo, TSLAttributeValueOperationGreaterThan, TSLAttributeValueOperationGreaterThanOrEqualTo, TSLAttributeValueOperationLessThan, TSLAttributeValueOperationLessThanOrEqualTo, TSLAttributeValueOperationNot, TSLAttributeValueOperationNotEqualTo, and TSLAttributeValueOperationOr.

operationValue()

virtual TSLSimpleString TSLAttributeValueOperation::operationValue ( ) const

pure virtual

Return a string with the value tested in the operation.

Returns

A TSLSimpleString with the value.

Implemented in TSLAttributeValueOperationAnd, TSLAttributeValueOperationElse, TSLAttributeValueOperationEqualTo, TSLAttributeValueOperationGreaterThan, TSLAttributeValueOperationGreaterThanOrEqualTo, TSLAttributeValueOperationLessThan, TSLAttributeValueOperationLessThanOrEqualTo, TSLAttributeValueOperationNot, TSLAttributeValueOperationNotEqualTo, and TSLAttributeValueOperationOr.

operator()()

virtual bool TSLAttributeValueOperation::operator() ( const char * attributeValue ) const

pure virtual

Evaluate the classification operation.

Parameters

attributeValue

The attribute value to test.

Returns

true if attributeValue matches this operation, false otherwise.

Implemented in TSLAttributeValueOperationAnd, TSLAttributeValueOperationElse, TSLAttributeValueOperationEqualTo, TSLAttributeValueOperationGreaterThan, TSLAttributeValueOperationGreaterThanOrEqualTo, TSLAttributeValueOperationLessThan, TSLAttributeValueOperationLessThanOrEqualTo, TSLAttributeValueOperationNot, TSLAttributeValueOperationNotEqualTo, and TSLAttributeValueOperationOr.

operator=()

TSLAttributeValueOperation & TSLAttributeValueOperation::operator= ( const TSLAttributeValueOperation & )

protected

Assignment operation.

rendering() [1/2]

TSLRenderingAttributes & TSLAttributeValueOperation::rendering

(

)

Access the rendering attributes for this operation.

These rendering attributes may be modified.

Returns

A reference to the operation's rendering attributes (TSLRenderingAttributes).

rendering() [2/2]

const TSLRenderingAttributes & TSLAttributeValueOperation::rendering

(

)

const

Query the rendering attributes for this operation.

Returns

The operation's rendering attributes (TSLRenderingAttributes).

repurposeType()

ValueType TSLAttributeValueOperation::repurposeType ( const char * attributeValue ) const

protected

setOperationName()

void TSLAttributeValueOperation::setOperationName

(

const char *

pOperationName

)

Set the operation name for this operation.

Parameters

pOperationName

The operation name.

type()

virtual TSLAttributeValueOperation::OperationType TSLAttributeValueOperation::type ( ) const

pure virtual

Query the type of the operation

Returns

The type of the TSLAttributeValueOperation

Implemented in TSLAttributeValueOperationAnd, TSLAttributeValueOperationElse, TSLAttributeValueOperationEqualTo, TSLAttributeValueOperationGreaterThan, TSLAttributeValueOperationGreaterThanOrEqualTo, TSLAttributeValueOperationLessThan, TSLAttributeValueOperationLessThanOrEqualTo, TSLAttributeValueOperationNot, TSLAttributeValueOperationNotEqualTo, and TSLAttributeValueOperationOr.

valueAsString()

TSLSimpleString TSLAttributeValueOperation::valueAsString ( ) const

protected

Member Data Documentation

m_a

TSLAttributeValueOperation* TSLAttributeValueOperation::m_a

protected

m_b

TSLAttributeValueOperation* TSLAttributeValueOperation::m_b

protected

m_caseSensitive

bool TSLAttributeValueOperation::m_caseSensitive

protected

m_featureName

TSLSimpleString TSLAttributeValueOperation::m_featureName

protected

m_operationName

TSLSimpleString TSLAttributeValueOperation::m_operationName

protected

m_renderingAttributes

TSLRenderingAttributes TSLAttributeValueOperation::m_renderingAttributes

protected

m_value_d

double TSLAttributeValueOperation::m_value_d

protected

m_value_i

int TSLAttributeValueOperation::m_value_i

protected

m_value_s

TSLSimpleString TSLAttributeValueOperation::m_value_s

protected

m_value_s_also_n

ValueType TSLAttributeValueOperation::m_value_s_also_n

protected

m_value_us

TSLSimpleString TSLAttributeValueOperation::m_value_us

protected

m_valueType

ValueType TSLAttributeValueOperation::m_valueType

protected
