TSLFeatureClassifier Class Reference

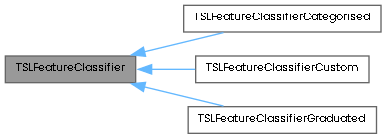

Inheritance diagram for TSLFeatureClassifier:

Detailed Description

The base class for feature classification definitions.

For an existing feature definition, each TSLFeatureClassifier defines a level of classification based on the attributes of a feature instance. Additional features may be created by combining the original feature definition, the classifier definitions, and the attribute values present in any processed data.

Public Types
enum	ClassifierType { ClassifierTypeCategorised , ClassifierTypeGraduated , ClassifierTypeCustom }
	The type of a classification definition. More...

Public Member Functions
void	destroy ()
	Delete this object.
TSLFeatureClassifier::ClassifierType	type () const
virtual TSLFeatureClassifier *	clone () const =0
virtual bool	getClassifiedFeatures (TSLFeature *rootFeature, unsigned int classificationLevel, bool caseSensitive) const =0
virtual bool	classifyFeature (const TSLMUGeometry *geometry, TSLRenderingAttributes &renderingAttribs, TSLSimpleString &childFeatureName) const =0

Member Enumeration Documentation

ClassifierType

enum TSLFeatureClassifier::ClassifierType

The type of a classification definition.

Enumerator
ClassifierTypeCategorised	A new child feature will be created for each unique attribute value. Equivalent to simple sub-classing in MapLink Studio.
ClassifierTypeGraduated	Child features will be created based on the specified ranges and attribute values. Equivalent to Range Based sub-classing in MapLink Studio.
ClassifierTypeCustom	Child features will be determined by application code.

Member Function Documentation

classifyFeature()

virtual bool TSLFeatureClassifier::classifyFeature ( const TSLMUGeometry * geometry, TSLRenderingAttributes & renderingAttribs, TSLSimpleString & childFeatureName ) const

pure virtual

Query the feature name for a given geometry

Parameters

geometry	The geometry to classify
renderingAttribs	The given TSLRenderingAttributes object will be set to the rendering attributes (if any) of the feature. Not all classifier definitions can specify rendering attributes.
childFeatureName	Returned name of the child feature for this geometry

Returns

'true' if childFeatureName was populated, false if the classification could not be determined.

Implemented in TSLFeatureClassifierCategorised, TSLFeatureClassifierCustom, and TSLFeatureClassifierGraduated.

clone()

virtual TSLFeatureClassifier * TSLFeatureClassifier::clone ( ) const

pure virtual

Clone this classification definition.

Returns

A clone of this object.

Implemented in TSLFeatureClassifierCategorised, TSLFeatureClassifierCustom, and TSLFeatureClassifierGraduated.

destroy()

void TSLFeatureClassifier::destroy

(

)

Delete this object.

getClassifiedFeatures()

virtual bool TSLFeatureClassifier::getClassifiedFeatures ( TSLFeature * rootFeature, unsigned int classificationLevel, bool caseSensitive ) const

pure virtual

Process the classification definition and add child features to the hierarchy.

This method is called during a 'preprocess' phase in order to determine the pre-defined feature classes that may be returned by this classifier.

Where the contents are solely dependent upon attribute values of a geometry instance, then this method should return false. Where the contents are wholly or partially defined within the classifier itself, such as a rule-based classifier, then the method should add additional entries to the rootFeature and return true.

Parameters

rootFeature	The top-level feature (TSLFeature) in the hierarchy the sub-classing should be applied to.
classificationLevel	The level of this classification, starting at 0.
caseSensitive	Whether the identification of existing classifications should be case sensitive or not.

Returns

true if any new features were created, false otherwise.

Implemented in TSLFeatureClassifierCategorised, TSLFeatureClassifierCustom, and TSLFeatureClassifierGraduated.

type()

TSLFeatureClassifier::ClassifierType TSLFeatureClassifier::type

(

)

const

Query the type of this classification definition.

Returns

The classification definition type as a TSLFeatureClassifier::ClassifierType enumeration value.
