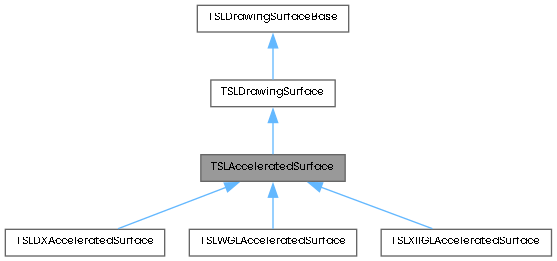

Inheritance diagram for TSLAcceleratedSurface:

[legend]

Detailed Description

Base class for the Accelerated Drawing surface.

The Accelerated Drawing Surfaces have been designed to allow rotation of raster data using either OpenGL or DirectX. This is achieved by rendering the buffered data layer information into tiles.

The tiles are then converted into textures and drawn using either OpenGL or DirectX.

The user should:

Create an instance of a derived TSLAcceleratedRenderControl.
Add this instance to a derived instance of this class.

The derived Accelerated Surface is responsible for creating an instance of TSLAcceleratedRender which is appropriate for the platform.

When a tile needs to be drawn, the surface will call via the TSLAcceleratedRenderControl the renderTile() method of a derived TSLAcceleratedRenderControl passing in a pointer to a TSLAcceleratedRenderer.

The client class will need to call renderTile() method on TSLAcceleratedRenderer (see class description).

Note that when using a TSLWMSDataLayer with the accelerated surface the user must ensure the setSynchronousLoading method has been called with the synchronousLoading parameter set to true.

Method Notes:

The method setDataLayerProps() controls the adding of maps to the background tile rendering thread.

If the TSLPropertyBuffered flag is set to true, the layer will be added to the background thread. If the value is set to false then the layer will not be added to the background thread and therefore not be drawn into the map tiles.

The Accelerated Custom Data Layer is never added to the background thread.

Performance Notes:

TSLObjectDataLayer's and TSLCustomDataLayer's should not be buffered with this surface as the tile caching will be defeated causing the tiles to be redraw for each frame.

The DirectX and OpenGL Surface supports intermixing normal drawing with varying performance impact.

If performance is the top requirement then use the TSLAcceleratedCustomDataLayer instead.

Look at the documentation for TSLAcceleratorConfiguration, TSLAcceleratedMTRenderer.

Limitations:

Rotate flags on symbols and text will not work as expected. The map tiles are drawn in the background thread unrotated.

The Interaction Modes magnifier mode does not work correctly with Accelerated Surfaces.

The number of tiles in the X-axis will need to be adjusted for Dynamic Arc maps.

The Accelerator Custom Data Layer is always drawn on top of the map tiles.

Runtime projected maps are not supported.

The Dynamics Object DataLayer instantiates the Display objects twice. Only one set is used for drawing.

Rotating a map/vector/raster data may introduce a slight degradation of image quality when compared to a standard 2D drawing surface. This is to do with the OpenGL/DirectX sampling of the pixels from the underlying textures. With the OpenGL versions you can reduce this effect by calling textureFilter Nearest with false on the TSLAcceleratorConfiguration.

TSLAcceleratedRenderer Limitations

Please see the TSLAcceleratedMTRenderControl and TSLAcceleratedBlockingRenderingControl

OpenGL Limitations:

While you can use wndResize to specify a smaller area to draw to, the whole window is given over to OpenGL. Therefore you will need to use an Accelerated Custom Data Layer to draw to the other parts of the window.

Double buffering of the drawing surface occurs by default and can not be disabled.

On Windows GDI rendering does not honour the alpha values of what is being drawn to. This affects patterned files where the transparent sections of the files becomes the background colour. This does not affect the X11 OpenGL variant.

OpenGL Requirements

Windows: OpenGL version 1.1, the extension GL_ARB_pixel_buffer_object will be used if present for faster GDI mixed drawing.

X11: OpenGL version 1.1, GLX version 1.3 and the extension GLX_EXT_texture_from_pixmap is required for Xlib mixed drawing.

Public Member Functions
virtual	~TSLAcceleratedSurface ()

virtual bool	addRenderControl (TSLAcceleratedRenderControl *renderControl)

bool	ADUsPerDU (double &xUnits, double &yUnits) const

bool	ADUToLatLon (const double xADU, const double yADU, double &lat, double &lon, bool local=false) const

bool	ADUToTMC (const double xADU, const double yADU, TSLTMC &xTMC, TSLTMC &yTMC) const

void	displayCentre (double &x, double &y) const

bool	displayScale (double &scaleX, double &scaleY) const

void	getADUExtent (double x1, double y1, double x2, double y2) const

bool	getConfiguration (TSLAcceleratorConfiguration &configuration) const

bool	latLonToADU (const double lat, const double lon, double &xADU, double &yADU, bool local=false) const

bool	setConfiguration (TSLAcceleratorConfiguration &configuration)

virtual void	setOption (TSLOptionEnum option, bool value)

double	TMCsPerADU () const

bool	TMCToADU (const TSLTMC xTMC, const TSLTMC yTMC, double &xADU, double &yADU) const

double	viewRotation () const

Public Member Functions inherited from TSLDrawingSurface
bool	clearAllRendering ()

bool	clearDynamicColours ()

virtual TSLDrawingSurface *	clone (bool copyUserData=false)=0

TSLRasterBuffer *	createRasterBuffer (unsigned int width, unsigned int height, TSLRasterBuffer::Format format, TSLRasterBuffer::FilterMode filterMode=TSLRasterBuffer::Linear)

bool	declutterIsVisible (const char feature_name, double resolution=0.0, const char layer_name=0) const

bool	drawDU (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2, bool clear, bool updateExtentOnly=false)

bool	drawUU (double x1, double y1, double x2, double y2, bool clear, bool updateExtentOnly=false)

bool	DUToLatLong (TSLDeviceUnits x, TSLDeviceUnits y, double latitude, double longitude, bool local=false, bool boundCheck=true) const

bool	DUToMU (TSLDeviceUnits x1, TSLDeviceUnits y1, double x2, double y2) const

bool	DUToTMC (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLTMC x2, TSLTMC y2) const

bool	DUToUU (TSLDeviceUnits x1, TSLDeviceUnits y1, double x2, double y2) const

TSLEntity *	findEntityDU (TSLDeviceUnits x, TSLDeviceUnits y, TSLDeviceUnits aperture, int depth, const char *feature_name=NULL)

TSLEntity *	findEntityUU (double x, double y, double aperture, int depth, const char *feature_name=NULL)

TSLEntity *	findSelectedEntityDU (TSLDeviceUnits x, TSLDeviceUnits y, TSLDeviceUnits aperture, int depth=-1, bool ignoreMapDataLayers=false)

TSLEntity *	findSelectedEntityUU (double x, double y, double aperture, int depth=-1, bool ignoreMapDataLayers=false)

bool	getColourIndices (int *indices, int num)

TSLDataLayer *	getCoordinateProvidingLayer ()

const TSLDataLayer *	getCoordinateProvidingLayer () const

bool	getDeclutterRange (const char featureName, double innerLimit, double outerLimit, const char dataLayerName=0, const char *detailLayerName=0)

bool	getDeviceCapabilities (int &horizontalSizeMM, int &verticalSizeMM, int &horizontalSizePixels, int &verticalSizePixels) const

bool	getDeviceCapabilities (TSLDeviceCapabilities &capabilities) const

void	getDUExtent (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2) const

bool	getFillStyleIndices (int *indices, int num)

bool	getFontStyleIndices (int *indices, int num)

bool	getLineStyleIndices (int *indices, int num)

void	getMUExtent (double x1, double y1, double x2, double y2) const

bool	getSymbolStyleIndices (int *indices, int num)

TSLDrawingSurfaceTiledBufferControl *	getTiledBufferController ()

void	getTMCExtent (TSLEnvelope &extent) const

void	getUUExtent (double x1, double y1, double x2, double y2) const

bool	getViewedLatLongRange (double latitude, double longitude, double *range, bool local=false, bool boundCheck=true) const

bool	latLongToDU (double latitude, double longitude, TSLDeviceUnits x, TSLDeviceUnits y, bool local=false) const

bool	latLongToMU (double latitude, double longitude, double x, double y, bool local=false) const

bool	latLongToTMC (double latitude, double longitude, TSLTMC x, TSLTMC y, bool local=false) const

bool	latLongToUU (double latitude, double longitude, double x, double y, bool local=false) const

bool	MUToDU (double x1, double y1, TSLDeviceUnits x2, TSLDeviceUnits y2) const

bool	MUToLatLong (double x, double y, double latitude, double longitude, bool local=false, bool boundCheck=true) const

bool	MUToTMC (double x1, double y1, TSLTMC x2, TSLTMC y2) const

bool	MUToUU (double x1, double y1, double x2, double y2) const

bool	pan (double x1, double y1, bool auto_redraw=true)

bool	pan (double x1, double y1, TSLDeviceUnits xDU, TSLDeviceUnits yDU, bool auto_redraw=true)

TSLMapQuery *	query (const char layerName, TSLTMC x1, TSLTMC y1, TSLTMC x2, TSLTMC y2, int depth=-1, const char feature_name=NULL) const

TSLMapQuery *	query (const char layerName, TSLTMC x1, TSLTMC y1, TSLTMC x2, TSLTMC y2, TSLSelector selector) const

bool	redraw ()

bool	reset (bool auto_redraw=true)

bool	resize (double x1, double y1, double x2, double y2, bool auto_redraw=true, bool keep_aspect=false)

bool	rotate (double angle)

double	rotation () const

bool	setDeclutterRange (const char featureName, double innerLimit, double outerLimit, const char dataLayerName=0, const char *detailLayerName=0)

bool	setDeviceCapabilities (const int horizontalSizeMM=0, const int verticalSizeMM=0, const int horizontalSizePixels=0, const int verticalSizePixels=0)

bool	setDeviceCapabilities (const TSLDeviceCapabilities &capabilities)

void	setRedrawCallback (TSLDrawingSurfaceDrawCallback *callback)

bool	setupDynamicColours (const char *filename)

bool	setViewedLatLongRange (double latitude, double longitude, double range, bool local=false, bool auto_redraw=true, bool keep_aspect=false)

void	TMCperDU (double &xr, double &yr)

double	TMCperUU ()

bool	TMCToDU (TSLTMC x1, TSLTMC y1, TSLDeviceUnits x2, TSLDeviceUnits y2) const

bool	TMCToLatLong (TSLTMC x, TSLTMC y, double latitude, double longitude, bool local=false, bool boundCheck=true) const

bool	TMCToMU (TSLTMC x1, TSLTMC y1, double x2, double y2) const

bool	TMCToUU (TSLTMC x1, TSLTMC y1, double x2, double y2) const

bool	updateEntityExtent (TSLEntity entity, const char layerName)

void	userUnitOrigin (double x_origin, double y_origin)

void	userUnitOrigin (TSLUUEnum origin_enum)

void	userUnits (double factor)

double	userUnits ()

bool	UUToDU (double x1, double y1, TSLDeviceUnits x2, TSLDeviceUnits y2) const

bool	UUToLatLong (double x, double y, double latitude, double longitude, bool local=false, bool boundCheck=true) const

bool	UUToMU (double x1, double y1, double x2, double y2) const

bool	UUToTMC (double x1, double y1, TSLTMC x2, TSLTMC y2) const

bool	wndResize (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2, bool auto_redraw=true, TSLResizeActionEnum action=TSLResizeActionNone)

bool	zoom (double percent, bool zoom_in, bool auto_redraw=true)

	TSLDrawingSurface ()

virtual	~TSLDrawingSurface ()

void	clearSymbolList ()

void	clearFontList ()

void	clearLineList ()

void	clearFillList ()

bool	removeFillStyle (TSLStyleID style)

bool	removeLineStyle (TSLStyleID style)

bool	removeSymbolStyle (TSLStyleID style)

bool	removeFontStyle (TSLStyleID style)

TSLStyleID	createFontID (const TSLSimpleString &name, TSLFontType meaningOfName, int fontWeight, bool italic=false, bool underline=false, bool antiAliased=false, const unsigned char *memoryBlock=NULL, TSLSize memoryBlockSize=0)

TSLStyleID	createStandardLineID (const unsigned char *pattern, TSLSize patternLength, int initialOffset, TSLLineScalingType scaleType)

TSLStyleID	createSymbolLineID (int symbolID, double size=0.0, TSLDimensionUnits sizeUnits=TSLDimensionUnitsUndefined, float rotation=0.0f, double anchorPointX=0.0, double anchorPointY=0.0, TSLDimensionUnits anchorPointUnits=TSLDimensionUnitsUndefined)

TSLStyleID	createStandardFillID (const unsigned char *pattern=NULL, TSLSize patternSizeInBytes=0, int patternXSize=0, int patternYSize=0)

TSLStyleID	createSymbolFillID (int symbolID, double size=0.0, TSLDimensionUnits sizeUnits=TSLDimensionUnitsUndefined, float rotation=0.0f, double anchorPointX=0.0, double anchorPointY=0.0, TSLDimensionUnits anchorPointUnits=TSLDimensionUnitsUndefined)

TSLStyleID	createSVGSymbolID (const TSLSimpleString &name, const unsigned char *memoryBlock=NULL, TSLSize memoryBlockSize=0)

TSLStyleID	createFontSymbolID (const TSLSimpleString &name, TSLFontType meaningOfName, const unsigned char *memoryBlock=NULL, TSLSize memoryBlockSize=0)

TSLStyleID	createRasterSymbolID (const TSLSimpleString &name, int xorigin, int yorigin, bool scaleable, const unsigned char *memoryBlock=NULL, TSLSize memoryBlockSize=0)

TSLStyleID	createSymbolIDFromSymbol (TSLStyleID symbolID, int numberofColourPairs, const int colourFrom, const int colourTo)

Public Member Functions inherited from TSLDrawingSurfaceBase
bool	addDataLayer (TSLDataLayer data_layer_interface, const char data_id)

bool	addDynamicRenderer (TSLDynamicRenderer renderer, TSLFeatureID featureID=-1, const char layerName=0)

bool	addFeatureRendering (const char *featureName, TSLFeatureID featureID)

void	attach (TSLDeviceContext handle)

void	attach (TSLWindowHandle handle)

void	attach (TSLDrawableHandle handle)

bool	bringInFrontof (const char move_data_layer, const char target_data_layer)

bool	bringToFront (const char *move_data_layer)

bool	clearAllDeclutterData (const char *layer_name=0)

void	clearAllDynamicRenderers ()

bool	clearBackgroundColour ()

bool	clearDeclutterData (const char feature_name, const char layer_name=0)

bool	clearDynamicRenderer (TSLFeatureID featureID=-1, const char *layerName=0)

bool	clearFeatureRendering (const char *featureName, TSLFeatureID featureID)

bool	clearFrame ()

bool	copyDeclutterData (const char src_feature_name, const char dest_feature_name, const char src_layer_name=0, const char dest_layer_name=0)

void	detach ()

void	detachAllDynamicRenderers ()

bool	detachDynamicRenderer (TSLFeatureID featureID=-1, const char *layerName=0)

const char *	featureClass (TSLFeatureID feature_id)

bool	forceLayer (const char data_id, const char detail_layer_name)

bool	getBackgroundColour (TSLStyleID *value)

bool	getColourValue (int colour, unsigned char &r, unsigned char &g, unsigned char &b)

TSLDataLayer *	getDataLayer (const char *data_id)

bool	getDataLayerInfo (int N, TSLDataLayer dataLayer, const char layerName) const

bool	getDataLayerProps (const char data_id, TSLPropertyEnum property_id, TSLPropertyValue old_value)

bool	getDeclutterStatus (const char feature_name, TSLDeclutterStatusResultEnum value, const char dataLayerName=0, const char detailLayerName=0)

bool	getDeclutterStatus (TSLFeatureID feature_id, TSLDeclutterStatusResultEnum value, const char dataLayerName, const char *detailLayerName=0)

TSLDynamicRenderer *	getDynamicRenderer (TSLFeatureID featureID=-1, const char *layerName=0)

bool	getFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributeInt attribute, int result) const

bool	getFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributeDouble attribute, double result) const

bool	getFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributeBool attribute, bool result) const

bool	getFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributes result) const

int	getNumDataLayers () const

bool	getOption (TSLOptionEnum option)

void	id (int id_)

int	id () const

bool	idleProcess ()

bool	loadDeclutter (const char *filename)

bool	loadRendering (const char *filename)

TSLPickResultSet *	pick (TSLDeviceUnits x, TSLDeviceUnits y, TSLDeviceUnits aperture, int depth, TSLPickSelector *selector=0)

TSLPickResultSet *	pick (const char data_id, TSLDeviceUnits x, TSLDeviceUnits y, TSLDeviceUnits aperture, int depth=-1, TSLPickSelector selector=0)

bool	queryActiveLayer (const char data_id, char detail_layer_name, int detail_layer_name_size)

bool	removeDataLayer (const char *data_id)

bool	saveDeclutter (const char *filename, TSLMapLinkVersion ver=TSL_CURRENT_MAPLINK_VERSION)

bool	saveRendering (const char *filename, TSLMapLinkVersion ver=TSL_CURRENT_MAPLINK_VERSION)

bool	sendToBack (const char *move_data_layer)

bool	sendToBackOf (const char move_data_layer, const char target_data_layer)

bool	setBackgroundColour (int value)

bool	setCoordinateProvidingLayer (const char *layer_name)

bool	setDataLayerProps (const char *data_id, TSLPropertyEnum property_id, TSLPropertyValue new_value)

bool	setDeclutterStatus (const char feature_name, TSLDeclutterStatusEnum value, const char dataLayerName=0, const char *detailLayerName=0)

bool	setDeclutterStatus (TSLFeatureID feature_id, TSLDeclutterStatusEnum value, const char dataLayerName=0, const char detailLayerName=0)

bool	setDeclutterStatusOnAllFeatures (TSLDeclutterStatusEnum value, const char dataLayerName=0, const char detailLayerName=0)

bool	setFeatureRendering (const char *featureName, TSLFeatureID featureID, TSLRenderingAttributeInt attribute, int value)

bool	setFeatureRendering (const char *featureName, TSLFeatureID featureID, TSLRenderingAttributeDouble attribute, double value)

bool	setFeatureRendering (const char *featureName, TSLFeatureID featureID, TSLRenderingAttributeBool attribute, bool value)

bool	setFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributes value)

bool	setFrame (int style, int colour, int thickness)

double	TMCperMU ()

TSLDrawingSurfaceTypeEnum	type () const

void	userWord (void *ptr) const

void *	userWord () const

bool	cloneDynamicRenderersFrom (const TSLDrawingSurfaceBase *otherSurface)

void	addDuplicateLayers (bool value)

virtual	~TSLDrawingSurfaceBase ()

Protected Member Functions
	TSLAcceleratedSurface ()

Protected Member Functions inherited from TSLDrawingSurfaceBase
	TSLDrawingSurfaceBase ()

Protected Attributes
TSLAcceleratedRenderer *	m_acceleratedRenderer

Protected Attributes inherited from TSLDrawingSurfaceBase
void *	m_classID

Additional Inherited Members
Static Public Member Functions inherited from TSLDrawingSurface
static void	cleanup ()

static bool	copy (TSLDrawingSurface copyTo, TSLDrawingSurface copyFrom, bool copyUserData=false)

static TSLStyleID	getIDOfNearestColour (int r, int g, int b)

static bool	loadStandardConfig (const char *path=0, bool delayLoadIncludes=false)

static bool	setupColours (const char *filename)

static bool	setupFillStyles (const char *filename, bool delayLoadIncludes=false)

static bool	setupFonts (const char *filename, bool delayLoadIncludes=false)

static bool	setupLineStyles (const char *filename, bool delayLoadIncludes=false)

static bool	setupSymbols (const char *filename, bool delayLoadIncludes=false)

static void	disableAntiAliasFonts ()

static void	enableAntiAliasFonts ()

Static Public Member Functions inherited from TSLDrawingSurfaceBase
static bool	addLoader (TSLFileLoader *loader)

static bool	addPathList (TSLPathList *path_list)

static bool	findFile (const char *filename, TSLSimpleString &foundPath)

static TSLFileLoader *	getLoader ()

Constructor & Destructor Documentation

◆ ~TSLAcceleratedSurface()

virtual TSLAcceleratedSurface::~TSLAcceleratedSurface ( )

virtual

Destructor.

◆ TSLAcceleratedSurface()

TSLAcceleratedSurface::TSLAcceleratedSurface ( )

protected

Constructor.

Member Function Documentation

◆ addRenderControl()

virtual bool TSLAcceleratedSurface::addRenderControl ( TSLAcceleratedRenderControl * renderControl )

virtual

The classes derived from TSLAcceleratedRenderControl provide the user with a way of controlling how the map tiles are generated.

By default there are two mechanism's provided:

Blocking, where by each call to render a map tile will block until the tile has been drawn (TSLAcceleratedBlockingRenderControl).
Multi-threaded, where by a request is made and the tile is drawn in a separate thread (TSLAcceleratedMTRenderControl).

Parameters

renderControl Chosen render control mechanism.

Returns: true if all is ok, false otherwise.

Note: The TSLAcceleratedSurface will take ownership the TSLAcceleratedRender Control.

◆ ADUsPerDU()

bool TSLAcceleratedSurface::ADUsPerDU	(	double &	xUnits,
		double &	yUnits ) const

Returns the number of Accelerator Device Units (ADU) per Device Units (DU, pixels).

Parameters

xUnits	number of ADU's per DU along the x-axis
yUnits	number of ADU's per DU along the y-axis

Returns: True if the values are set, otherwise false.

◆ ADUToLatLon()

bool TSLAcceleratedSurface::ADUToLatLon	(	const double	xADU,
		const double	yADU,
		double &	lat,
		double &	lon,
		bool	local = false ) const

Convert Accelerator Device Units to Latitude and Longitude.

These units are OpenGL device units not pixels.

Parameters

xADU	x axis device unit to convert
yADU	y axis device unit to convert
lat	converted latitude
lon	converted longitude.
local	Indicates whether the lat/long co-ordinate is in WGS84 or the local datum.

Returns: true on success, false otherwise.

◆ ADUToTMC()

bool TSLAcceleratedSurface::ADUToTMC	(	const double	xADU,
		const double	yADU,
		TSLTMC &	xTMC,
		TSLTMC &	yTMC ) const

Returns the TMC position of ADU point.

Parameters

xADU	ADU x position
yADU	ADU y position
xTMC	returned TMC x position
yTMC	returned TMC y position

Returns: true if the conversion was ok.

◆ displayCentre()

void TSLAcceleratedSurface::displayCentre	(	double &	x,
		double &	y ) const

Returns the center of the display in Map Units.

◆ displayScale()

bool TSLAcceleratedSurface::displayScale	(	double &	scaleX,
		double &	scaleY ) const

Returns the OpenGL scale factors applied.

This method should be used if you need to draw an object which is not distorted by the dynamic arc projection.

Parameters

scaleX	Scale factor for the x-axis
scaleY	Scale factor for the y-axis.
Returns

True if a scale is applied, false otherwise.

◆ getADUExtent()

void TSLAcceleratedSurface::getADUExtent	(	double *	x1,
		double *	y1,
		double *	x2,
		double *	y2 ) const

Query extent of data on TSLDrawingSurface.

This method allows the user to query the extent of the MapLink map data currently displayed in terms of ADU units, ignoring any rotation that has been applied to the drawing surface.

Note: If the user application maintains such extent, this method should be called to refresh them after any operation applied on the TSLDrawingSurface which will affect the area of Maplink map data displayed.

Parameters

(x1,y1)	Storage for bottom left co-ordinate of the extent in ADU units.
(x2,y2)	Storage for top right co-ordinate of the extent in ADU units.

◆ getConfiguration()

bool TSLAcceleratedSurface::getConfiguration ( TSLAcceleratorConfiguration & configuration ) const

Gets the Texture tile rendering parameters.

Allows the user to query the current settings.

Parameters

configuration Settings returned.

Returns: True if the settings were obtained, False otherwise.

◆ latLonToADU()

bool TSLAcceleratedSurface::latLonToADU	(	const double	lat,
		const double	lon,
		double &	xADU,
		double &	yADU,
		bool	local = false ) const

Convert latitude and longitude to accelerator device units.

These units are OpenGL device units not pixels.

The points returned by latLonToADU are un-rotated points.

Parameters

lat	latitude to convert.
lon	longitude to convert.
xADU	x axis device unit position.
yADU	y axis device unit position.
local	Indicates whether the lat/long co-ordinate is in WGS84 or the local datum.

Returns: true on success, false otherwise.

◆ setConfiguration()

bool TSLAcceleratedSurface::setConfiguration ( TSLAcceleratorConfiguration & configuration )

Sets the Texture tile rendering parameters.

Allows the user to tune the parameters used to generate the texture tiles to suit the application and graphics card.

The settings will only affect tiles created after the call to this method. The current set of tiles will be invalidated and a redraw will need to be done.

Parameters

configuration Settings to use.

Returns: True if the settings were applied, False otherwise.

◆ setOption()

virtual void TSLAcceleratedSurface::setOption	(	TSLOptionEnum	option,
		bool	value )

virtual

Set option bitfield.

Parameters

option	Enumeration value specifying option to query
value	New value for option flag.

Reimplemented from TSLDrawingSurfaceBase.

◆ TMCsPerADU()

double TSLAcceleratedSurface::TMCsPerADU ( ) const

Returns the number of TMCs per ADU for this drawing surface.

◆ TMCToADU()

bool TSLAcceleratedSurface::TMCToADU	(	const TSLTMC	xTMC,
		const TSLTMC	yTMC,
		double &	xADU,
		double &	yADU ) const

Returns the ADU position of a TMC point.

Parameters

xTMC	TMC x position
yTMC	TMC y position
xADU	returned ADU x position
yADU	returned ADU y position

Returns: true if the conversion was ok.

◆ viewRotation()

double TSLAcceleratedSurface::viewRotation ( ) const

Returns the 2D view rotation in degrees.

Member Data Documentation

◆ m_acceleratedRenderer

TSLAcceleratedRenderer* TSLAcceleratedSurface::m_acceleratedRenderer

protected

Detailed Description

The user should:

Method Notes:

Performance Notes:

Limitations:

TSLAcceleratedRenderer Limitations

OpenGL Limitations:

OpenGL Requirements

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ ~TSLAcceleratedSurface()

◆ TSLAcceleratedSurface()

Member Function Documentation

◆ addRenderControl()

◆ ADUsPerDU()

◆ ADUToLatLon()

◆ ADUToTMC()

◆ displayCentre()

◆ displayScale()

◆ getADUExtent()

◆ getConfiguration()

◆ latLonToADU()

◆ setConfiguration()

◆ setOption()

◆ TMCsPerADU()

◆ TMCToADU()

◆ viewRotation()

Member Data Documentation

◆ m_acceleratedRenderer
