TSLTrackSymbol Class Reference

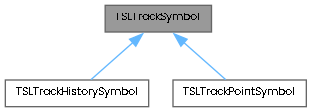

Inheritance diagram for TSLTrackSymbol:

Detailed Description

The TSLTrackSymbol base class.

A TSLTrackSymbol defines the rendering for TSLTrack objects. A Track may contain multiple symbols, which are displayed at different view resolutions.

This class is reference counted internally to allow objects to be shared within the track manager SDK

• Ownership of this object will never be transferred from the application to MapLink
• The application must call release() in order to relinquish its ownership, even if the object has been passed to another

A single TSLTrackSymbol may be used by multiple TSLTrack instances at a time. In this case the visualisation will be shared between the tracks, which will each hold a reference to the TSLTrackSymbol.

Public Types
enum	HeadingIndicatorStyle { HeadingIndicatorNone , HeadingIndicatorSimple , HeadingIndicatorFilled }
	Specifies the type of heading indicator to display. More...
enum	Type { PointSymbol , HistorySymbol }
	Specifies the type of a TSLTrackSymbol. More...
enum	SelectionBehaviour { SelectionBehaviourAdditional , SelectionBehaviourReplace }

Public Member Functions
virtual TSLTrackSymbol *	clone () const =0
	Create a clone of this symbol.
void	release ()
double	maximumResolution () const
void	maximumResolution (double res)
virtual TSLTrackSymbol::Type	type () const =0
	Query the type of this symbol.
void	headingIndicatorLength (double length, TSLDimensionUnits unit)
void	headingIndicatorVisible (bool visibility)
double	headingIndicatorLength () const
TSLDimensionUnits	headingIndicatorLengthUnit () const
bool	headingIndicatorVisible () const

Protected Member Functions
	TSLTrackSymbol ()
	TSLTrackSymbol (const TSLTrackSymbol *other)
	TSLTrackSymbol (const TSLTrackSymbol &other)
TSLTrackSymbol &	operator= (const TSLTrackSymbol &other)
virtual	~TSLTrackSymbol ()
void	operator delete (void *ptr)

Member Enumeration Documentation

HeadingIndicatorStyle

enum TSLTrackSymbol::HeadingIndicatorStyle

Specifies the type of heading indicator to display.

Enumerator
HeadingIndicatorNone	Heading indicator will not be displayed.
HeadingIndicatorSimple	Heading indicator will be displayed as an arrow, with an unfilled arrowhead.
HeadingIndicatorFilled	Heading indicator will be displayed as an arrow, with a filled arrowhead.

SelectionBehaviour

enum TSLTrackSymbol::SelectionBehaviour

Specifies how the selection symbol of the TSLTrackSymbol should be displayed

The selection symbol will only be displayed if the track has been selected

See also

TSLTrack::selected

TSLTrackDisplayManager::selectTrack

Enumerator
SelectionBehaviourAdditional	The track will be displayed and the selection symbol will also be displayed (on top)
SelectionBehaviourReplace	The selection symbol will be displayed instead of the track.

Type

enum TSLTrackSymbol::Type

Specifies the type of a TSLTrackSymbol.

Enumerator
PointSymbol	The symbol is a TSLTrackPointSymbol.
HistorySymbol	The symbol is a TSLTrackHistorySymbol.

Constructor & Destructor Documentation

TSLTrackSymbol() [1/3]

TSLTrackSymbol::TSLTrackSymbol ( )

protected

TSLTrackSymbol() [2/3]

TSLTrackSymbol::TSLTrackSymbol ( const TSLTrackSymbol * other )

protected

TSLTrackSymbol() [3/3]

TSLTrackSymbol::TSLTrackSymbol ( const TSLTrackSymbol & other )

protected

~TSLTrackSymbol()

virtual TSLTrackSymbol::~TSLTrackSymbol ( )

protectedvirtual

Member Function Documentation

clone()

virtual TSLTrackSymbol * TSLTrackSymbol::clone ( ) const

pure virtual

Create a clone of this symbol.

Implemented in TSLTrackHistorySymbol, and TSLTrackPointSymbol.

headingIndicatorLength() [1/2]

double TSLTrackSymbol::headingIndicatorLength

(

)

const

Query the symbol's heading indicator length.

Returns

The length of the heading indicator.

headingIndicatorLength() [2/2]

void TSLTrackSymbol::headingIndicatorLength	(	double	length,
		TSLDimensionUnits	unit )

Set the length of the heading indicator

Parameters

length	Length of the heading indicator.
unit	Unts of the heading indicator length.

headingIndicatorLengthUnit()

TSLDimensionUnits TSLTrackSymbol::headingIndicatorLengthUnit

(

)

const

Query the symbol's heading indicator length unit.

Returns

The Units of the heading indicator's length.

headingIndicatorVisible() [1/2]

bool TSLTrackSymbol::headingIndicatorVisible

(

)

const

Query the symbol's heading indicators visibility.

Returns

The visibility of the heading indicator.

headingIndicatorVisible() [2/2]

void TSLTrackSymbol::headingIndicatorVisible

(

bool

visibility

)

Set the visibility of the heading indicator

Parameters

visibility

The visibility of this symbol's heading indicator

maximumResolution() [1/2]

double TSLTrackSymbol::maximumResolution

(

)

const

Query the symbol's maximum display resolution, in Map Units per pixel.

Returns

The maximum resolution this symbol will be displayed at.

maximumResolution() [2/2]

void TSLTrackSymbol::maximumResolution

(

double

res

)

Set the maximum display resolution this symbol will be drawn at, in map units per pixel.

Parameters

res	The maximum resolution to display this symbol at.

operator delete()

void TSLTrackSymbol::operator delete ( void * ptr )

protected

operator=()

TSLTrackSymbol & TSLTrackSymbol::operator= ( const TSLTrackSymbol & other )

protected

release()

void TSLTrackSymbol::release

(

)

Release ownership of this object

The object will be deleted once the application has called release and any references held by MapLink have been released

type()

virtual TSLTrackSymbol::Type TSLTrackSymbol::type ( ) const

pure virtual

Query the type of this symbol.

Implemented in TSLTrackHistorySymbol, and TSLTrackPointSymbol.
