TSLInteractionModeDisplay Class Reference

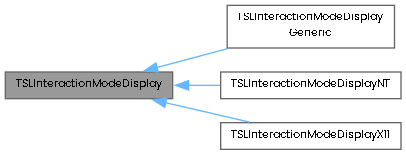

Inheritance diagram for TSLInteractionModeDisplay:

Detailed Description

This class provides useful utility functions for the modes. It should not be created by an application.

An instance of this class will be made available in the 'm_display' protected member attribute of the TSLInteractionMode class.

Public Member Functions
virtual	~TSLInteractionModeDisplay ()
virtual void	bufferingOff ()=0
virtual void	bufferingOn ()=0
virtual void	captureMouse ()=0
void	clearClipRectangle ()
void	clearEchoLine ()
void	clearEchoRectangle ()
virtual TSLInteractionModeDisplay *	clone (bool copyUserData=false)=0
virtual void	drawEchoLine ()=0
virtual void	drawEchoRectangle ()=0
virtual void	onSize (TSLDeviceUnits cx, TSLDeviceUnits cy)=0
virtual void	releaseMouse ()=0
void	resetMode (TSLButtonType button, TSLDeviceUnits xDU, TSLDeviceUnits yDU)
void	setClipRectangle (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2)
void	setEchoLine (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2)
void	setEchoRectangle (TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2)
void	viewChanged (bool addToViewStack)
TSLDrawingSurface *	drawingSurface ()

Protected Member Functions
	TSLInteractionModeDisplay (TSLDrawingSurface *ds, TSLInteractionModeManager *manager)
virtual void	drawMagnifierToBuffer (TSLDrawableHandle buffer, TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2, TSLDeviceUnits width, TSLDeviceUnits height, bool restoreBackground, TSLDeviceUnits boundaryThickess, int boundaryRed, int boundaryGreen, int boundaryBlue)=0
virtual void	drawMagnifierToBuffer (TSLDeviceContext buffer, TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2, TSLDeviceUnits width, TSLDeviceUnits height, bool restoreBackground, TSLDeviceUnits boundaryThickess, int boundaryRed, int boundaryGreen, int boundaryBlue)=0
virtual void	magnify (TSLMagnifyingGlass *magnifier, bool restoreBackground)=0
virtual void	setupBackgroundBuffer (TSLDeviceUnits width, TSLDeviceUnits height)=0

Protected Attributes
TSLDeviceUnits	m_x1
TSLDeviceUnits	m_y1
TSLDeviceUnits	m_x2
TSLDeviceUnits	m_y2
bool	m_drawRect
bool	m_drawLine
TSLDrawingSurface *	m_drawingSurface
TSLEnvelope	m_clipRectangle
bool	m_clip
TSLInteractionModeManager *	m_manager

Constructor & Destructor Documentation

~TSLInteractionModeDisplay()

virtual TSLInteractionModeDisplay::~TSLInteractionModeDisplay ( )

virtual

Destructor for Interaction Mode display

TSLInteractionModeDisplay()

TSLInteractionModeDisplay::TSLInteractionModeDisplay ( TSLDrawingSurface * ds, TSLInteractionModeManager * manager )

protected

Protected constructor to prevent instantiation of base class.

Member Function Documentation

bufferingOff()

virtual void TSLInteractionModeDisplay::bufferingOff ( )

pure virtual

Disables internal buffers - used by magnify mode.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

bufferingOn()

virtual void TSLInteractionModeDisplay::bufferingOn ( )

pure virtual

Enables internal buffers - used by magnify mode to avoid flickering.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

captureMouse()

virtual void TSLInteractionModeDisplay::captureMouse ( )

pure virtual

Captures the mouse to avoid losing release events if the mouse goes out of the window. Modes using this functionality must remember to release the mouse on the release event, or on deactivation.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

clearClipRectangle()

void TSLInteractionModeDisplay::clearClipRectangle

(

)

Clears the current clip rectangle set using the setClipRectangle method.

clearEchoLine()

void TSLInteractionModeDisplay::clearEchoLine

(

)

Clears any echo line that may be drawn. Echo lines are drawn in XOR mode.

clearEchoRectangle()

void TSLInteractionModeDisplay::clearEchoRectangle

(

)

Clears any echo rectangle that may be drawn. Echo rectangles are drawn in XOR mode. If a mode is using echo styles, then this should be called in the onDraw method of the mode.

clone()

virtual TSLInteractionModeDisplay * TSLInteractionModeDisplay::clone ( bool copyUserData = false )

pure virtual

Clones this display, including the drawing surface and attached data layers. This is used by the magnifier.

Parameters

copyUserData

If true, the userID and userWord will be copied to the new surface.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

drawEchoLine()

virtual void TSLInteractionModeDisplay::drawEchoLine ( )

pure virtual

Draw any echo line that may be set. Echo lines are drawn in XOR mode. If a mode is using echo styles, then this should be called in the onDraw method of the mode.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

drawEchoRectangle()

virtual void TSLInteractionModeDisplay::drawEchoRectangle ( )

pure virtual

Draw any echo rectangle that may be set. Echo rectangles are drawn in XOR mode.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

drawingSurface()

TSLDrawingSurface * TSLInteractionModeDisplay::drawingSurface ( )

inline

Query the drawing surface that this display is attached to.

drawMagnifierToBuffer() [1/2]

virtual void TSLInteractionModeDisplay::drawMagnifierToBuffer ( TSLDeviceContext buffer, TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2, TSLDeviceUnits width, TSLDeviceUnits height, bool restoreBackground, TSLDeviceUnits boundaryThickess, int boundaryRed, int boundaryGreen, int boundaryBlue )

protectedpure virtual

Internal method used to render the magnifying glass into the back buffer.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

drawMagnifierToBuffer() [2/2]

virtual void TSLInteractionModeDisplay::drawMagnifierToBuffer ( TSLDrawableHandle buffer, TSLDeviceUnits x1, TSLDeviceUnits y1, TSLDeviceUnits x2, TSLDeviceUnits y2, TSLDeviceUnits width, TSLDeviceUnits height, bool restoreBackground, TSLDeviceUnits boundaryThickess, int boundaryRed, int boundaryGreen, int boundaryBlue )

protectedpure virtual

Internal method used to render the magnifying glass into the back buffer.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

magnify()

virtual void TSLInteractionModeDisplay::magnify ( TSLMagnifyingGlass * magnifier, bool restoreBackground )

protectedpure virtual

Internal method used to render the magnifying glass into the main window.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

onSize()

virtual void TSLInteractionModeDisplay::onSize ( TSLDeviceUnits cx, TSLDeviceUnits cy )

pure virtual

onSize handler - used to resize any buffers that are used. If a mode is using buffering, then it must forward the size event to the display.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

releaseMouse()

virtual void TSLInteractionModeDisplay::releaseMouse ( )

pure virtual

Release the mouse capture. Modes using this functionality must remember to release the mouse on the release event, or on deactivation.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

resetMode()

void TSLInteractionModeDisplay::resetMode	(	TSLButtonType	button,
		TSLDeviceUnits	xDU,
		TSLDeviceUnits	yDU )

The mode should call this to request a reset back to the default mode.

Parameters

button	If the reset was triggered by a button press, this should be the button type. Pass TSLButtonNone if the reset is occurring for some other reason.
(xDU,yDU)	Position of button press that triggered the reset. Pass 0,0 of the reset is occurring for some other reason.

setClipRectangle()

void TSLInteractionModeDisplay::setClipRectangle	(	TSLDeviceUnits	x1,
		TSLDeviceUnits	y1,
		TSLDeviceUnits	x2,
		TSLDeviceUnits	y2 )

Sets a clip rectangle on the display for when drawing the echo rectangle and echo line.

Use the clearClipRectangle to remove the current clip rectangle.

Parameters

x1,y1	The top left coordinate of the clip rectangle
x2,y2	The bottom right coordinate of the clip rectangle.

setEchoLine()

void TSLInteractionModeDisplay::setEchoLine	(	TSLDeviceUnits	x1,
		TSLDeviceUnits	y1,
		TSLDeviceUnits	x2,
		TSLDeviceUnits	y2 )

Set a line to be drawn for echo. The line is drawn in XOR mode.

Parameters

(x1,y1)	Start of echo line in device units.
(x2,y2)	End of echo line in device units.

setEchoRectangle()

void TSLInteractionModeDisplay::setEchoRectangle	(	TSLDeviceUnits	x1,
		TSLDeviceUnits	y1,
		TSLDeviceUnits	x2,
		TSLDeviceUnits	y2 )

Set a line to be drawn for echo. The line is drawn in XOR mode.

Parameters

(x1,y1)	Bottom left of echo rectangle in device units.
(x2,y2)	Top right of echo rectangle in device units.

setupBackgroundBuffer()

virtual void TSLInteractionModeDisplay::setupBackgroundBuffer ( TSLDeviceUnits width, TSLDeviceUnits height )

protectedpure virtual

Internal method used to by the magnifying glass.

Implemented in TSLInteractionModeDisplayGeneric, TSLInteractionModeDisplayNT, and TSLInteractionModeDisplayX11.

viewChanged()

void TSLInteractionModeDisplay::viewChanged

(

bool

addToViewStack

)

The mode should call this method to indicate that the view has changed. This will be passed on to the application request handler.

Parameters

addToViewStack

Flag to indicate whether the current view extent should be added to the view stack.

Member Data Documentation

m_clip

bool TSLInteractionModeDisplay::m_clip

protected

m_clipRectangle

TSLEnvelope TSLInteractionModeDisplay::m_clipRectangle

protected

m_drawingSurface

TSLDrawingSurface* TSLInteractionModeDisplay::m_drawingSurface

protected

m_drawLine

bool TSLInteractionModeDisplay::m_drawLine

protected

m_drawRect

bool TSLInteractionModeDisplay::m_drawRect

protected

m_manager

TSLInteractionModeManager* TSLInteractionModeDisplay::m_manager

protected

m_x1

TSLDeviceUnits TSLInteractionModeDisplay::m_x1

protected

m_x2

TSLDeviceUnits TSLInteractionModeDisplay::m_x2

protected

m_y1

TSLDeviceUnits TSLInteractionModeDisplay::m_y1

protected

m_y2

TSLDeviceUnits TSLInteractionModeDisplay::m_y2

protected
