Detailed Description

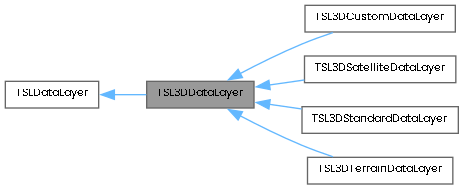

Abstract base class for TSL3DDataLayer objects.

TSL3DDataLayer is an abstract class and so cannot be instantiated directly. Clients should instantiate one of its derived classes (e.g. TSL3DMapData Layer).

Data layers should be destroyed by calling the destroy method rather than deleting them.

Deprecated: Deprecated as of MapLink 11.1. Advised to use MapLink Earth SDK instead.

Public Member Functions
TSL3DBoundingBox	get3DExtent () const

TSL3DMapQuery *	query (const TSL3DBoundingBox &extent, TSL3DSelector *selector, int drawingSurfaceID=-1) const

Public Member Functions inherited from TSLDataLayer
void	addDrawingCallback (TSLDataLayerDrawingCallback *drawingCallback)

bool	addFeatureRendering (const char *featureName, TSLFeatureID featureID)

bool	addLoader (TSLFileLoader loader, TSLLoaderAppCallback callback, void arg, TSLAllLoadedCallback allLoadedCallback=0, void *arg2=0)

bool	addPathList (const TSLPathList *path_list)

void	cancelFlashback ()

bool	clearFeatureRendering (const char *featureName, TSLFeatureID featureID)

TSLDataHandler *	createDataHandler (const char *config_file=0)

TSLHistoryVersion	currentVersion () const

TSLDataHandler *	dataHandler ()

const TSLDataHandler *	dataHandler () const

void	destroy ()

bool	entityIsVisible (const TSLEntity entity, const TSLDrawingSurface drawingSurface) const

const TSLFeatureClassList *	featureList () const

const TSLFeatureClassList *	featureList (const char *detailLayerName) const

bool	fileModificationTime (const char *filename, TSLTimeType &lastModificationTime)

TSLEntity *	findEntity (TSLTMC x, TSLTMC y, TSLTMC aperture, int depth, const char *featureName=0, int drawingSurfaceID=-1)

bool	findFile (const char *filename, TSLSimpleString &foundPath) const

void	flashbackToTimestamp (TSLHistoryTimestamp timestamp, TSLLayerArchiveCallback archiveCallback, void *arg=0)

void	flashbackToTimestamp (TSLHistoryTimestamp timestamp, TSLLayerArchiveTileCallback archiveTileCallback, void *arg=0)

void	flashbackToVersion (TSLHistoryVersion version, TSLLayerArchiveCallback archiveCallback, void *arg=0)

void	flashbackToVersion (TSLHistoryVersion version, TSLLayerArchiveTileCallback archiveTileCallback, void *arg=0)

bool	getActiveLayerName (const TSLEnvelope &extent, double screenResolution, TSLSimpleString &activeLayerName) const

TSLEntityIterator *	getEntityIterator (const char detailLayer, TSLSelector selector=NULL, TSLEnvelope *extent=NULL, bool splitOptimisedPrimitives=true)

bool	getFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributeInt attribute, int result) const

bool	getFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributeDouble attribute, double result) const

bool	getFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributeBool attribute, bool result) const

bool	getFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributes result) const

TSLFileLoader *	getLoader ()

bool	getMUExtent (double x1, double y1, double x2, double y2, int drawingSurfaceID=-1) const

bool	getTMCExtent (TSLTMC x1, TSLTMC y1, TSLTMC x2, TSLTMC y2, int drawingSurfaceID=-1) const

bool	getUUExtent (double x1, double y1, double x2, double y2, const TSLDrawingSurface *drawingSurface) const

bool	importHistory (TSLHistoryVersion mapVersion, TSLHistoryTimestamp timestamp, TSLHistoryImportSet *historySet)

bool	latLongToTMC (double latitude, double longitude, TSLTMC x, TSLTMC y, bool local=false) const

bool	latLongToTMC (int num, double latitudes, double longitudes, TSLTMC xs, TSLTMC ys, bool local=false) const

TSLDataLayerTypeEnum	layerType () const

bool	loadData (const char *filename)

bool	loadRendering (const char *filename)

void	notifyChanged (bool changed=true)

TSLMapQuery *	query (TSLTMC x1, TSLTMC y1, TSLTMC x2, TSLTMC y2, int depth=-1, const char *featureName=NULL, int drawingSurfaceID=-1) const

TSLMapQuery *	query (TSLTMC x1, TSLTMC y1, TSLTMC x2, TSLTMC y2, TSLSelector *selector, int drawingSurfaceID=-1) const

const TSLCoordinateSystem *	getCoordinateSystem () const

bool	queryVersionHistory (const TSLEnvelope &extent, TSLVersionHistorySet &history)

void	refreshFlashback ()

bool	removeData ()

void	releaseResources (int surfaceID)

bool	saveRendering (const char *filename, TSLMapLinkVersion ver=TSL_CURRENT_MAPLINK_VERSION)

bool	setCoordinateSystem (const TSLCoordinateSystem *coordinateSystem)

bool	setFeatureRendering (const char *featureName, TSLFeatureID featureID, TSLRenderingAttributeInt attribute, int value)

bool	setFeatureRendering (const char *featureName, TSLFeatureID featureID, TSLRenderingAttributeDouble attribute, double value)

bool	setFeatureRendering (const char *featureName, TSLFeatureID featureID, TSLRenderingAttributeBool attribute, bool value)

bool	setFeatureRendering (const char featureName, TSLFeatureID featureID, TSLRenderingAttributes value)

bool	TMCToLatLong (TSLTMC x, TSLTMC y, double latitude, double longitude, bool local=false, bool boundCheck=true) const

bool	TMCToLatLong (int num, TSLTMC xs, TSLTMC ys, double latitudes, double longitudes, bool local=false) const

const TSLVersionHistorySet *	versionHistory () const

Protected Member Functions
	TSL3DDataLayer ()

	~TSL3DDataLayer ()

Constructor & Destructor Documentation

◆ TSL3DDataLayer()

TSL3DDataLayer::TSL3DDataLayer ( )

protected

Protected constructor, destructor to prevent user instantiation of this class

◆ ~TSL3DDataLayer()

TSL3DDataLayer::~TSL3DDataLayer ( )

protected

Member Function Documentation

◆ get3DExtent()

TSL3DBoundingBox TSL3DDataLayer::get3DExtent ( ) const

Query method to return 3D Bounding Box of the data layers contents.

Returns 3D Bounding Box.

◆ query()

TSL3DMapQuery * TSL3DDataLayer::query	(	const TSL3DBoundingBox &	extent,
		TSL3DSelector *	selector,
		int	drawingSurfaceID = -1 ) const

Query for entities in extent based on a client-supplied search criteria.

This method requests the TSL3DDataLayer to return a TSL3DMapQuery object which allows the user to access the data tiles required for the display of the specified area. The TSL3DMapQuery for a TSL3DDataLayer is only valid for immediate use since the data tiles to which they refer may be removed from memory if the cache is flushed.

The client must specify the selection policy through a suitable TSL3DSelector-derived object. This may analyse both 2D and 3D entities.

Parameters

extent	The 3D bounding box in which to query. Any 2D or 3D entity whose bounding box intersects that specified will be passed to the selector object for further analysis.
selector	pointer to a TSL3DSelector-derived object which specifies the selection criteria.
drawingSurfaceID	ID of drawing surface to use when querying entity extents. This is required when multiple drawingSurfaces are in use and when non-default drawing surface ID's have been used. If the default is used then the extents of symbol and text objects may be defaulted to their origin point. This also has an effect on groups containing such entities.
